2026 Midwest Automotive Designs Passage MD2 Standard Blue Grey
Get in Touch
Info
Industry
RV
Make
Midwest Automotive Designs
Model

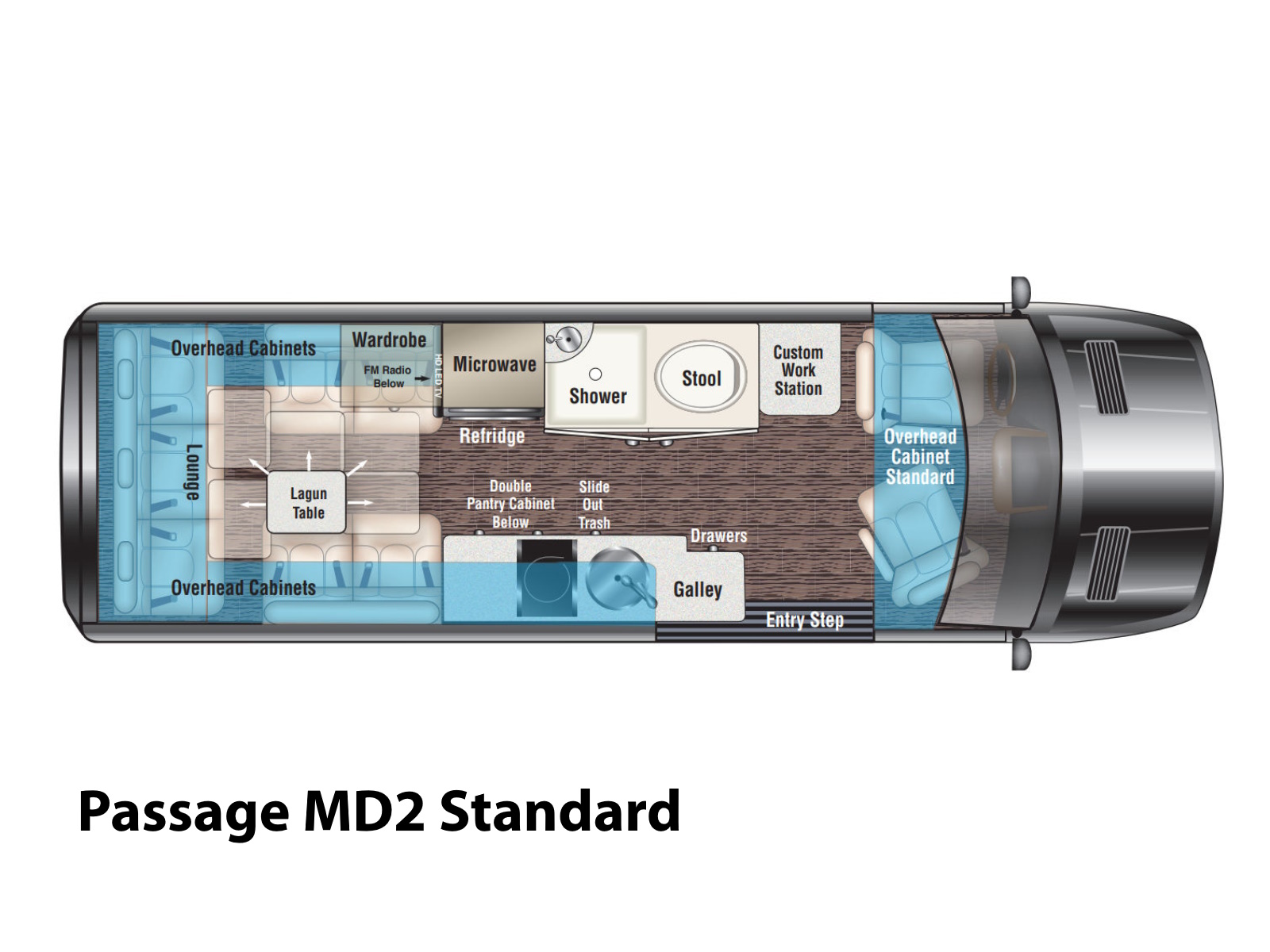

Passage MD2 Standard
Trim
Blue Grey
Year
2026
MSRP
N/A
Category
Motorhome
Subcategory
Class B
Specs
Warranty
Limited 3 years / 36,000 miles
Fuel Type
Diesel
Torque
332 lb-ft at 1,600RPM
Fuel Capacity
24.5 gal
Wheelbase
170 in Extended
GVWR
11,030 lbs
Axle Wt (GAWR) - Front
4,410 lbs
Axle Wt (GAWR) - Rear
7,720 lbs
GCWR
15,250 lbs
Sleeps
5 Passengers
Length
Overall: 24 ft 2 in
Height (Ext)
Overall: RWD: 9 ft 7 in / AWD: 9 ft 11 in | Int: 74 in
Width (Ext)
Overall: 96 in | Int: 68 in

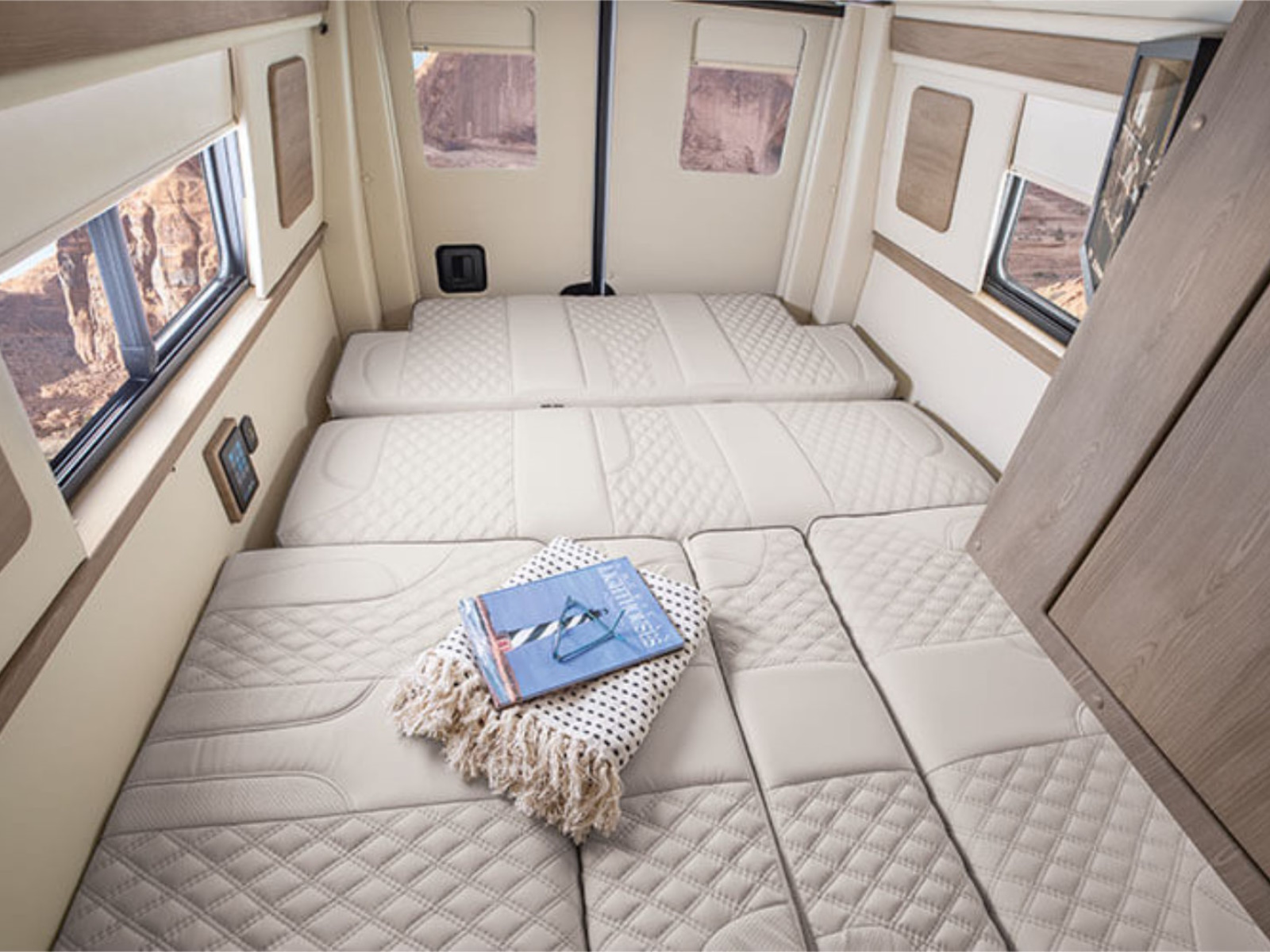

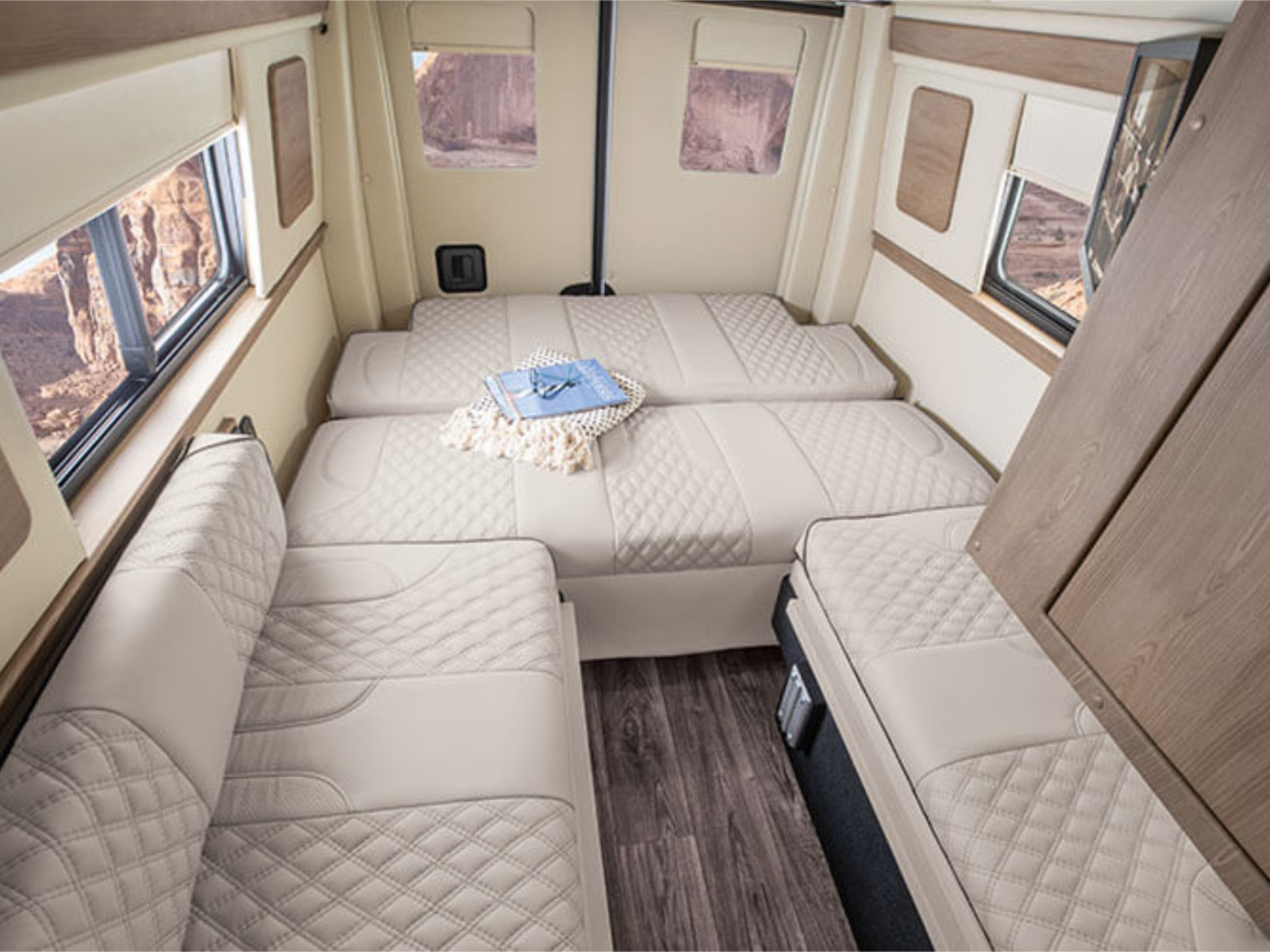

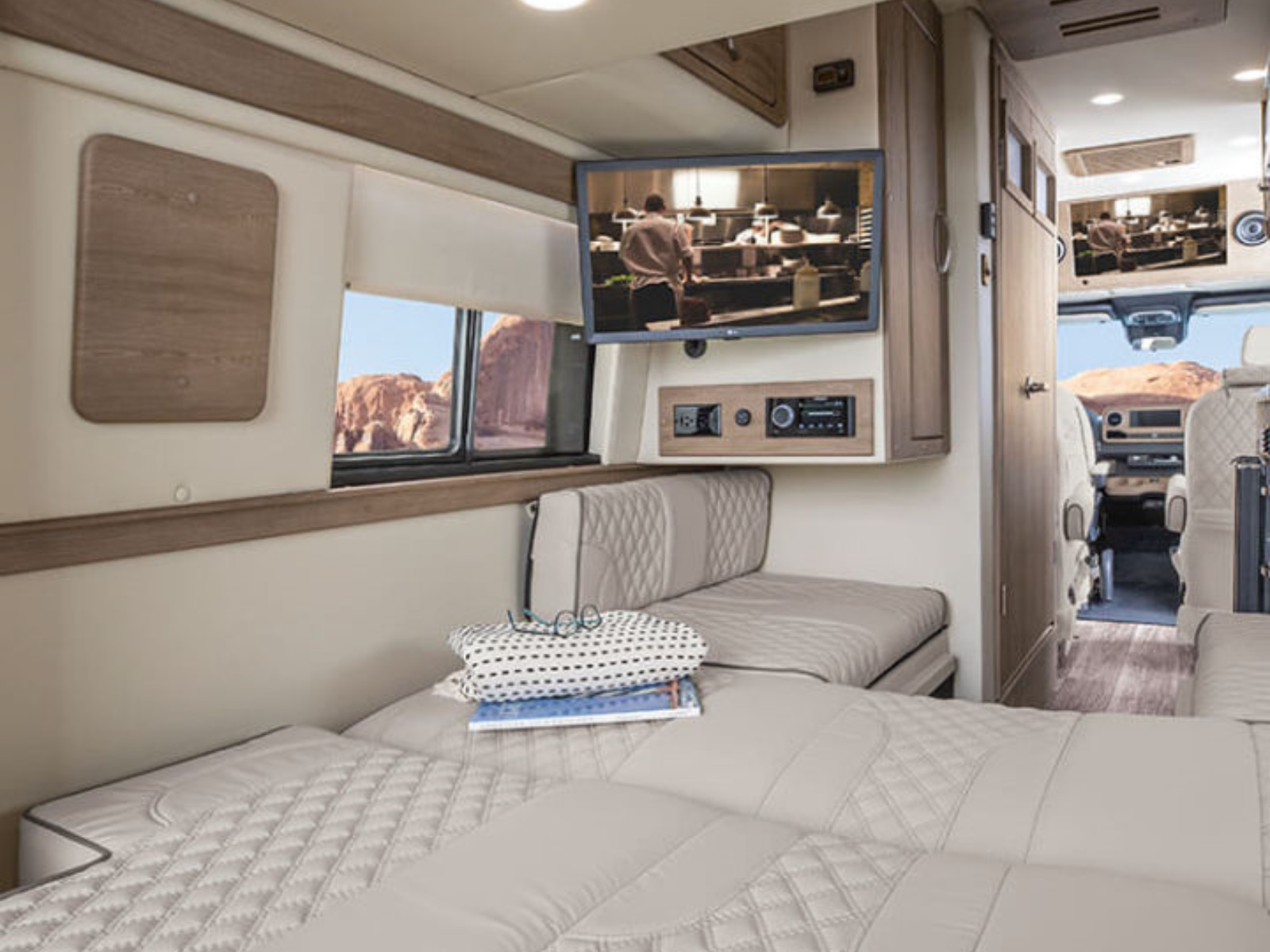

Beds
68 in x 80 in
Fresh Water
27 gal
Grey Water
24 gal
Black Water
14 gal

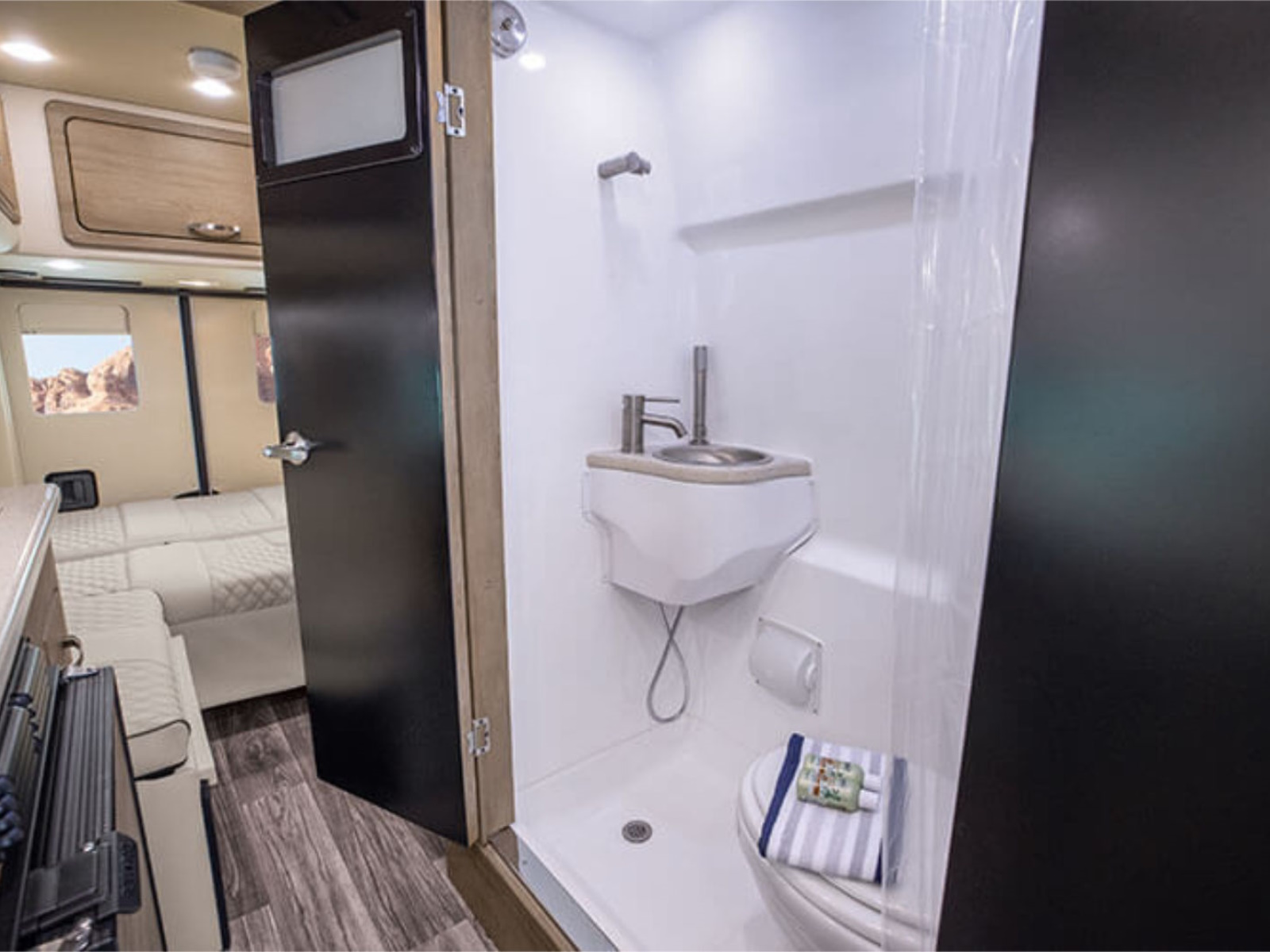

Shower
L5-30 amp

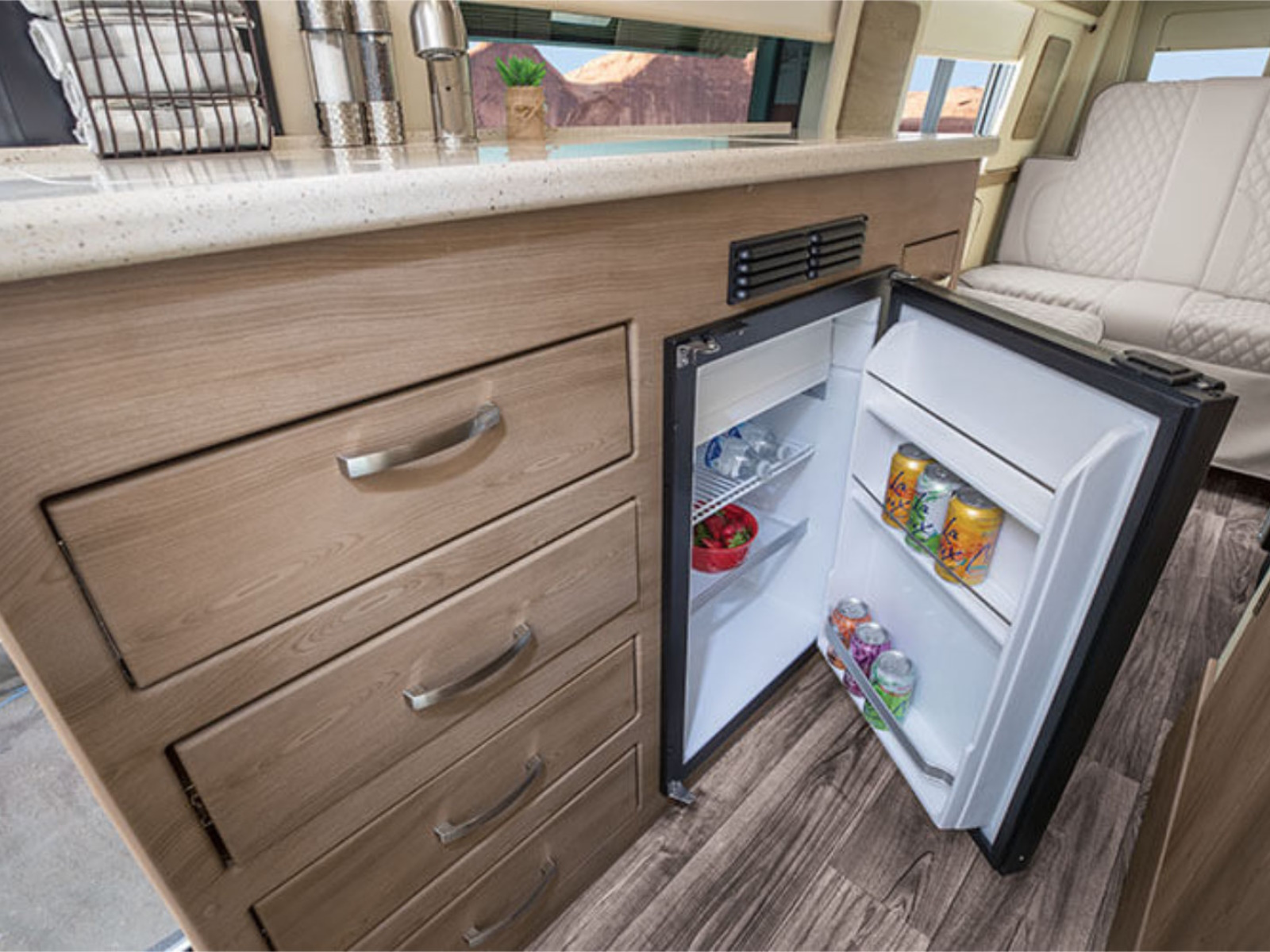

Refrigerator
7.3 cu ft / 12V & 120V
Cooktop
Dual Burner 1,800 watts / 120V
Furnace
17,000 BTU Diesel & 5,000 BTU 120V
Water Heater
Tankless / Diesel & 120V
Generator
Onan QG 2500LP
Propane (LP) Tanks
15.1 gal Propane Tank (10 gal on FD2)
Power Inverter
2,000W Xantrex Sine Wave
TVs
HD Digital Air TV Antenna
Air Conditioner
Gree Roof-Top Air Conditioner
