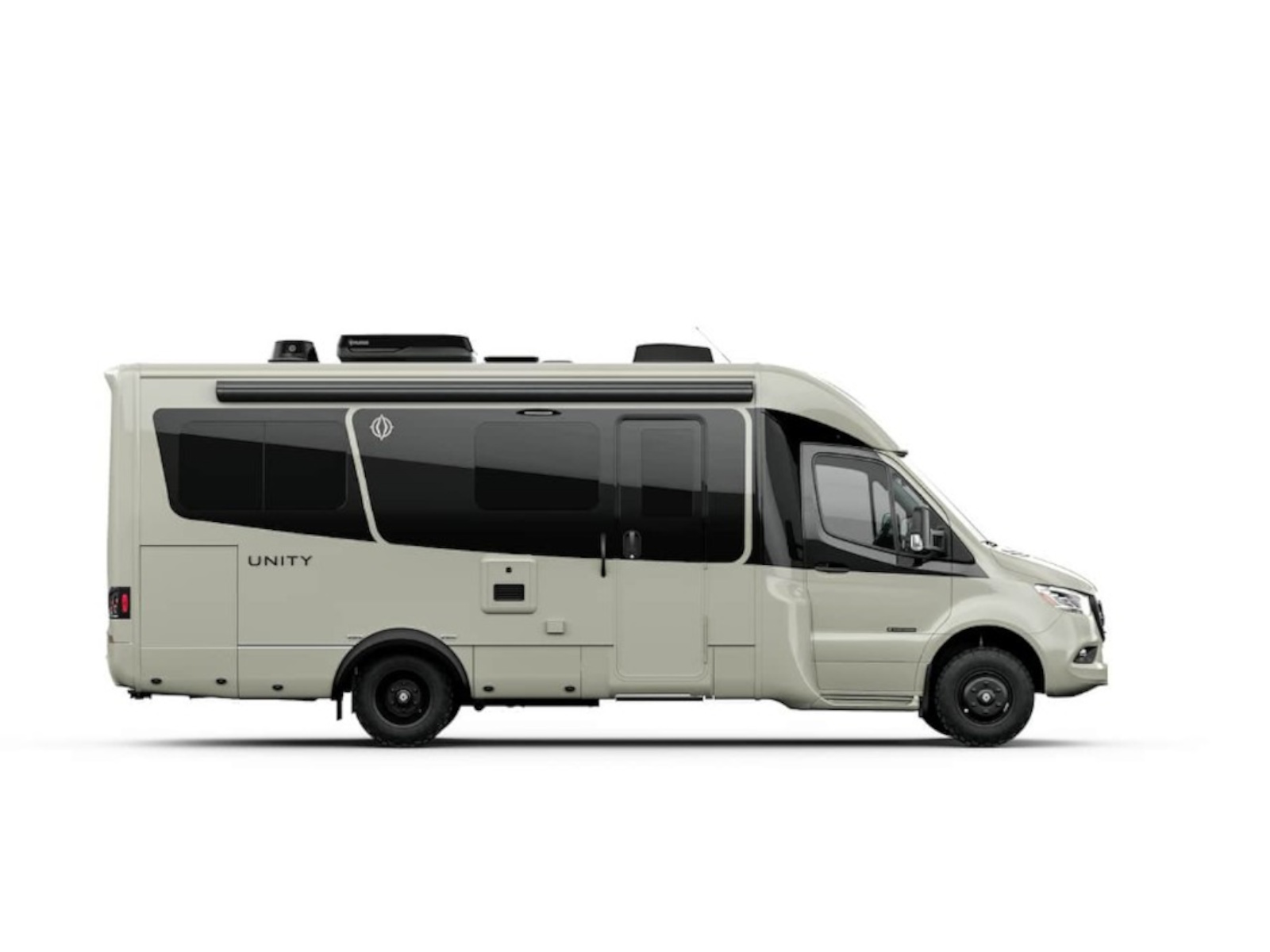

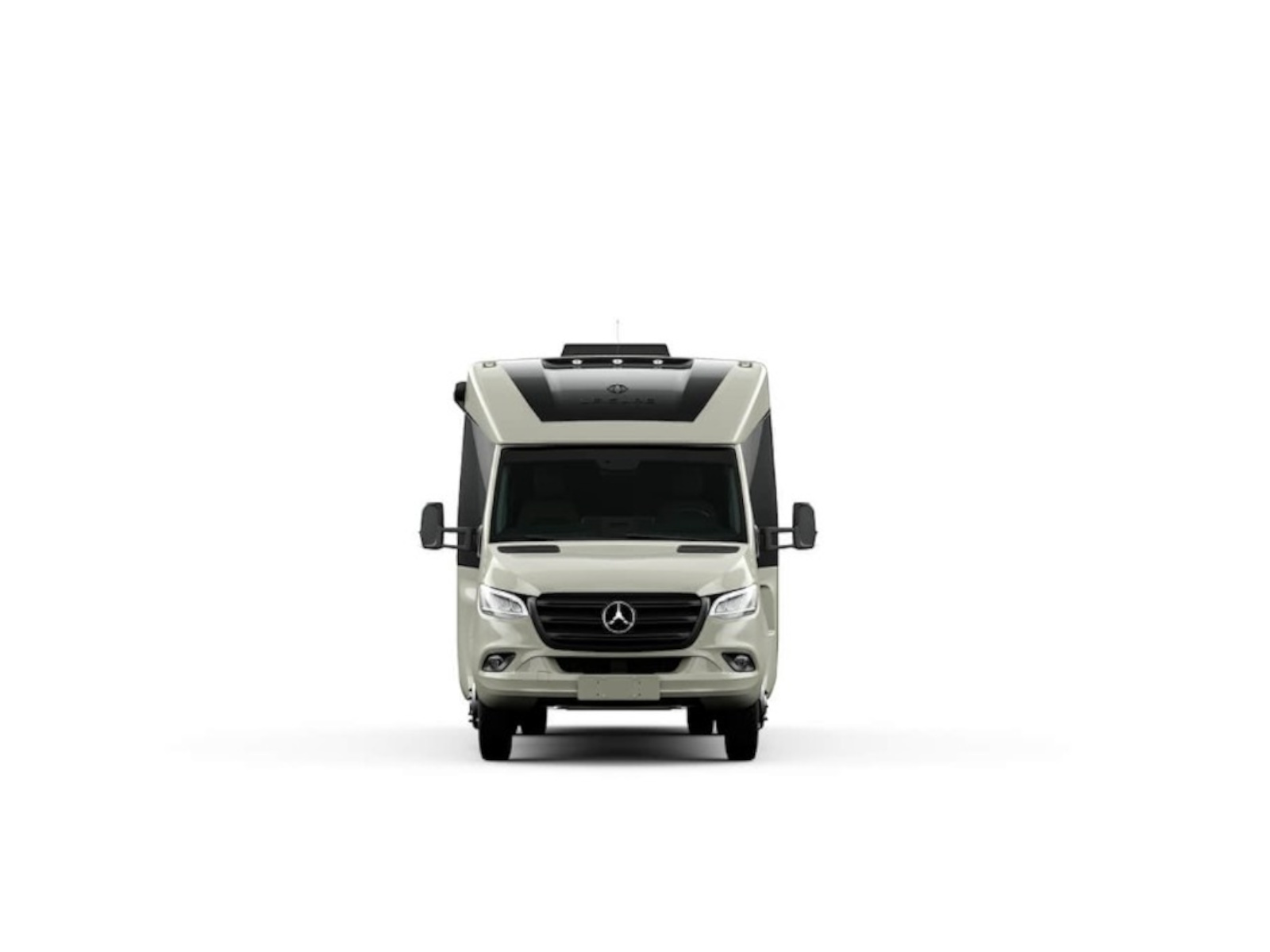

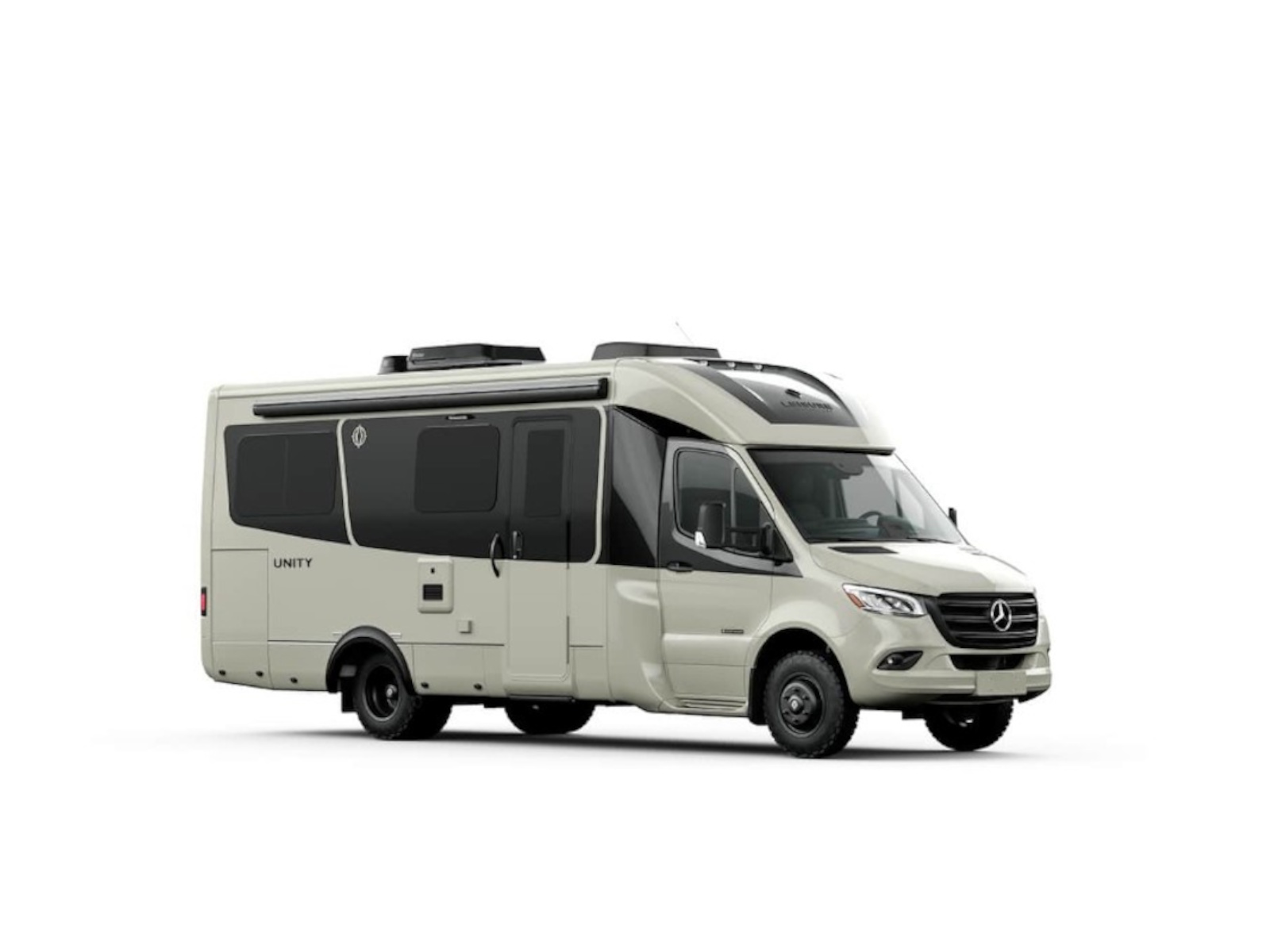

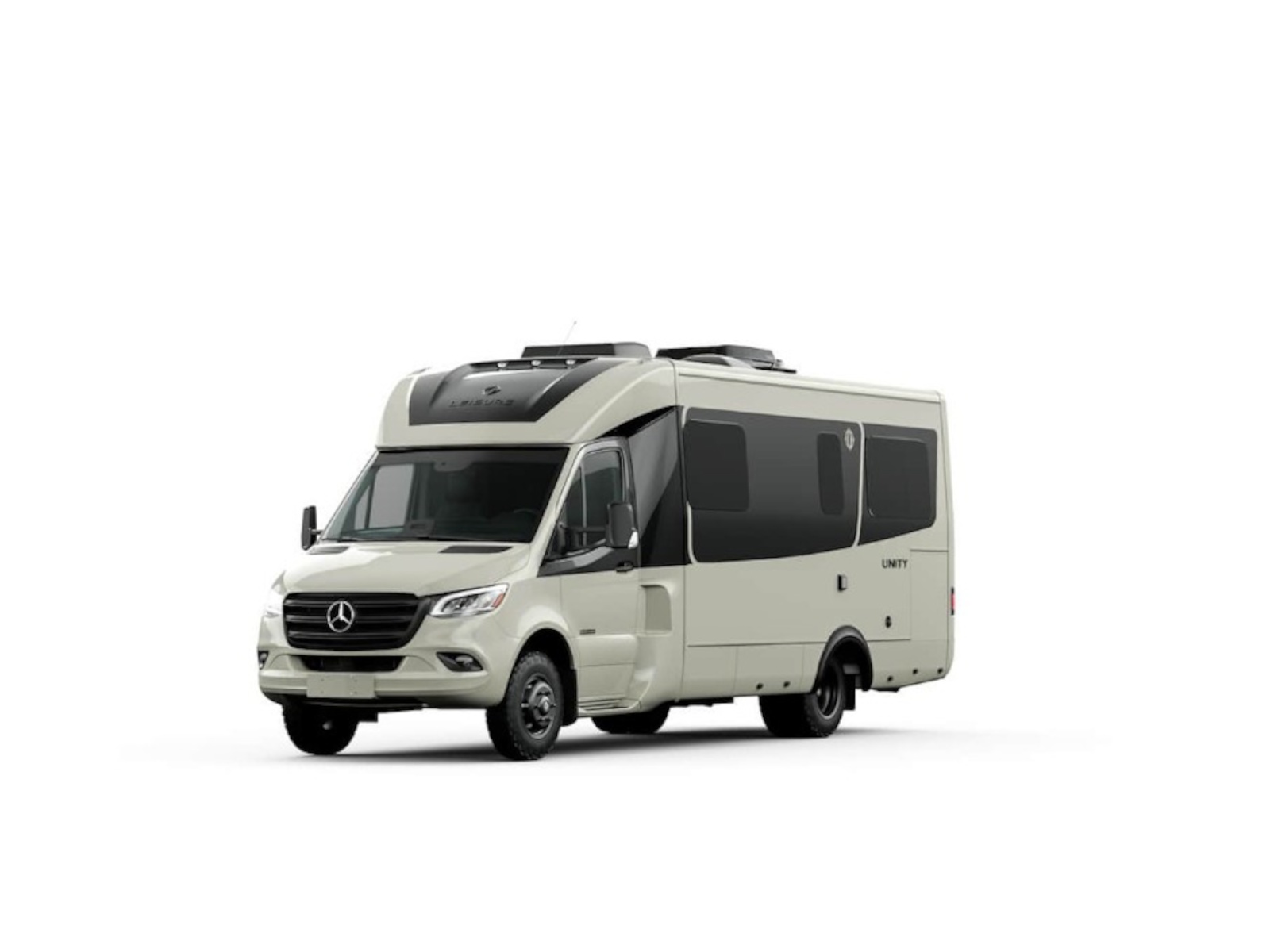

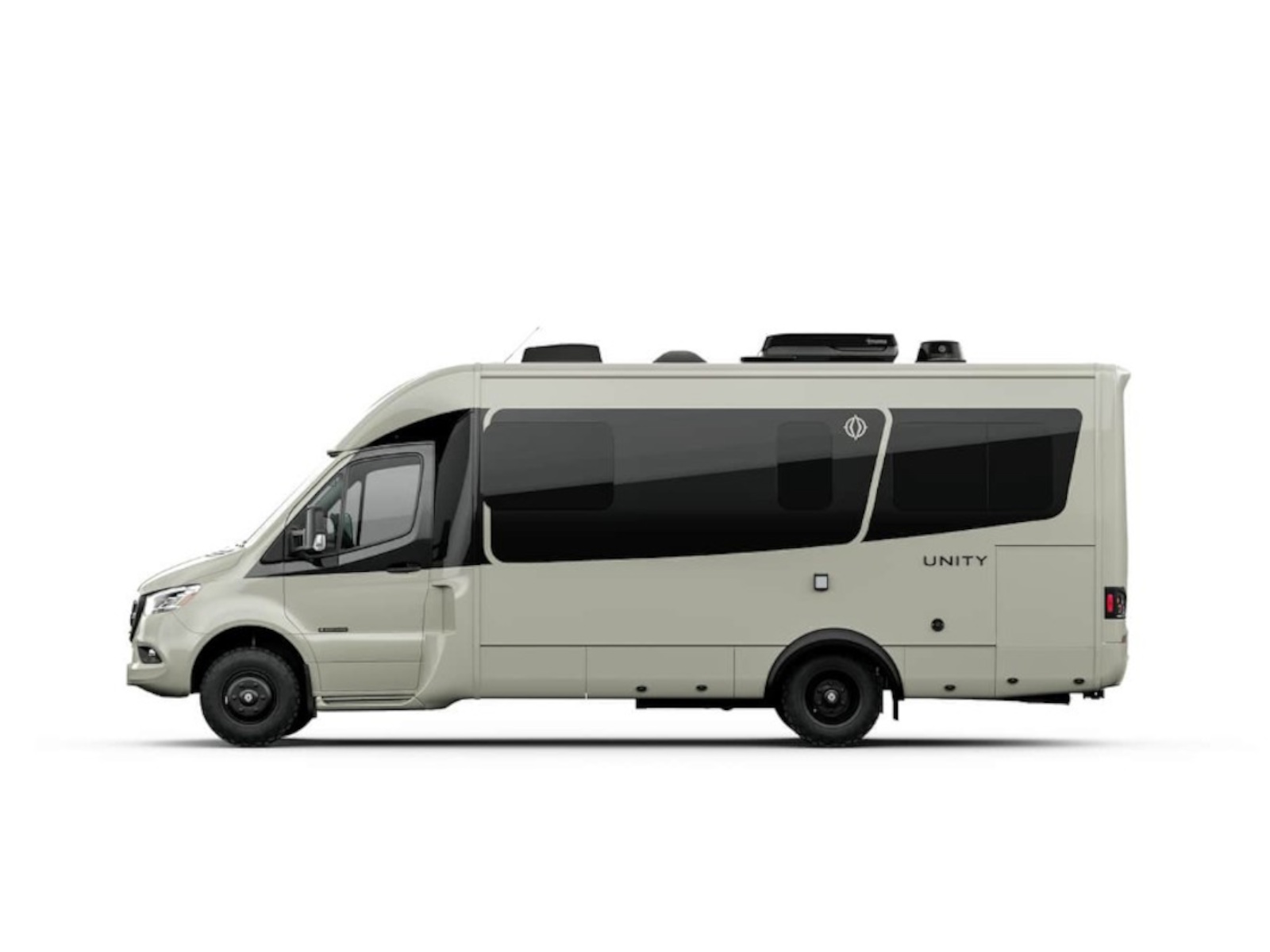

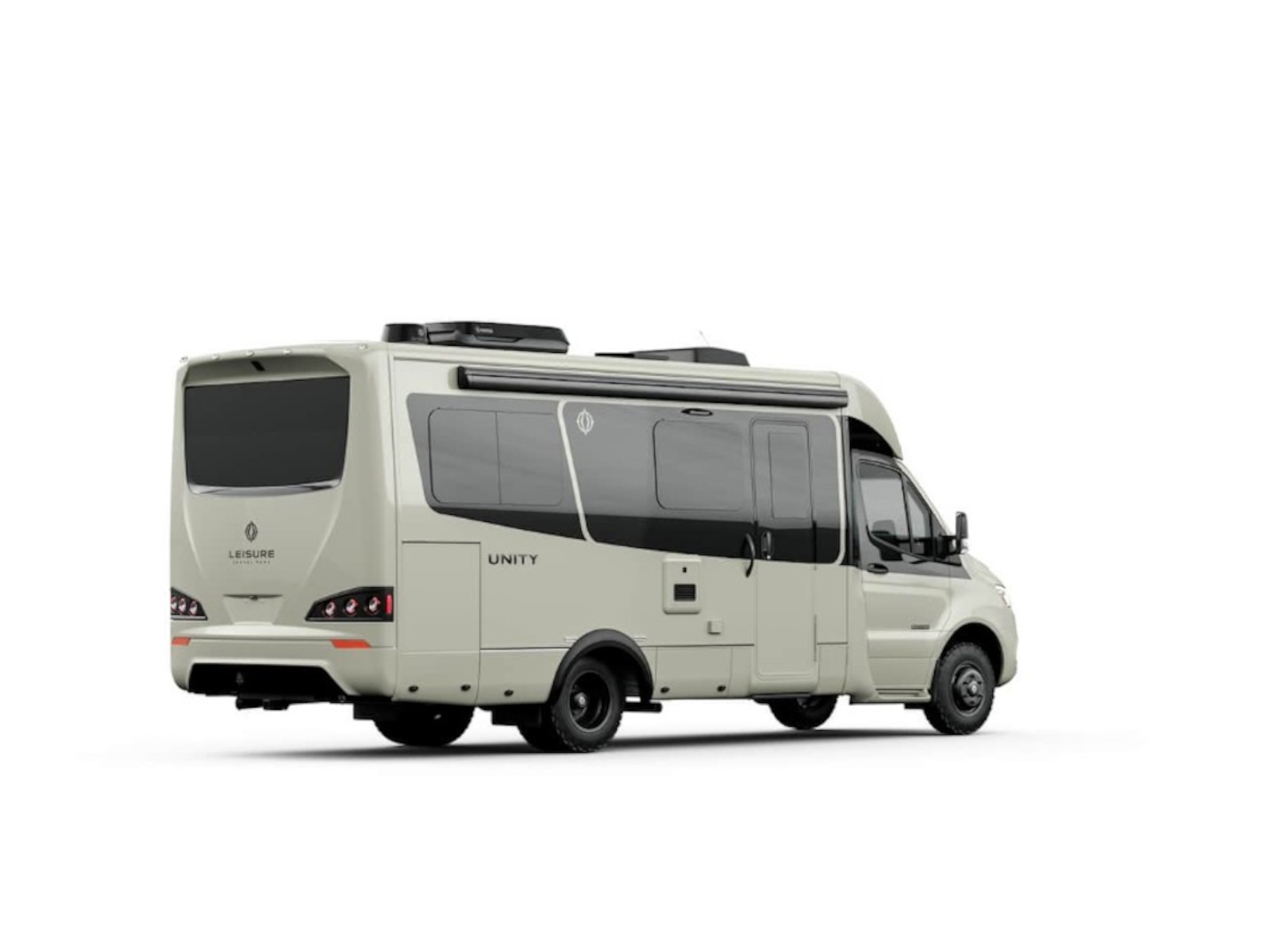

2026 Leisure Travel Vans Unity TB4X Desert Shadow

2026 Leisure Travel Vans Unity TB4X Desert Shadow

The Desert Shadow Edition includes exclusive Canyon exterior paint, Desert Shadow exterior badging, Black Alcoa aluminum wheels, diamond-quilted upholstery on captain’s chairs, matte black hardware and fixtures, Mist Corian®, Dune Ultrafabrics® upholstery, Stone upper cabinets. Please note, the exterior paint and interior décor options are fixed with the 60th Anniversary Edition.

Where rugged meets refined.

Introducing the all-new Unity TBX—blending the strength of the Mercedes-Benz Sprinter with adventure-ready upgrades and flexible living spaces—setting a new stage for modern RV adventure without compromise.

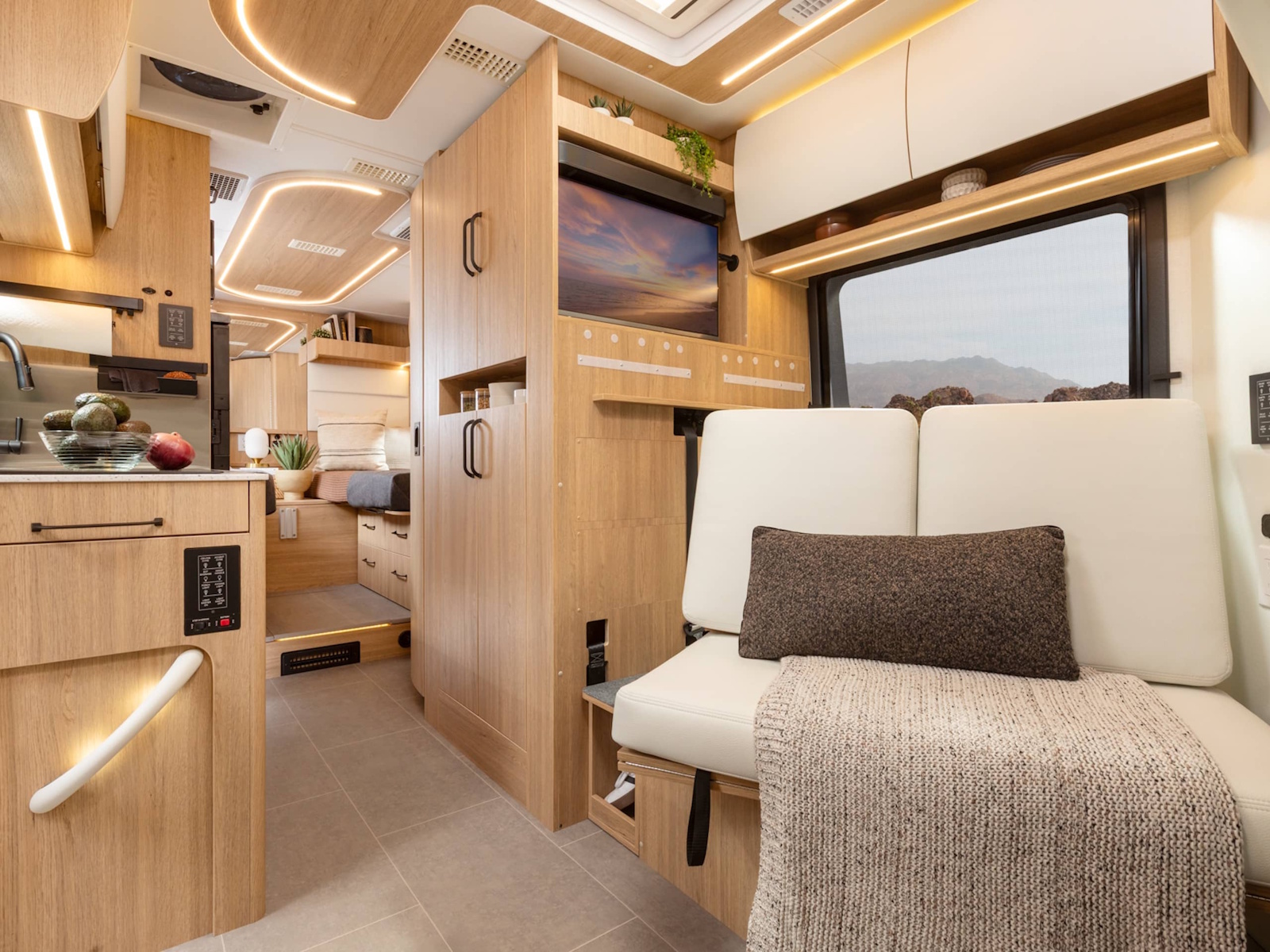

Innovative living spaces.

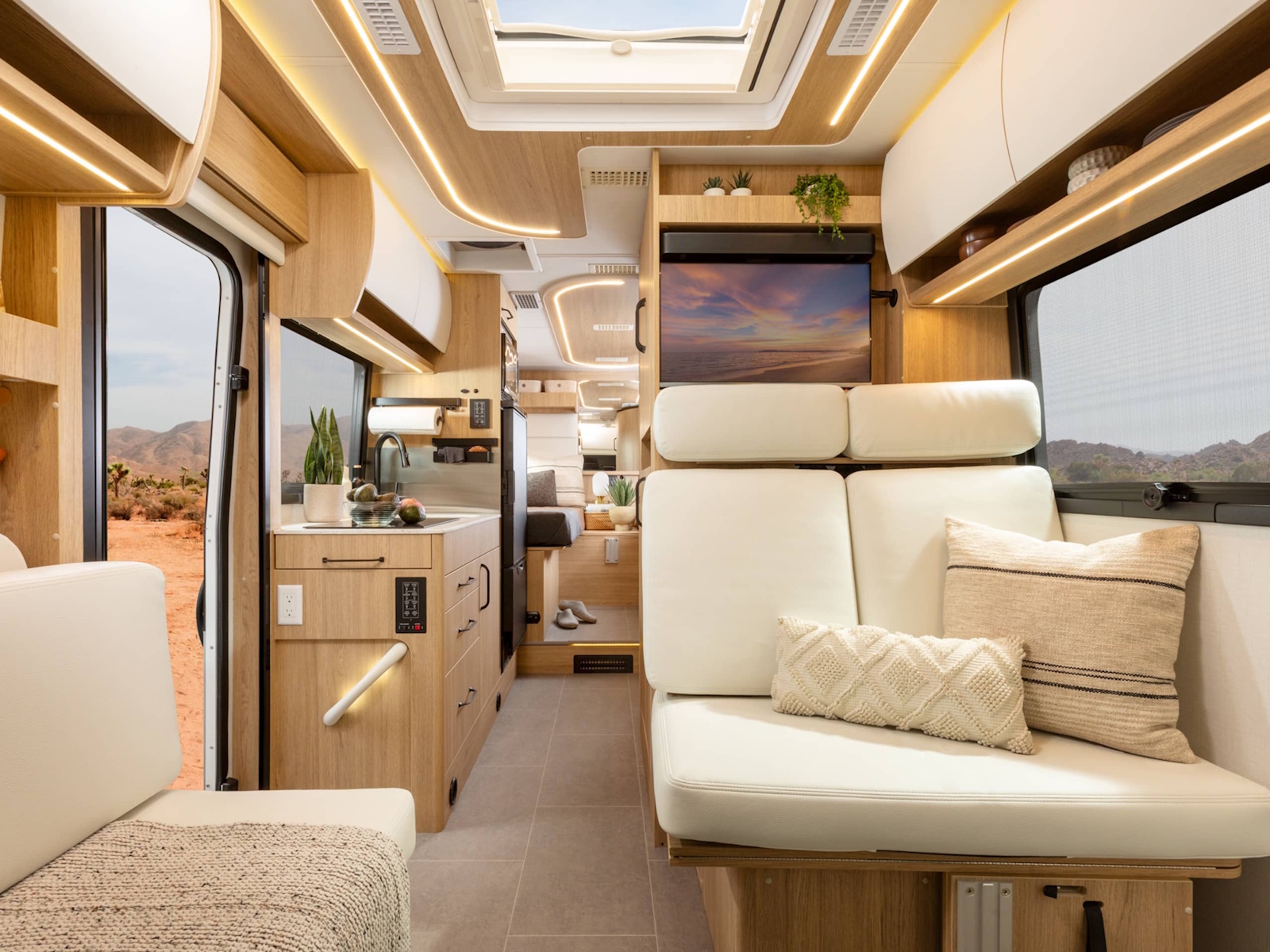

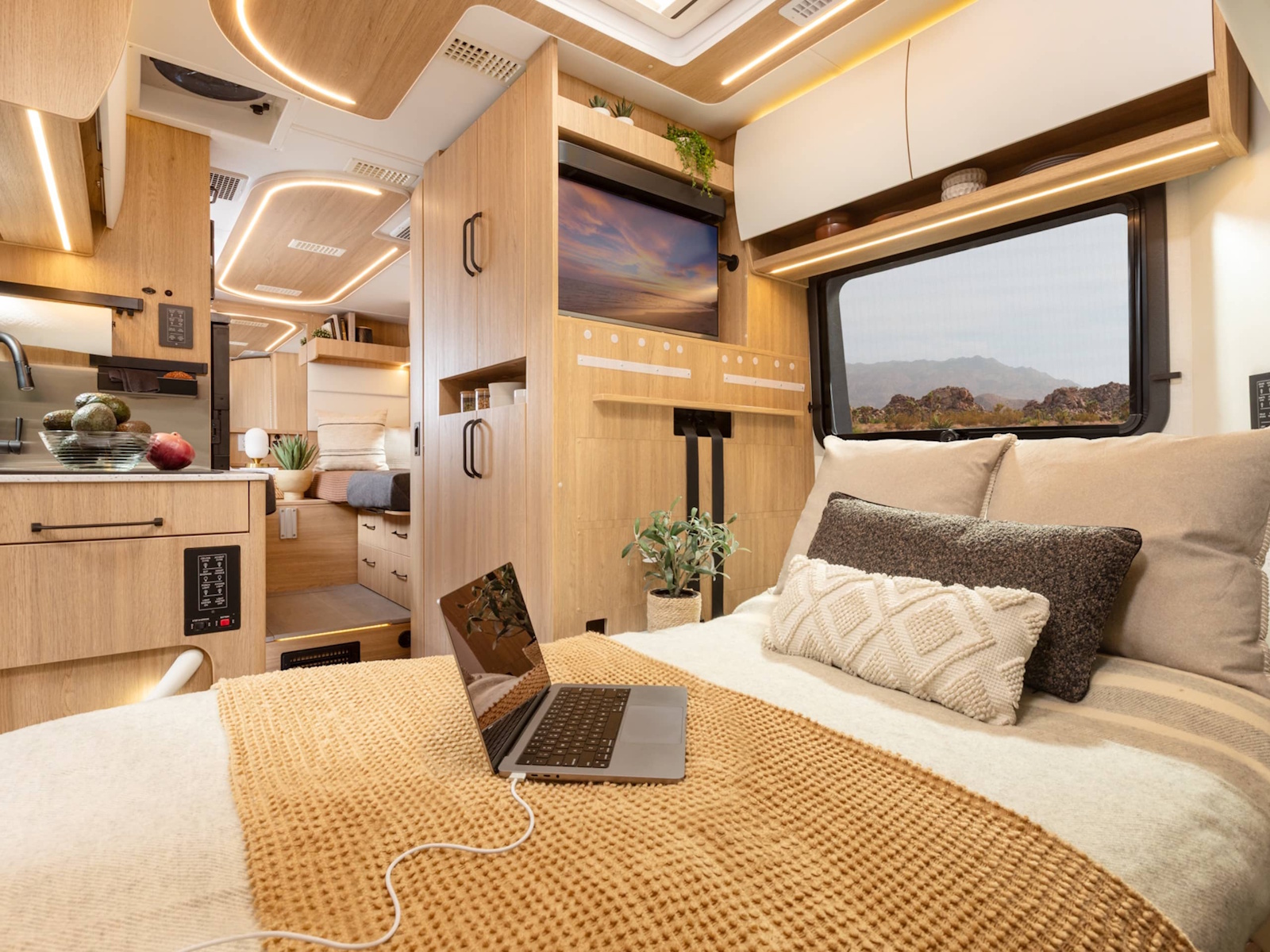

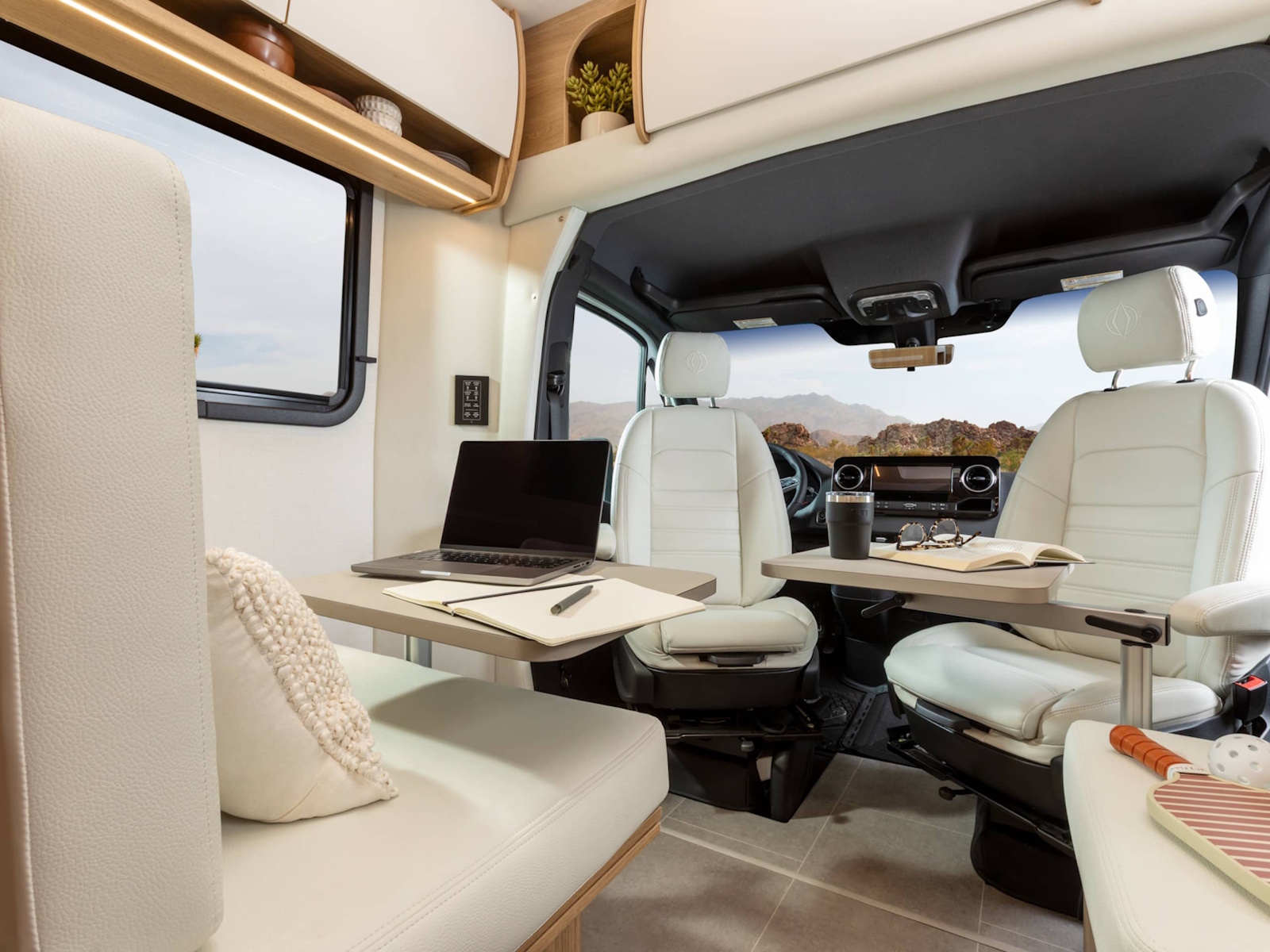

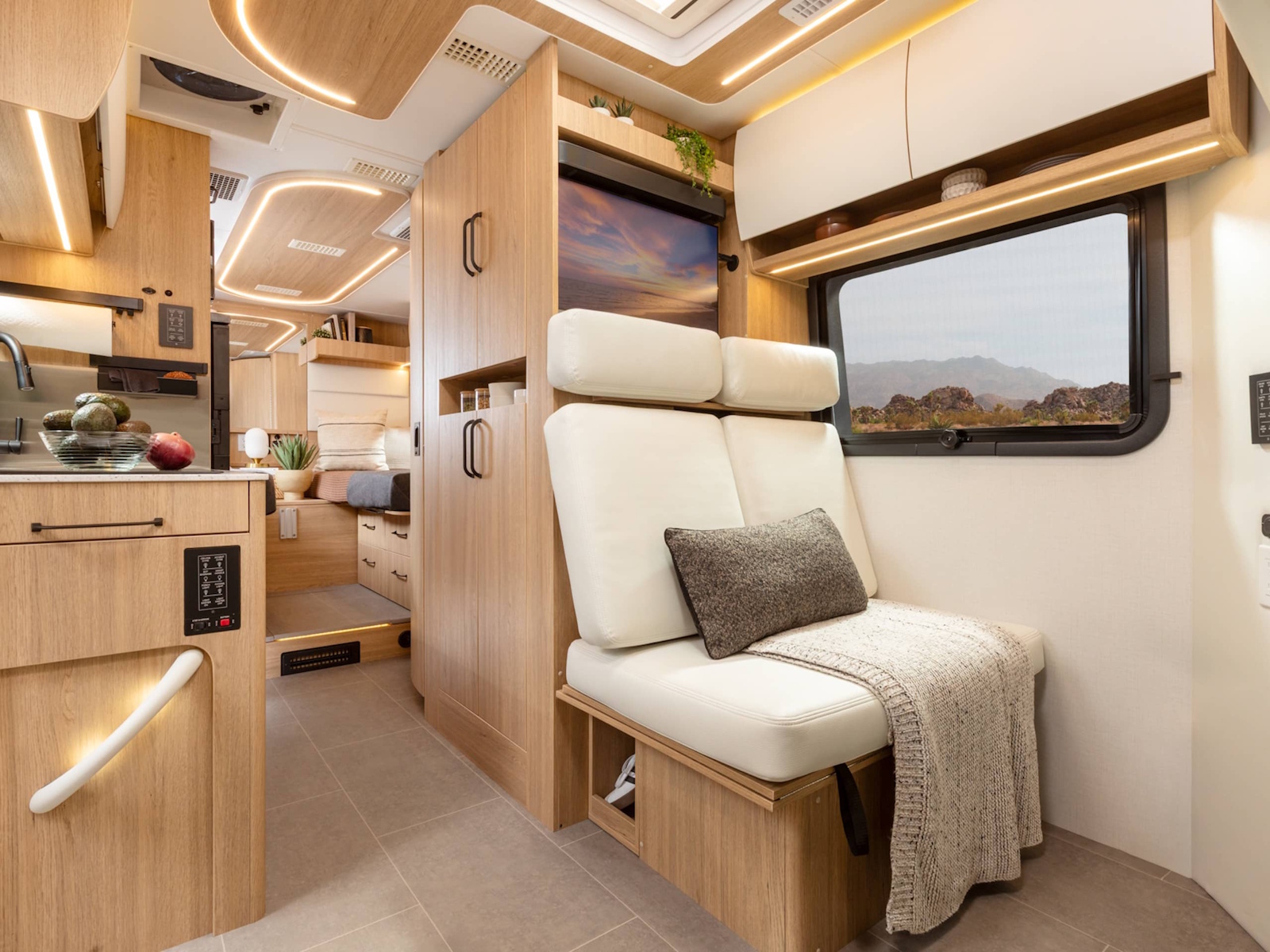

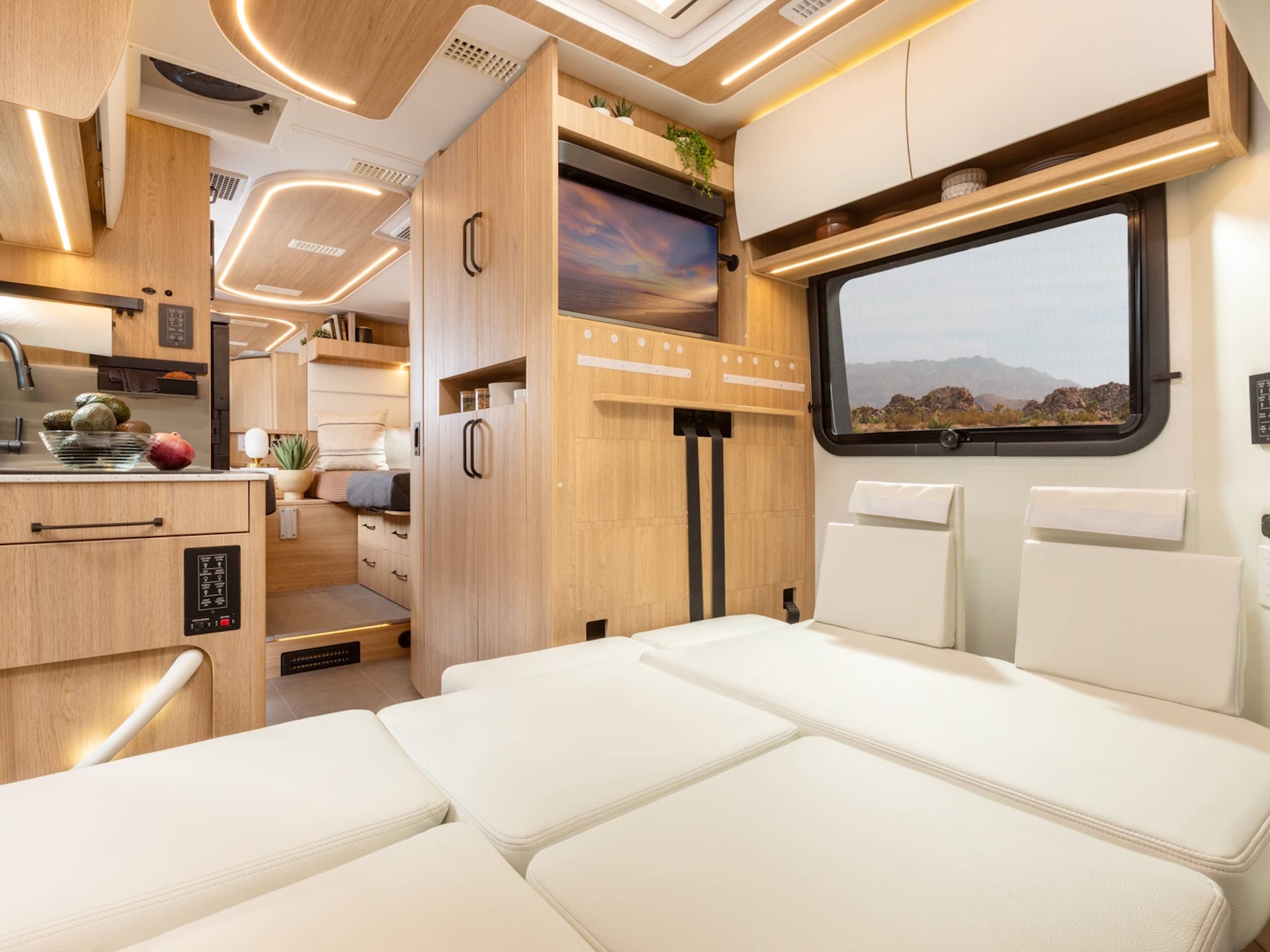

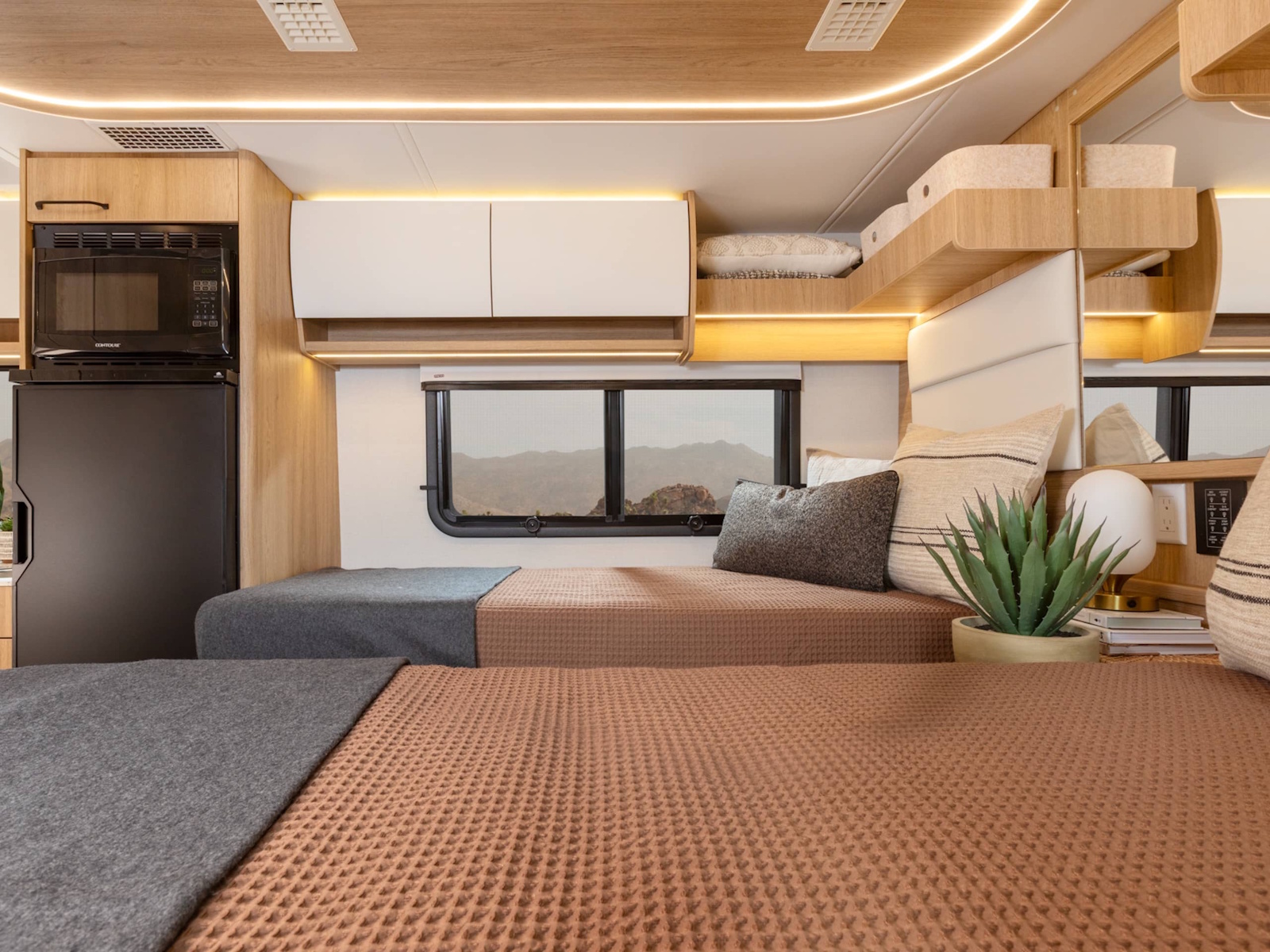

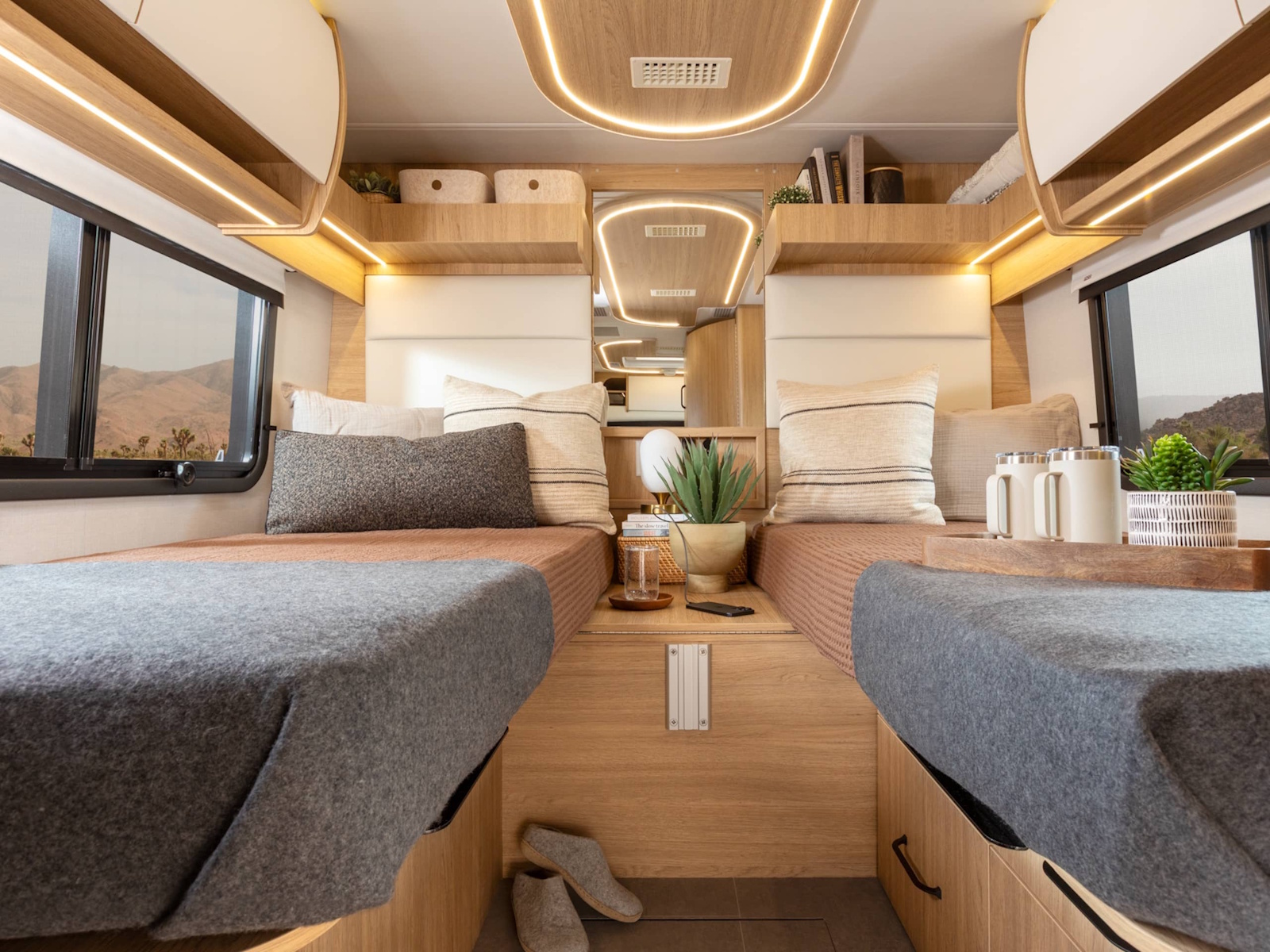

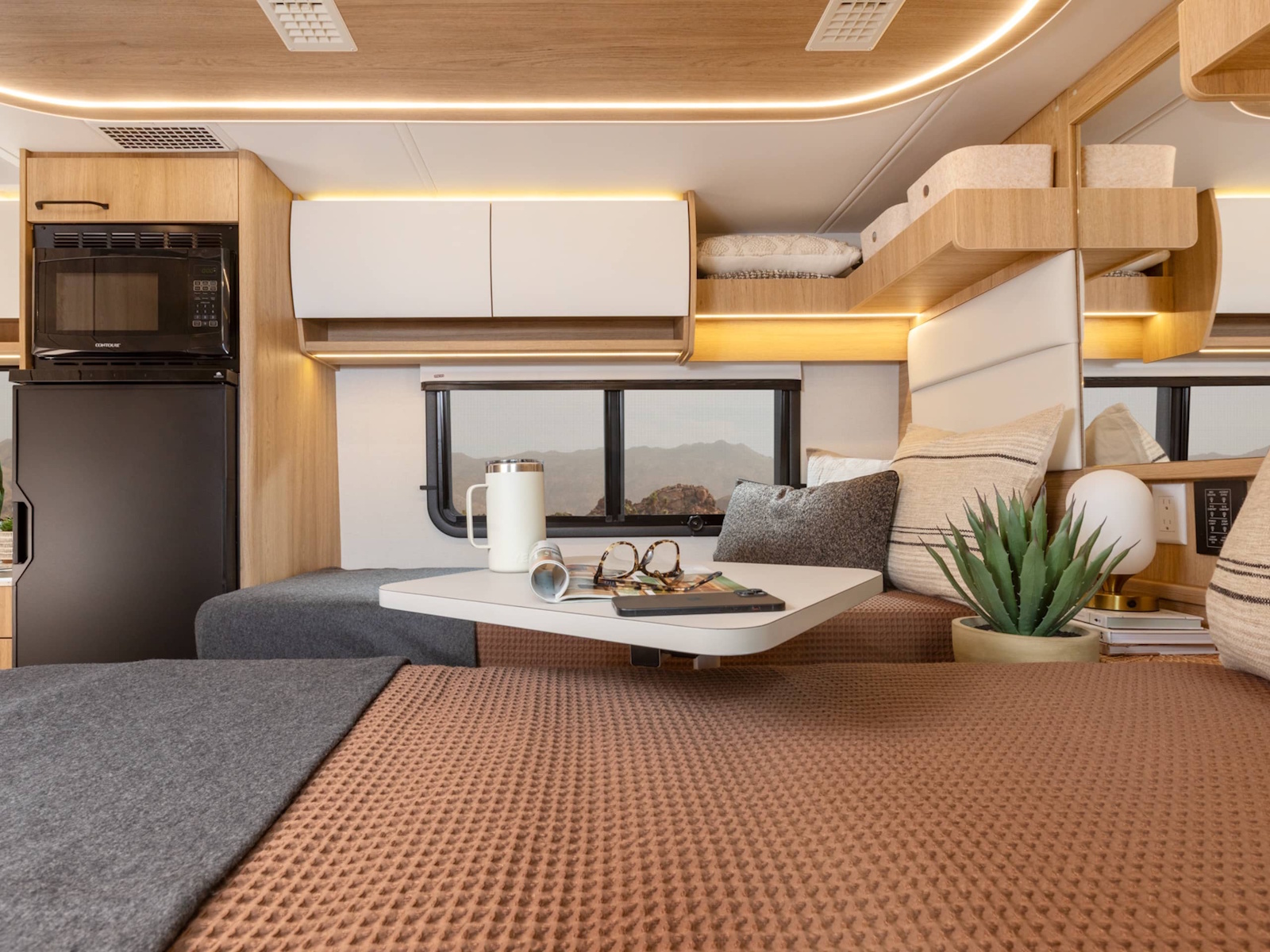

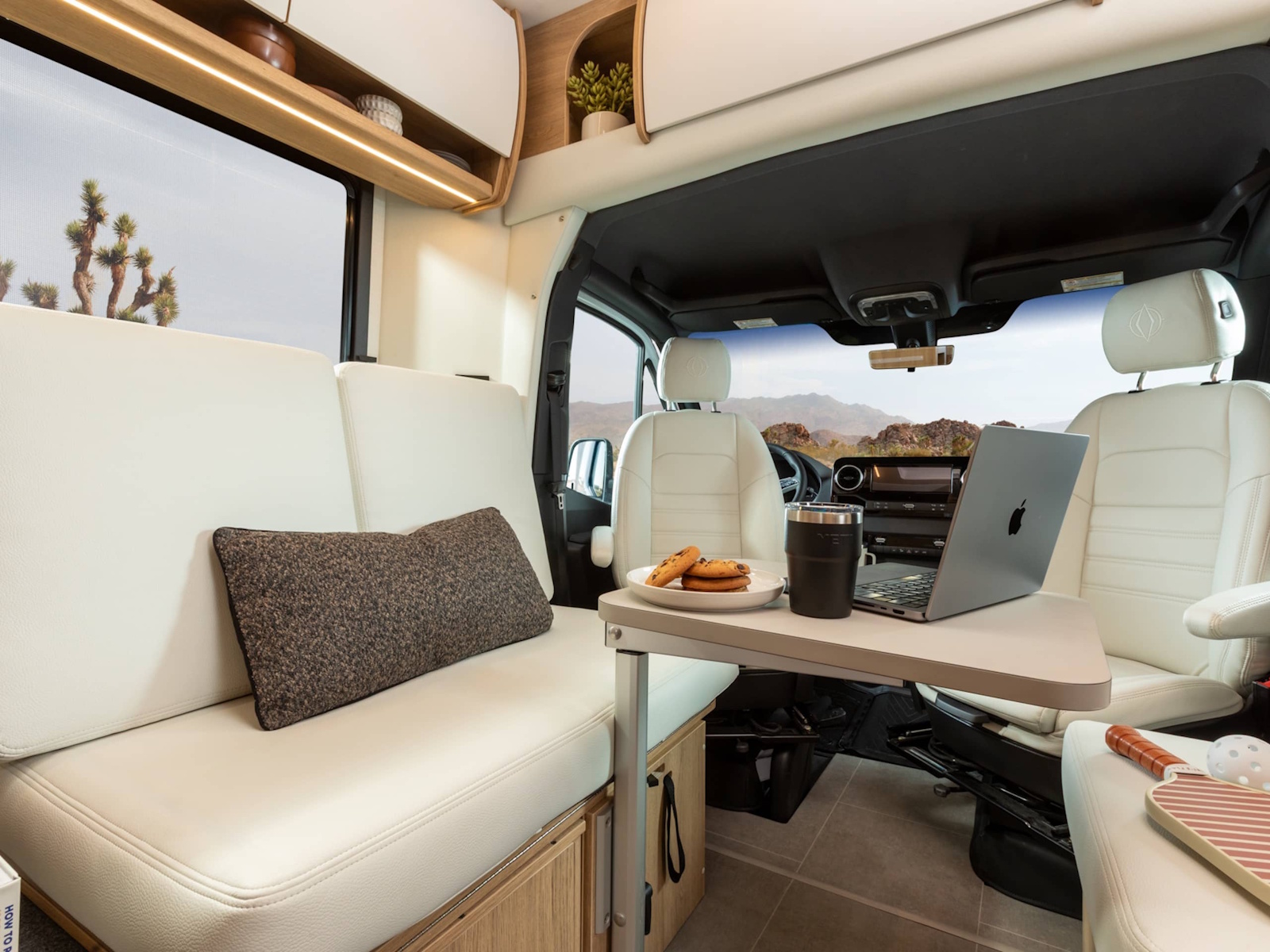

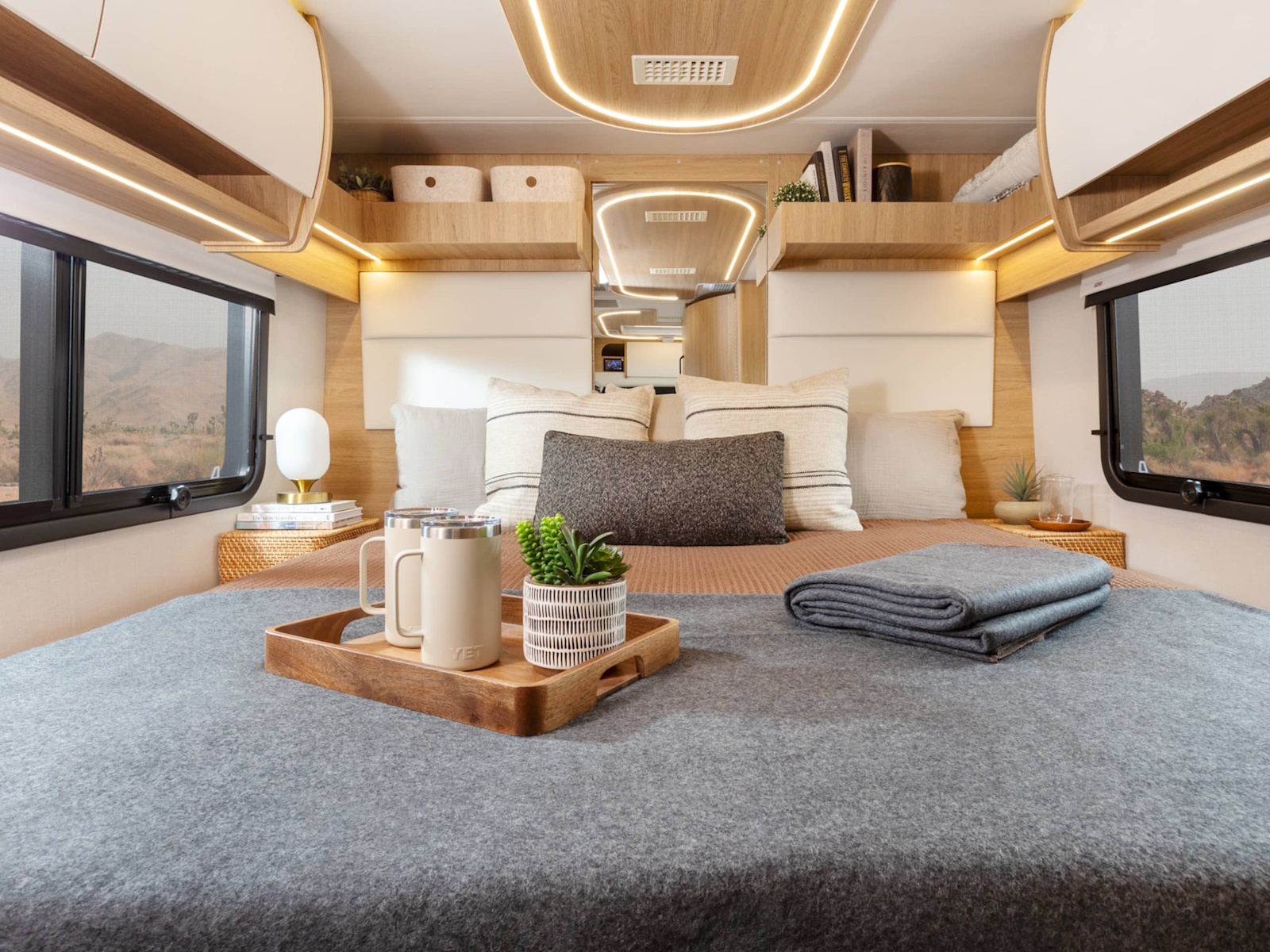

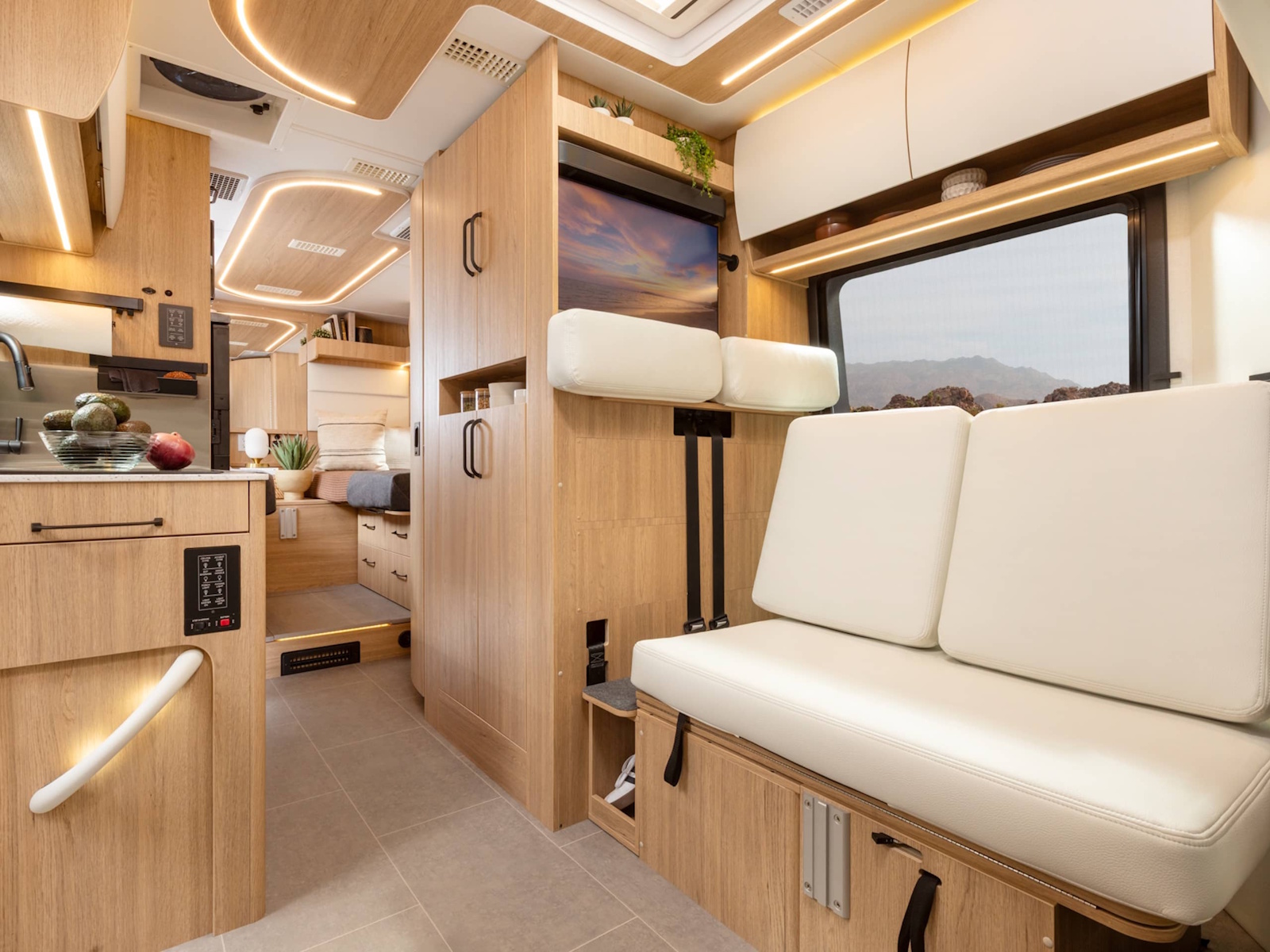

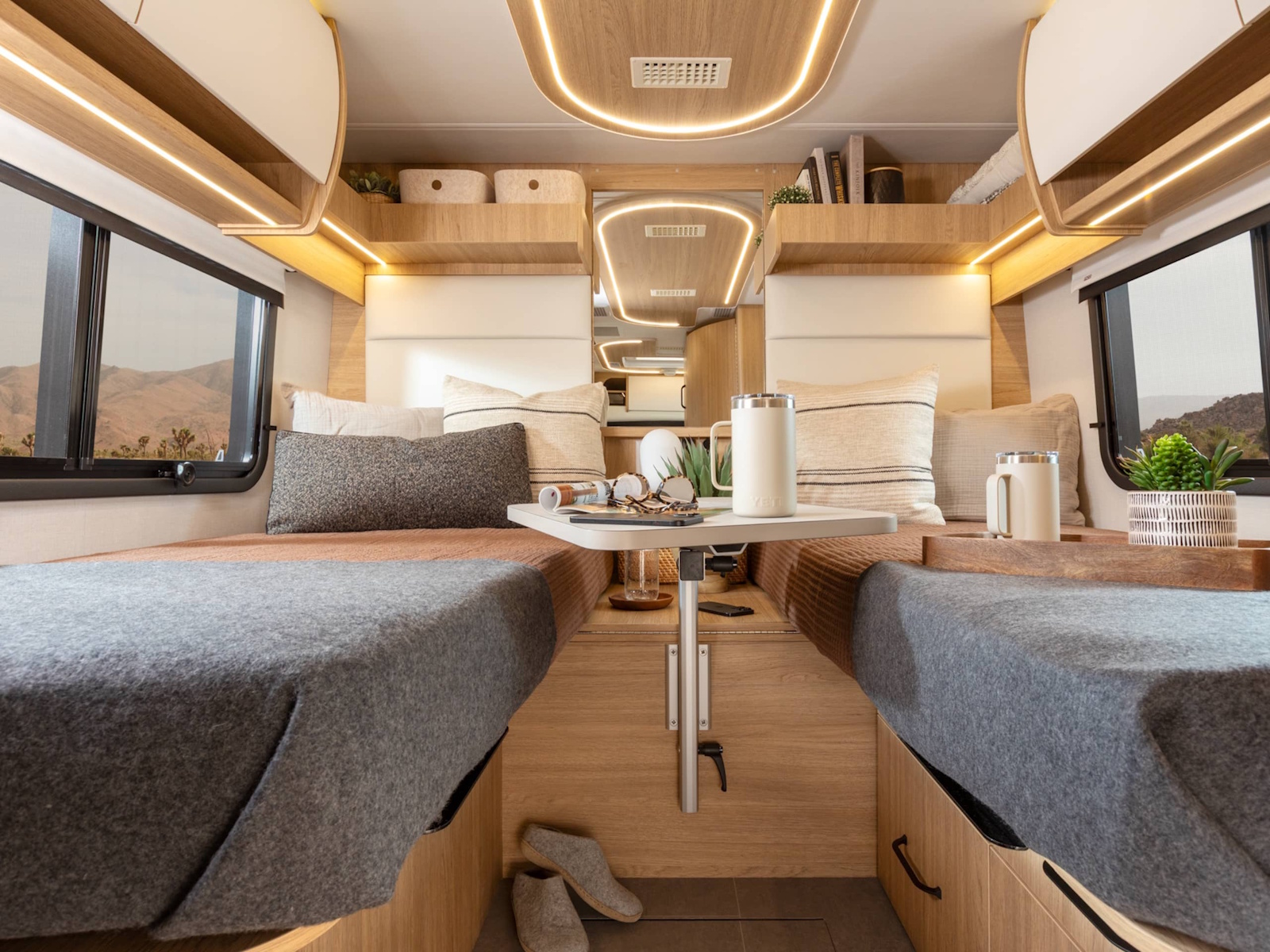

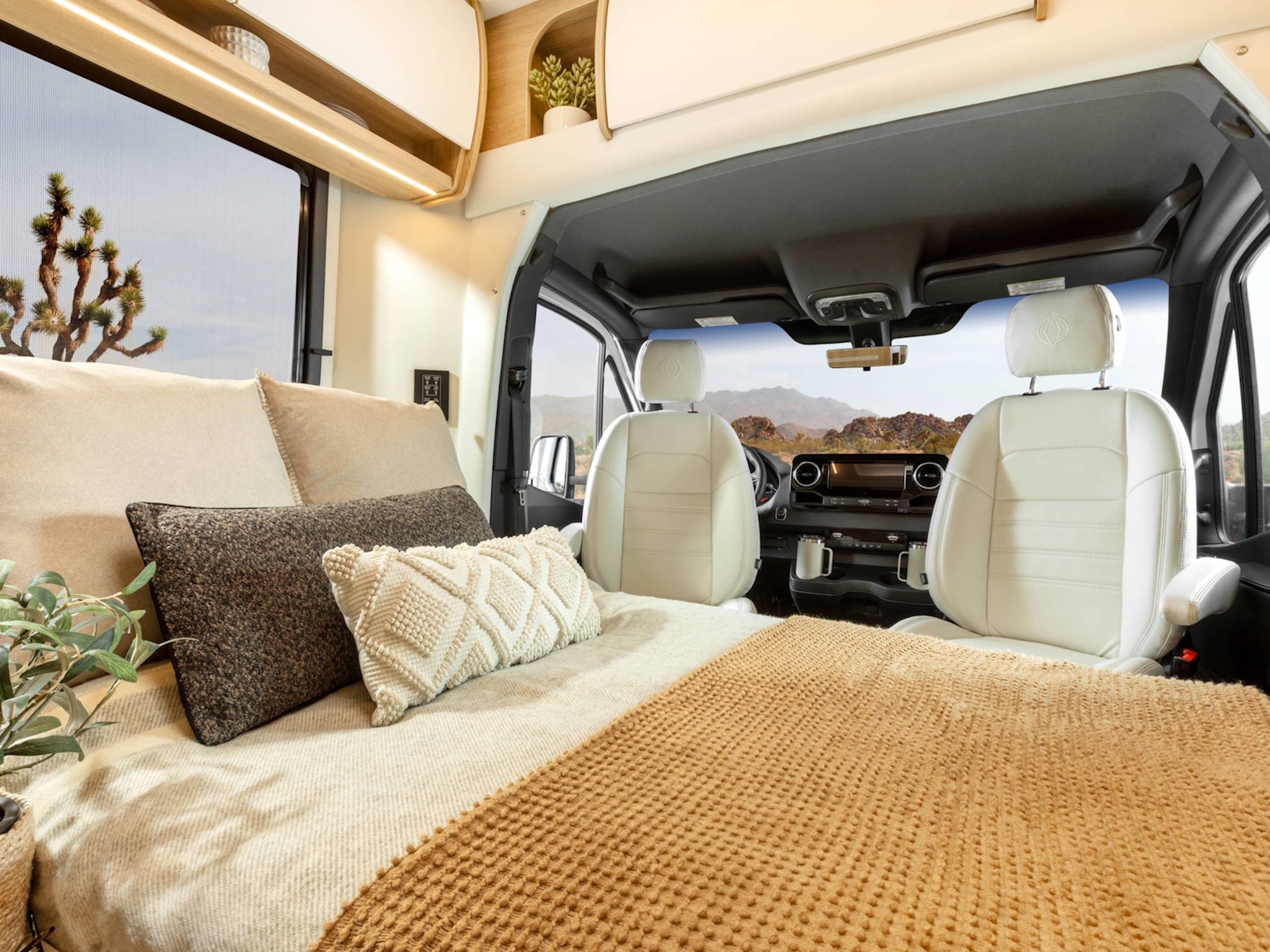

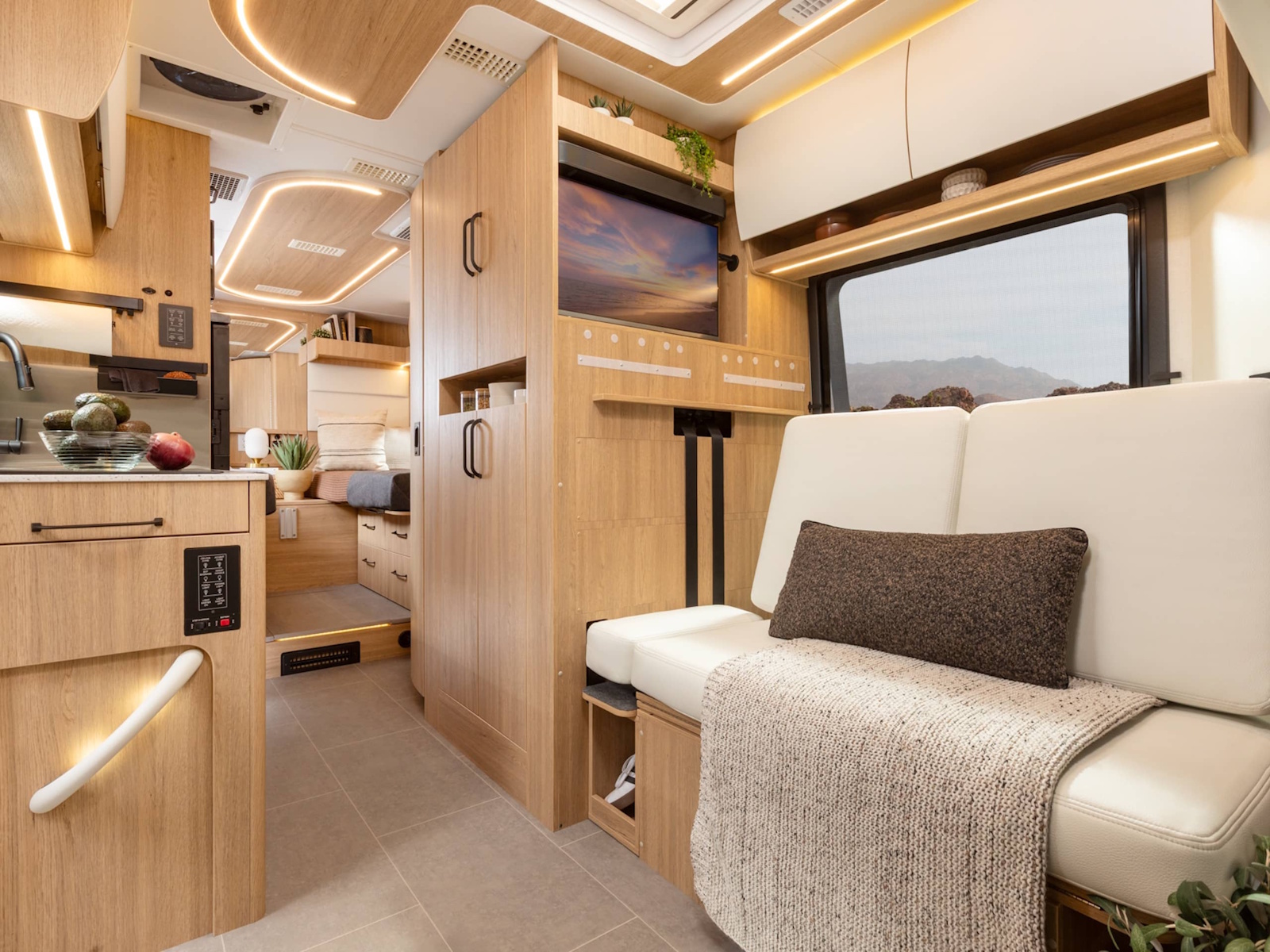

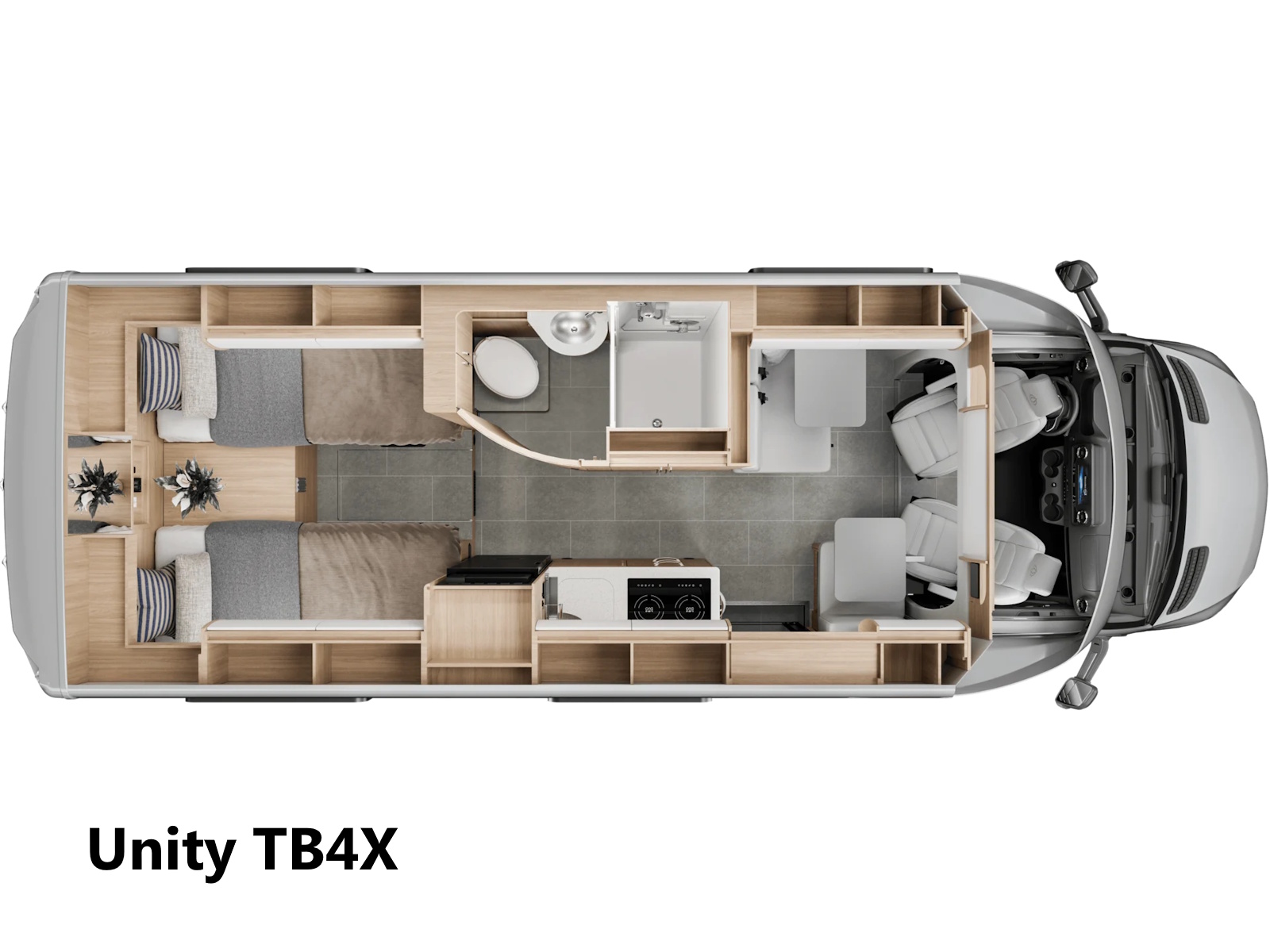

The Unity TBX reimagines RV living with a floorplan centered on versatility, comfort, and smart use of space. Featuring two distinct living areas, the TBX offers an open living and dining space up front and twin beds in the rear. It accommodates seating and sleeping for up to four, with all four travel seats forward-facing and equipped with shoulder belts.

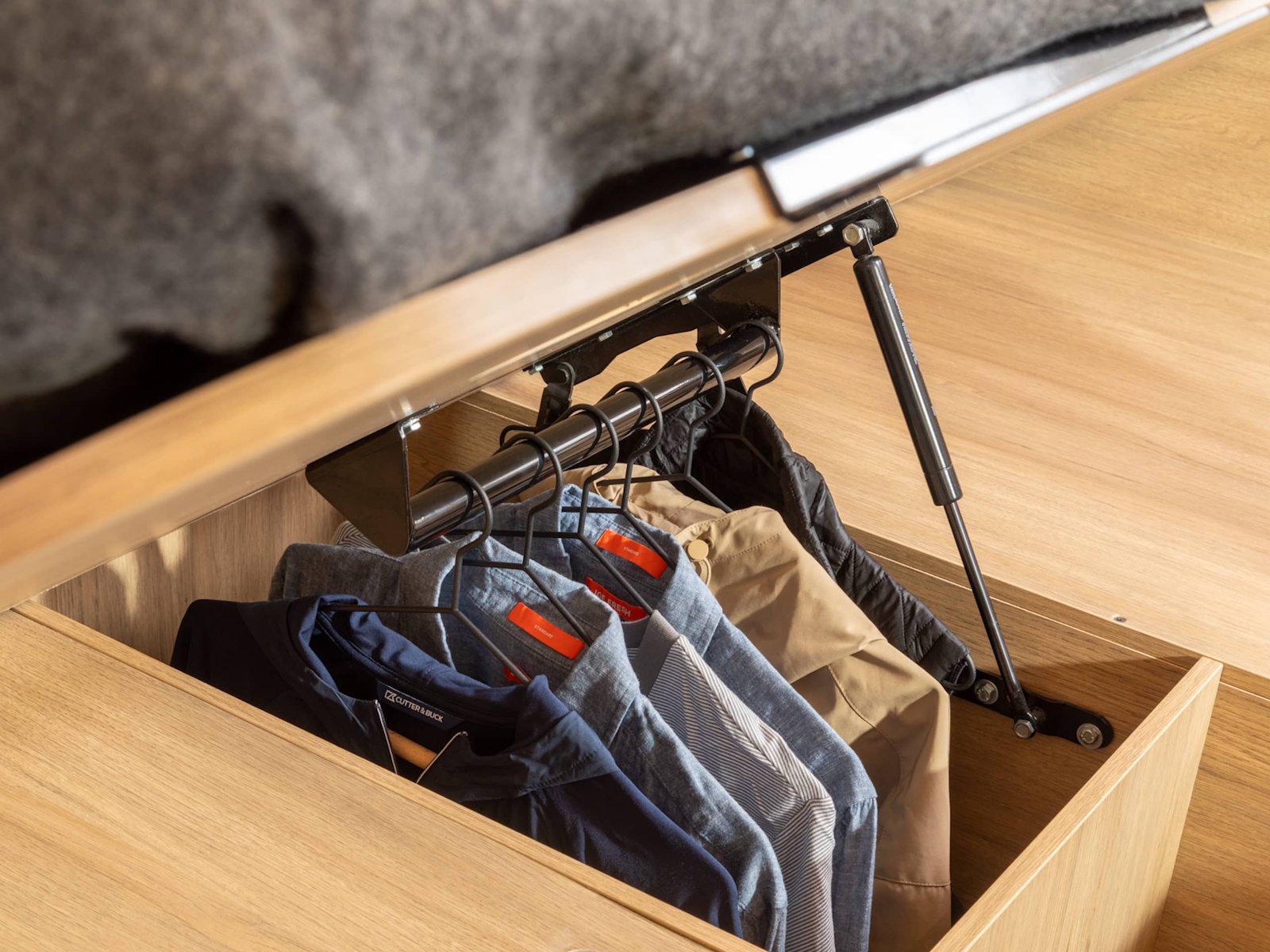

Storage without compromise.

As the first Leisure Travel Van to offer both a dedicated pass-through gear garage and up to 5,000 pounds of towing capacity, the Unity TBX provides space for your gear and the ability to bring more along for the journey—empowering you to explore more with comfort and capability to spare.

Adventure-ready.

Bringing a fresh, adventure-focused look to the Unity lineup with options such as a Black Accent Package, black wheels, and all-terrain tires, the TBX offers a balanced blend of rugged and refined design.

TB4X Exclusives

Exclusive to the Unity TB4X are matte-black rear fender flares and a factory Mercedes-Benz lift, adding further capability and giving the Unity a more assertive, confident stance. Furthermore, a 255-amp high-output auxiliary alternator is also available, fast-charging your house batteries on the go.

4 in Factory Mercedes-Benz Lift

Factory-engineered lift for enhanced ground clearance and off-road capability.

All-Wheel Drive

First AWD offering on the Unity, built for confident exploration.

Matte-Black Fender Flares

Bold rear fender flares complete the assertive, adventure-ready stance.

255-A Auxiliary Alternator

Optional high-output alternator for rapid battery charging while driving.

Features May Include:

Chassis

• Mercedes-Benz Sprinter 3500 Dual Rear Wheel Chassis (170″ Wheelbase, 11,030 lb GVWR), 2.0-L Turbocharged I-4 Diesel (208 hp, 332 ft·lb Torque) with 9G-Tronic Auto Transmission
• Adaptive Cruise Control
• Alternator – 250 A
• Chrome Grille
• Concealed Locking Fuel Filler
• Digital Rear View Mirror
• Driver and Passenger Exterior Courtesy Light
• Driving Assist Package with Rain Sensing Wiper Assist, Active Braking Assist, Lane Keeping Assist, Traffic Sign Assist
• Electronic Stability Control
• Integrated Fog Lamps with Cornering Light Function
• Leather-Wrapped Multifunctional Steering Wheel with Tilt/Telescopic Function
• LED Headlamps with High Beam Assist
• MBUX Touchscreen Multimedia Center with AM/FM, Navigation, Voice Control, Smart Phone Integration, and Rear-View Camera
• Power Windows and Door Locks
• Power/Heated Exterior Mirrors with Convex and Turn Signal
• Power/Heated Ultrafabrics® Cab Seats with Armrests, Adjustable Lumbar Support, Recline, and Swivel Bases
• Privacy Drape in Cab
• Rear Hitch Receiver with 7-Pin Connector
• Removable Rubber Floor Mat
• Tire Pressure Monitoring System
• Wheel Simulators

Vehicular

• Chassis Battery Disconnect
• Powder Coated Steel Undercarriage Support Structure
• Roadside Assistance – 3 Years/36,000 Miles

Construction

• Frameless Tinted All-Glass Awning-Style Windows
• Vacuum Bonded Aluminum-Framed Insulated Contoured Sidewalls with Fiberglass Exterior
• Vacuum Bonded Aluminum-Framed Insulated Domed Roof with Fiberglass Exterior
• Vacuum Bonded Steel Framed Insulated Floor with Composite Exterior

Exterior

• Chrome Automotive-Style “LTV” Branding
• Contoured Entrance Door with Screen Door and Window
• Contoured Fiberglass Baggage Doors with Top Continuous Hinge and Draw Tight Latches
• Illuminated Assist Handle
• LED Patio Light
• Painted Color-Matched Front Bumper
• Painted Fiberglass Running Boards and Flares
• Painted Full Body with Clear Coat
• Powered Retractable Entrance Step
• Water Pump Switch in Utility Center

Interior

• Coach Floor Extension
• Curved Soft Close Overhead Cabinetry Doors with Hidden Catch
• Day/Night Roller Shades
• Dry Chemical Fire Extinguisher

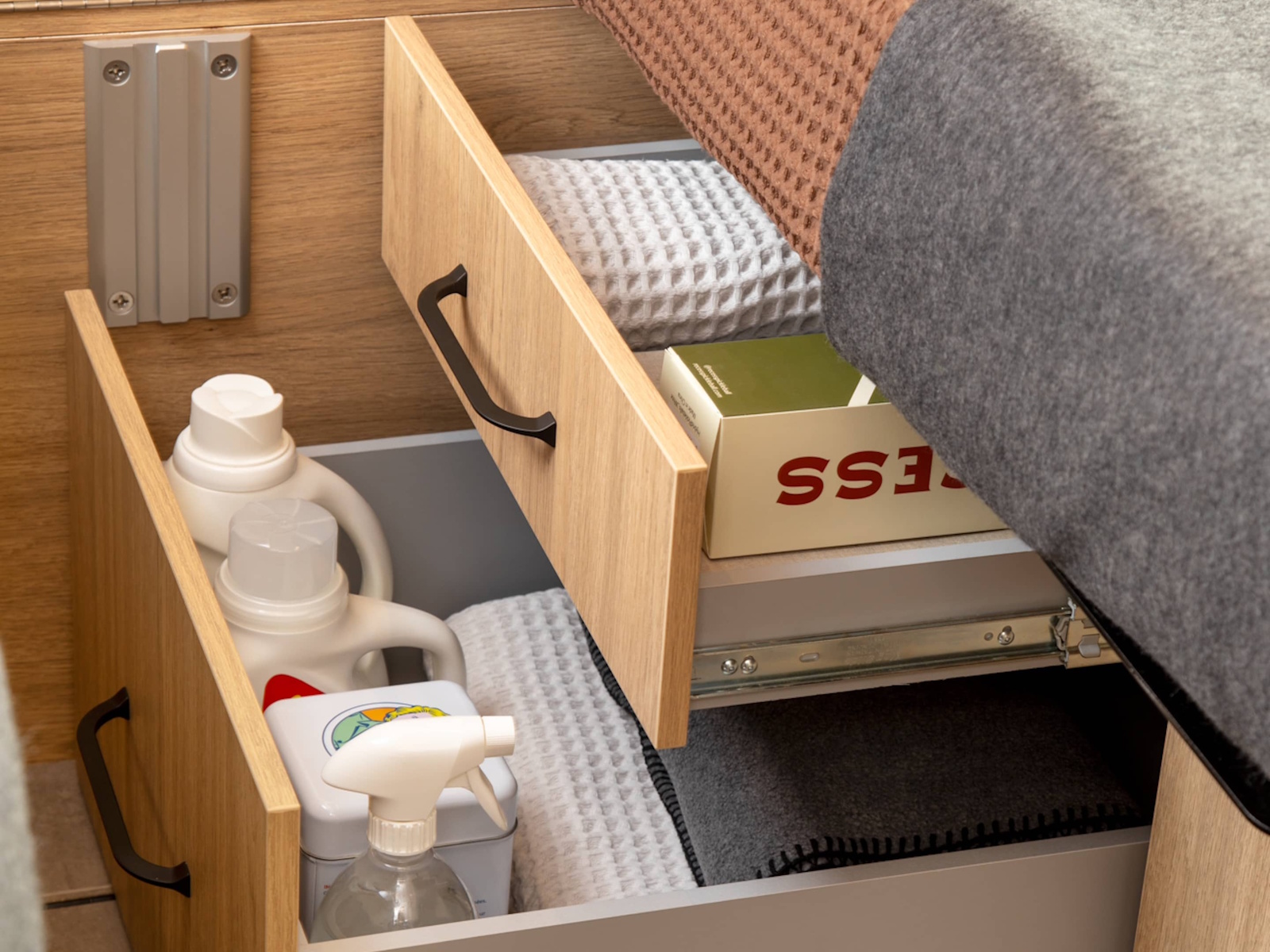

• Full Extension Ball Bearing Soft Close Drawer Tracks
• Illuminated Assist Handle
• LED Above-Cabinet Hidden Accent Lighting with Dimmer
• LED Ceiling Light Panels with Dimmer in Bedroom and Living Areas
• LED Recessed Strip Lighting Under Overhead Cabinets with Dimmer
• Opening Skylight with Screen and Shade
• Smoke, LP, and CO Detectors
• Soft Vinyl Ceiling Headliner
• Tile Look Vinyl Flooring Throughout

Furniture

• Ultrafabrics® Swivel Lounge with 2 Tables

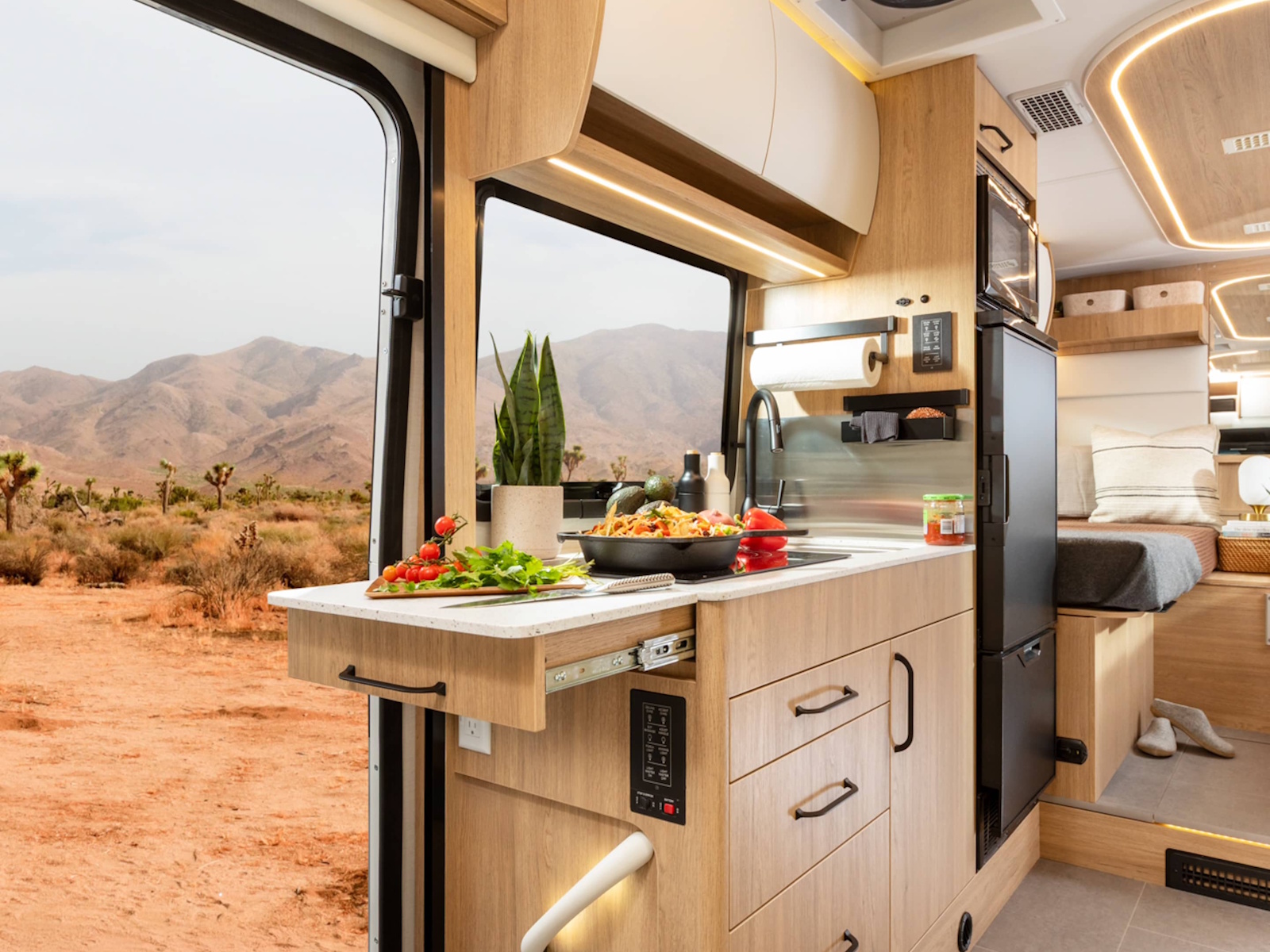

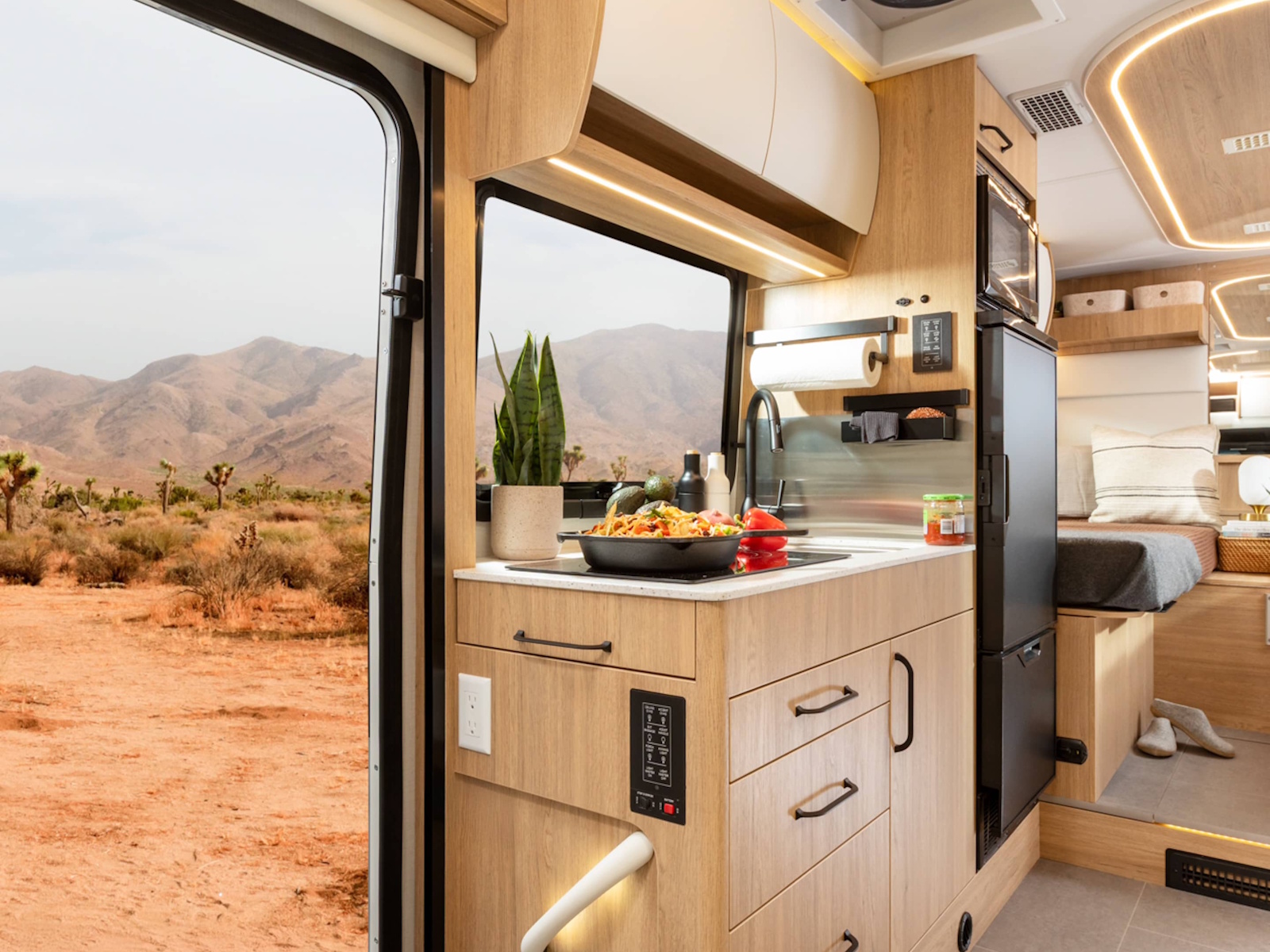

Galley

• Accessory Rail
• Contoured Solid Surface Corian® Countertop
• Convection Microwave Oven

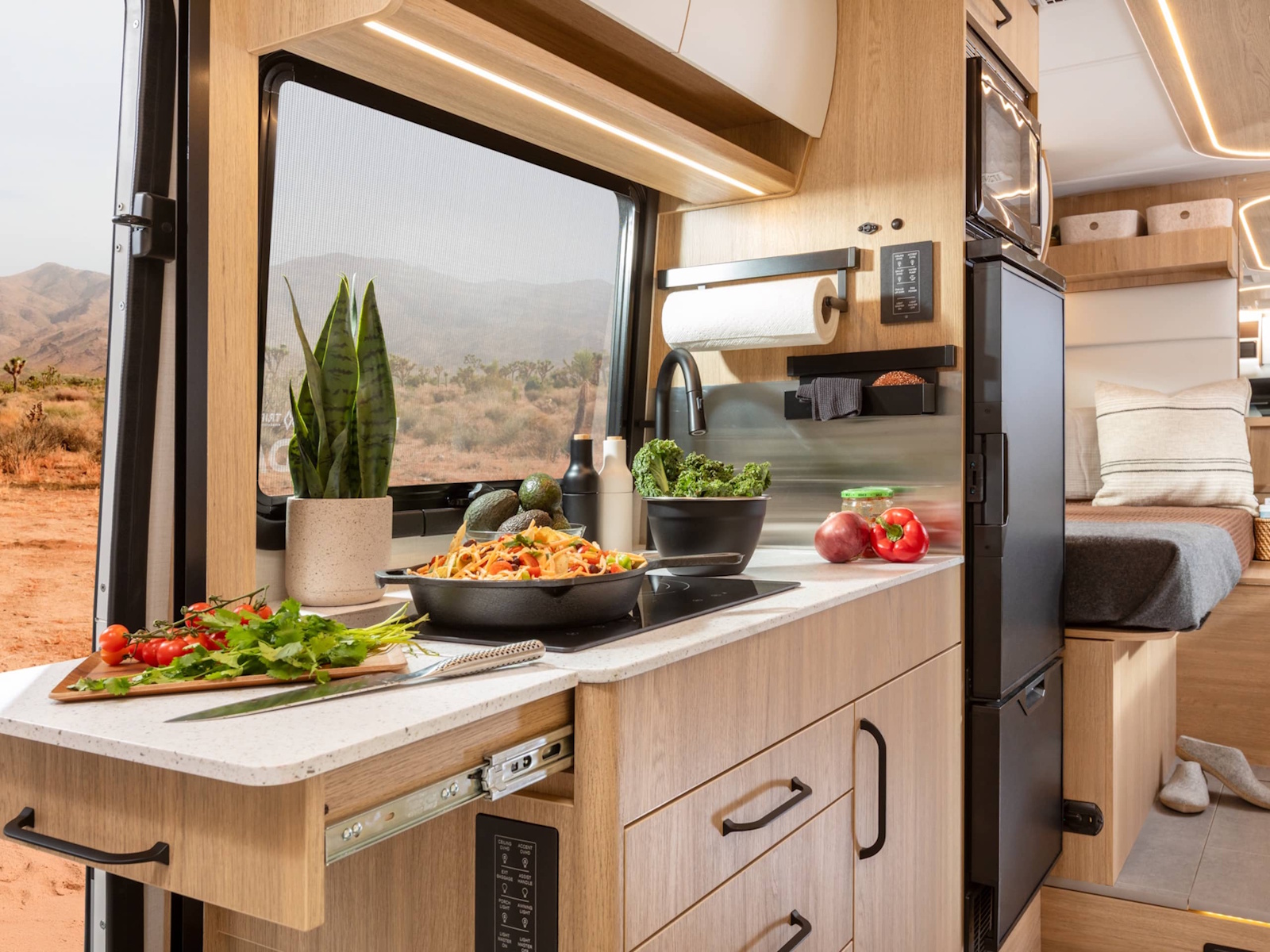

• Countertop Extension
• Compressor Refrigerator Freezer – Double Door, 6.2 ft³
• Garbage Can
• Induction Cooktop – 2-Burner

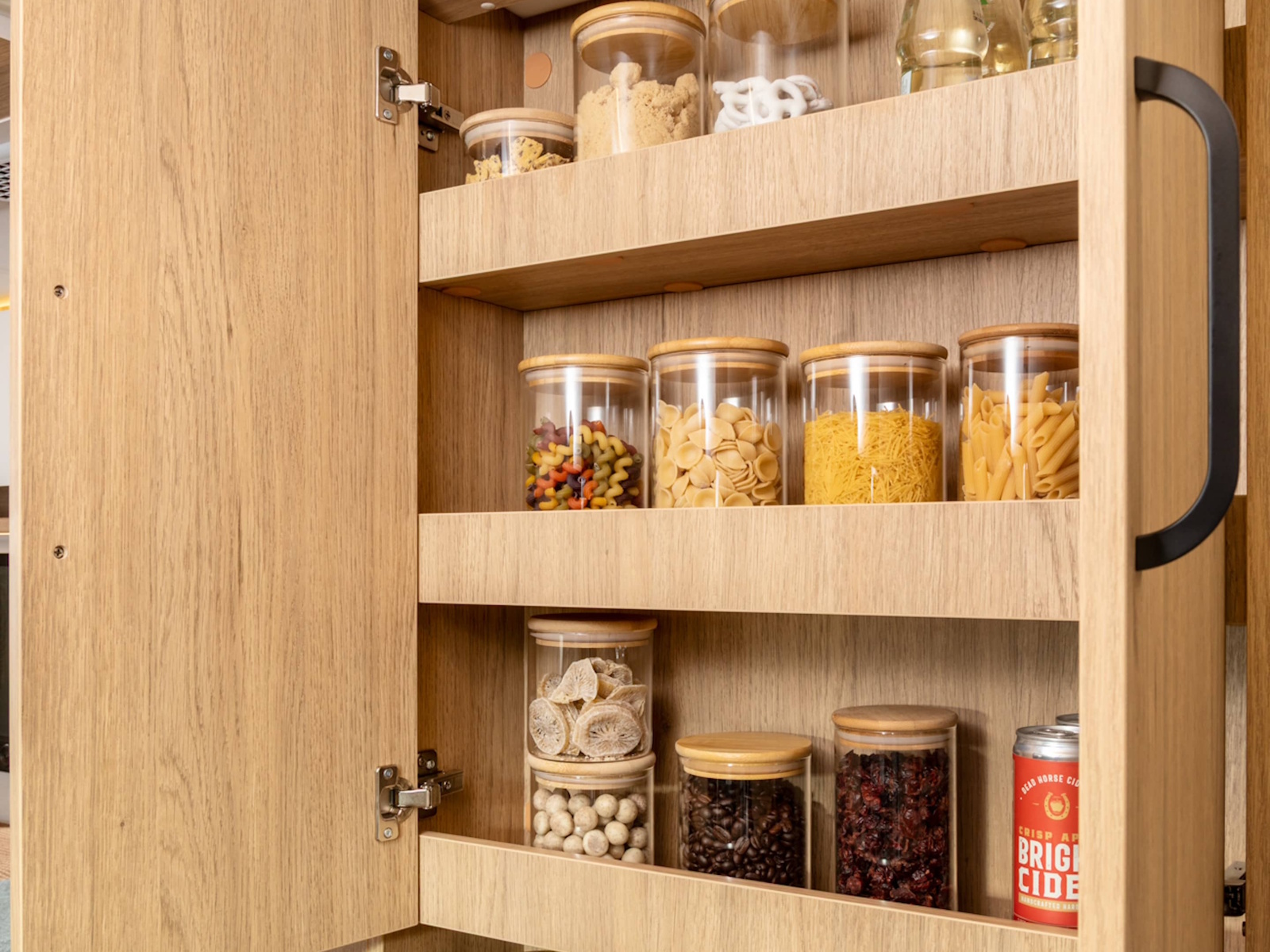

• Pull Out Pantry
• Stainless Steel Backsplash
• Stainless Steel Undermount Sink with Sink Cover

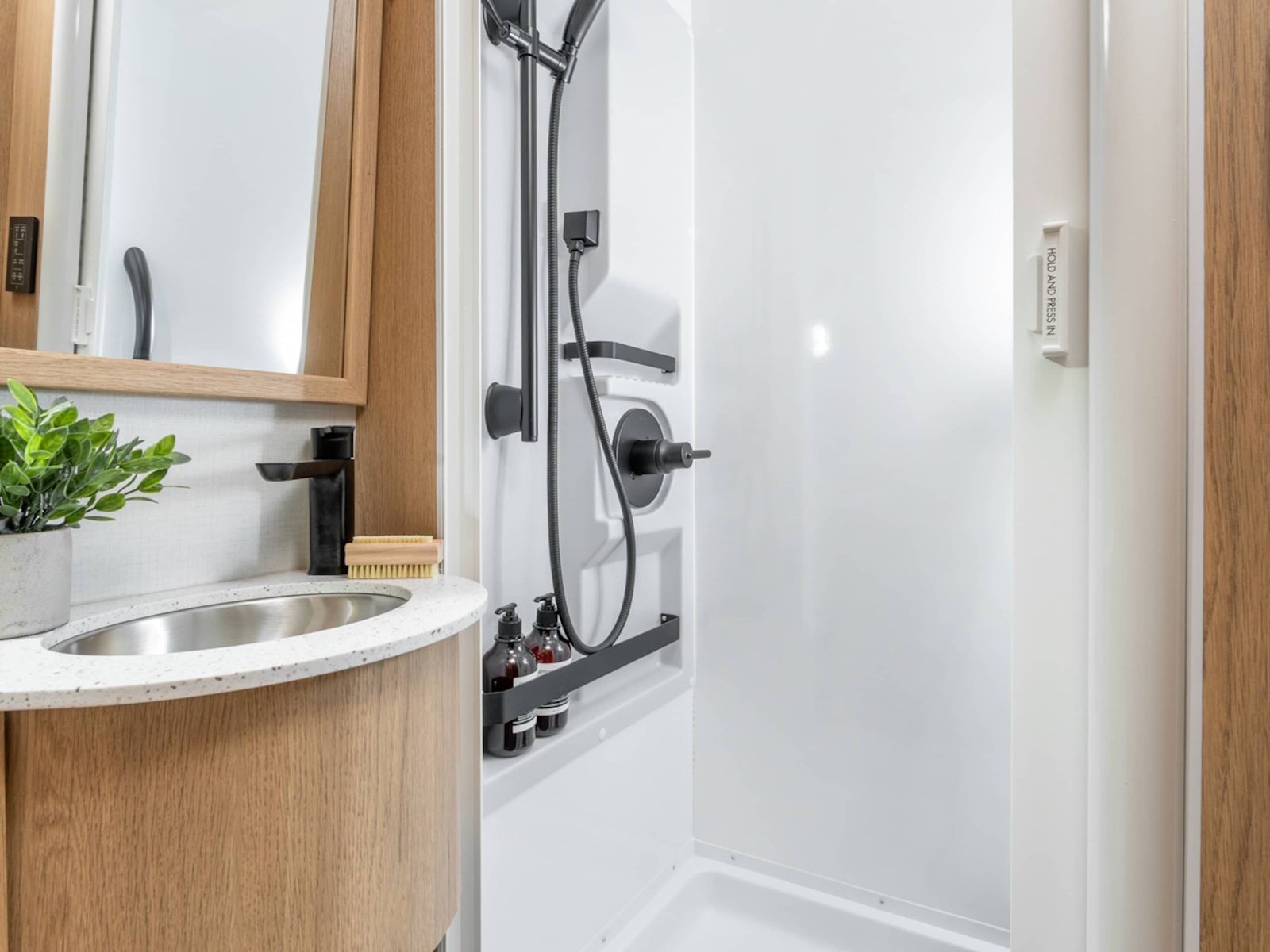

Lavatory

• Accessory Rail
• Ceramic Macerator Toilet
• Flip Down Towel Bar in Shower
• Grab Handle in Shower

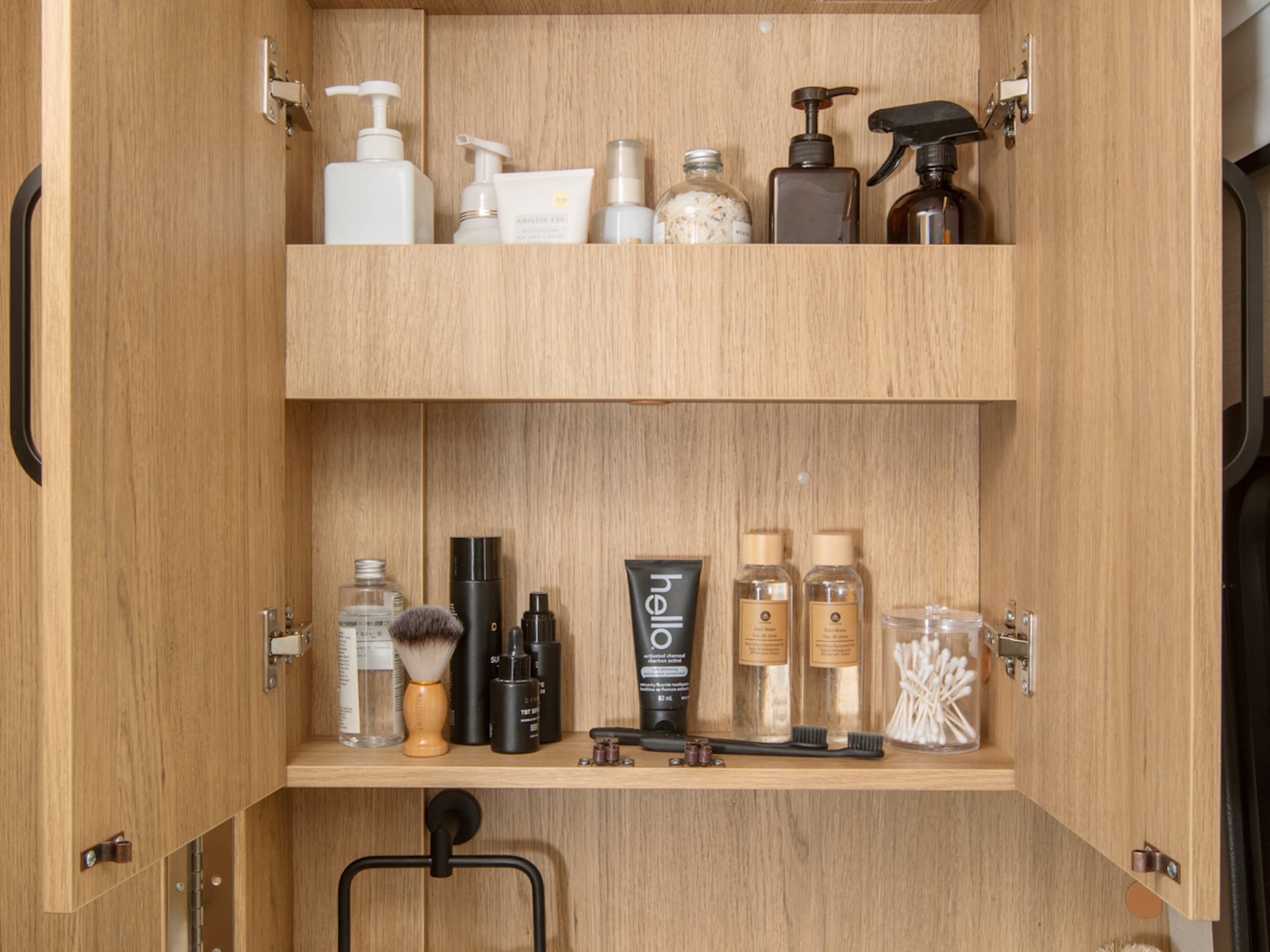

• Medicine Cabinet with Towel Bar
• Retractable Self Cleaning Shower Screen
• Robe Hook in Shower
• Shower with Integrated Storage
• Shower Skylight
• Sink – Stainless Steel Undermount
• Water Pump Switch in Lavatory

Entertainment

• Exterior Cable TV Hookup
• Mobile Data/Wi-Fi Extender with Integrated TV Antenna
• Satellite Dish Pre-Wire
• USB-A/USB-C Outlets in Bed and Living Areas

Heating, Ventilating, and Air Conditioning

• Air Conditioner – Truma Aventa Eco 13,500 BTU Ducted with Soft Start and Heat Pump
• Furnace – Truma Varioheat
• Lavatory Fan and Galley Fan

Electrical

• 120-V GFCI Protected Receptacles (Patio, Galley, and Lavatory)
• 120-V GFCI Protected Receptacle in Exterior Garage
• 12-V Battery Disconnect
• 12-V Battery Storage Disconnect
• 3000-W Pure Sine Inverter with 150-A Battery Charger
• 30′ Power Cord – 30 A
• 270-Ah 12-V Smart Lithium Coach Batteries with Internal Heating
• Multiplex Wiring Control System
• Surge Protector with Integrated Transfer Switch – Multiplex Integrated

Plumbing and LP Systems

• Antifreeze Pick Up Kit
• Black Tank Flushing System
• Contained Sewer Hose
• Exterior Shower
• Liquid Propane Tank
• Multiple Water Pump Switches
• Quick Connect Exterior Accessory LP Outlet
• Tank Level and Battery Voltage Monitoring
• Truma AquaGo Comfort Plus Water Heater
• Water Filtration System Water Heater Bypass Valve
• Water Selector Valve (City Water or Water Tank Fill)

Awning Packages

• Powered Legless Box Awning with Wind Sensor and LED Lights

Certification

• Canadian Certification – Mandatory for Canada
• RVIA Certification

Warranty

• Mercedes-Benz – Basic Limited, 3 Years/60,000 km (36,000 miles)
• Mercedes-Benz Engine – Powertrain Limited, 5 Years/160,000 km (100,000 miles)
• Triple E RV – 2 Year Limited Coverage, 40,000 km (24,000 miles)

Optional Equipment

• All-Wheel Drive Mercedes-Benz Sprinter 3500 Cab Chassis
• Alcoa Dura-Bright® Aluminum Wheels (6) – Outer 4 Dura-Bright Finished
• Alcoa Aluminum Wheels (6) – Black Finish
• All-Terrain Tires
• Battery Upgrade – Additional 270-Ah 12-V Smart Lithium Battery (540-Ah total)
• Black Accent Package – Black Exterior Badging & Assist Handle, Black Interior Fixtures & Hardware
• Desert Shadow Edition Décor Package – Includes Alcoa Aluminum Wheels (6) with Black Finish, Desert Shadow Badge, Black Exterior Badging & Assist Handle, Black Tail Light Bezels, Black Interior Fixtures & Hardware, Black Grille, Stone Overhead Cabinets & Backsplash
• Exterior Ladder
• Exterior Table
• Generator – 4.0 kW RVMP LP Generator with Auto Start and Auto Changeover Switch
• Jacks – 4 Point Leveling System
• Macerator – Termination with Manual Disconnect
• Overhead Cabinet Door Upgrade – Crystal White (Matte Finish)
• Safe
• Satellite – Auto Acquisition Winegard Road Trip 4 (DirectSD, DishHD, BellHD)
• Secondary Alternator – 255A Battery Charging System
• Solar Panels – 440 W Rigid Low Profile
