2026 Leisure Travel Vans Unity Rear Lounge Carbon

























Get in Touch
Description
2026 Leisure Travel Vans Unity Rear Carbon

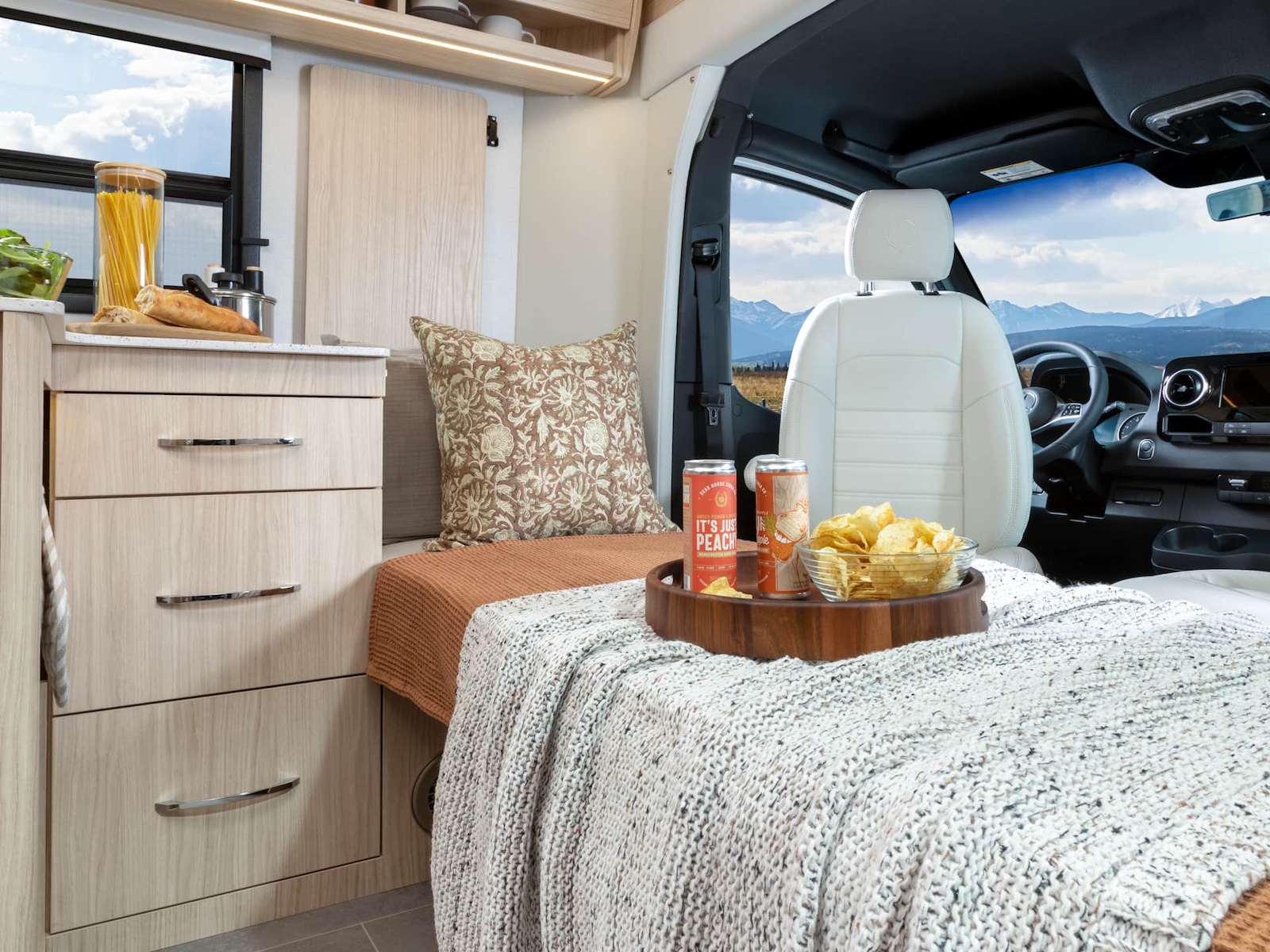

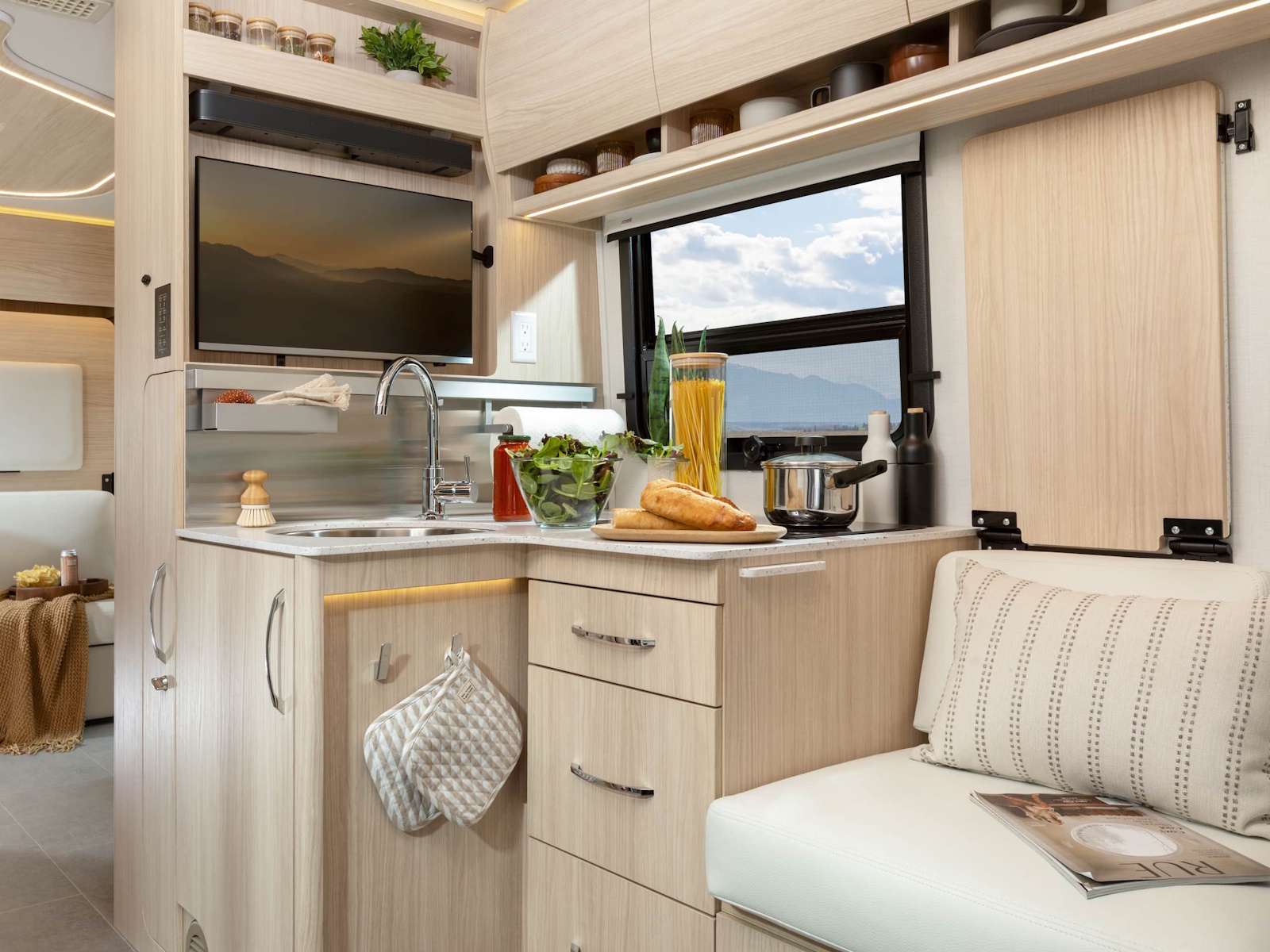

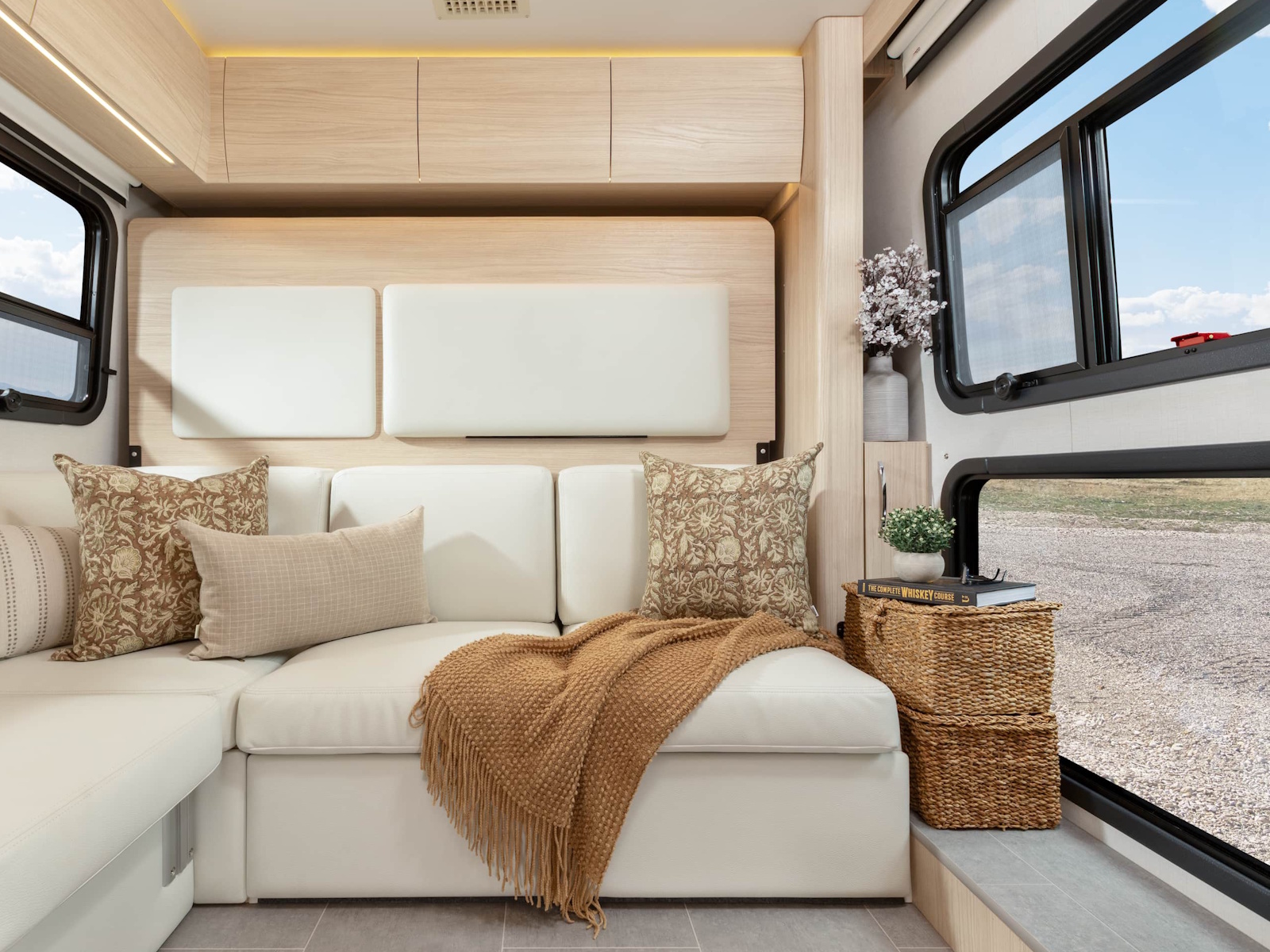

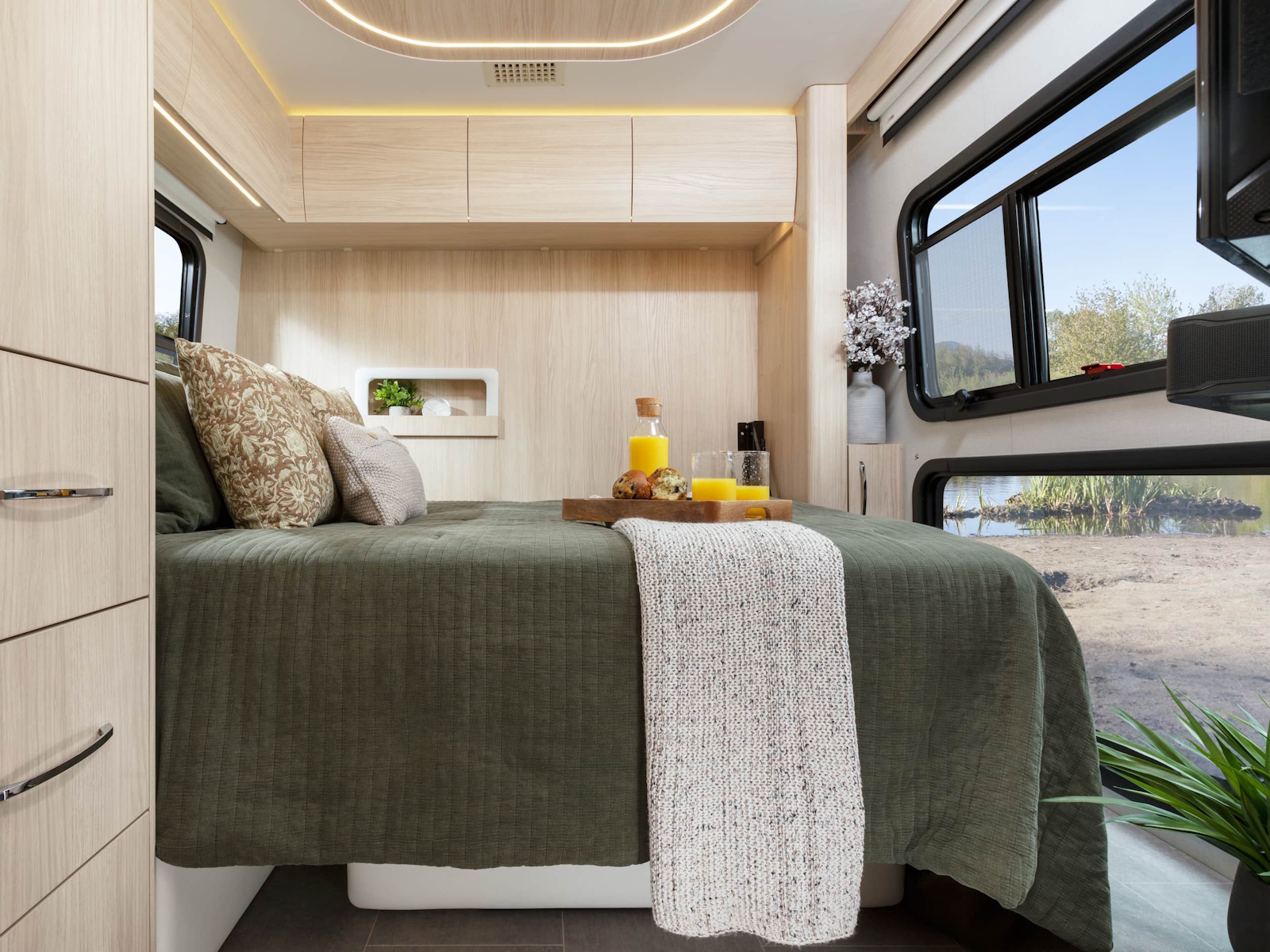

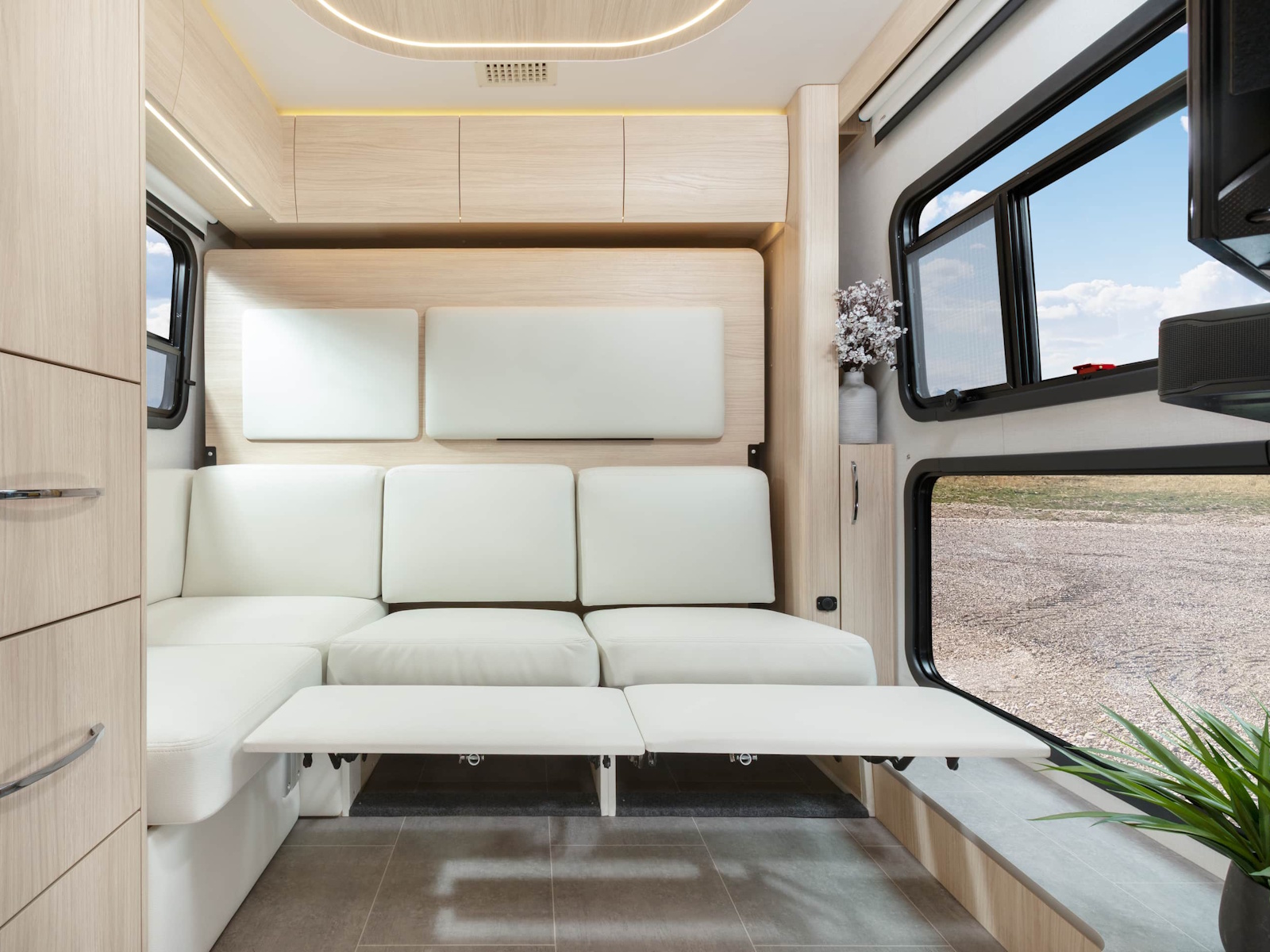

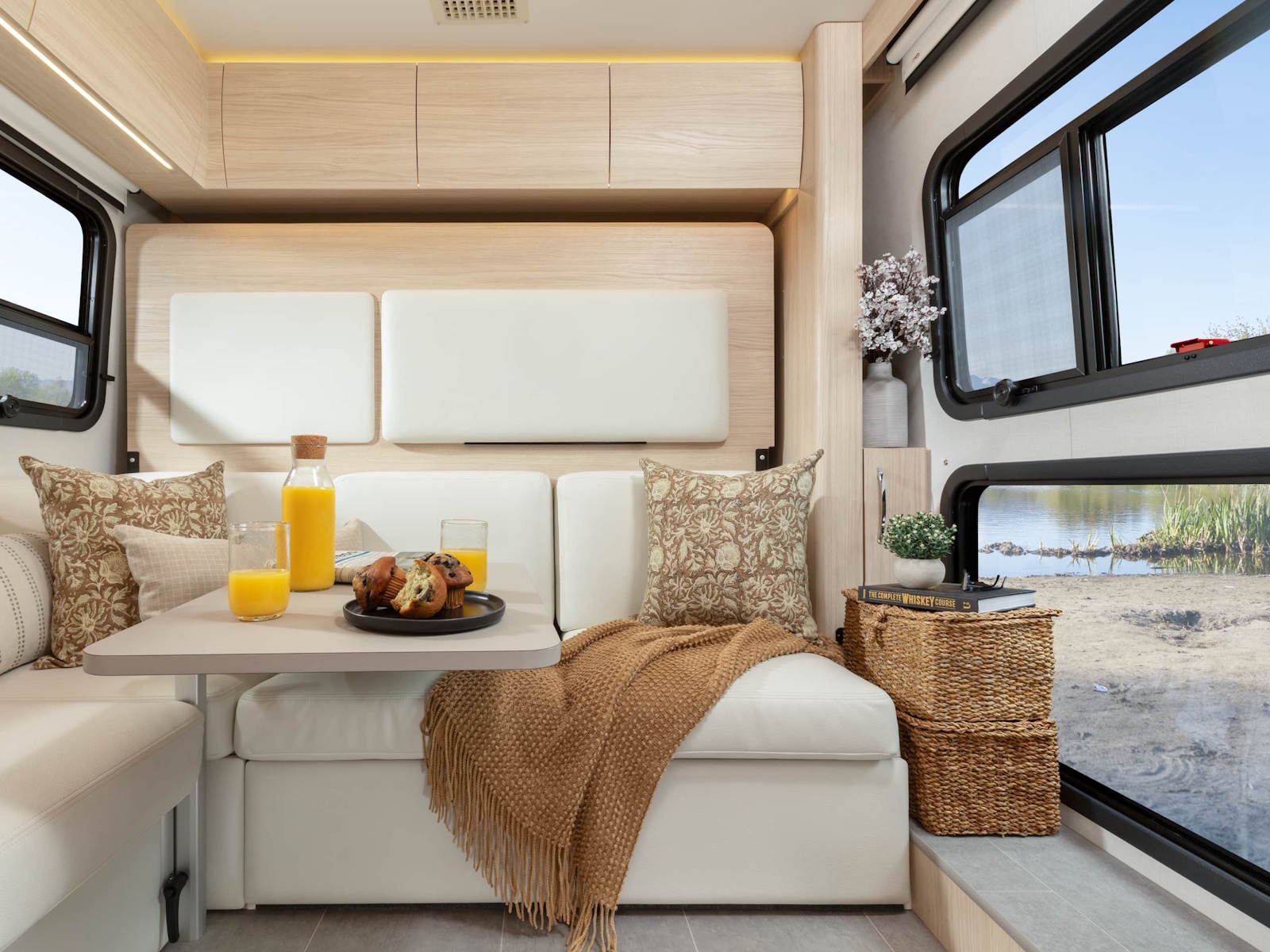

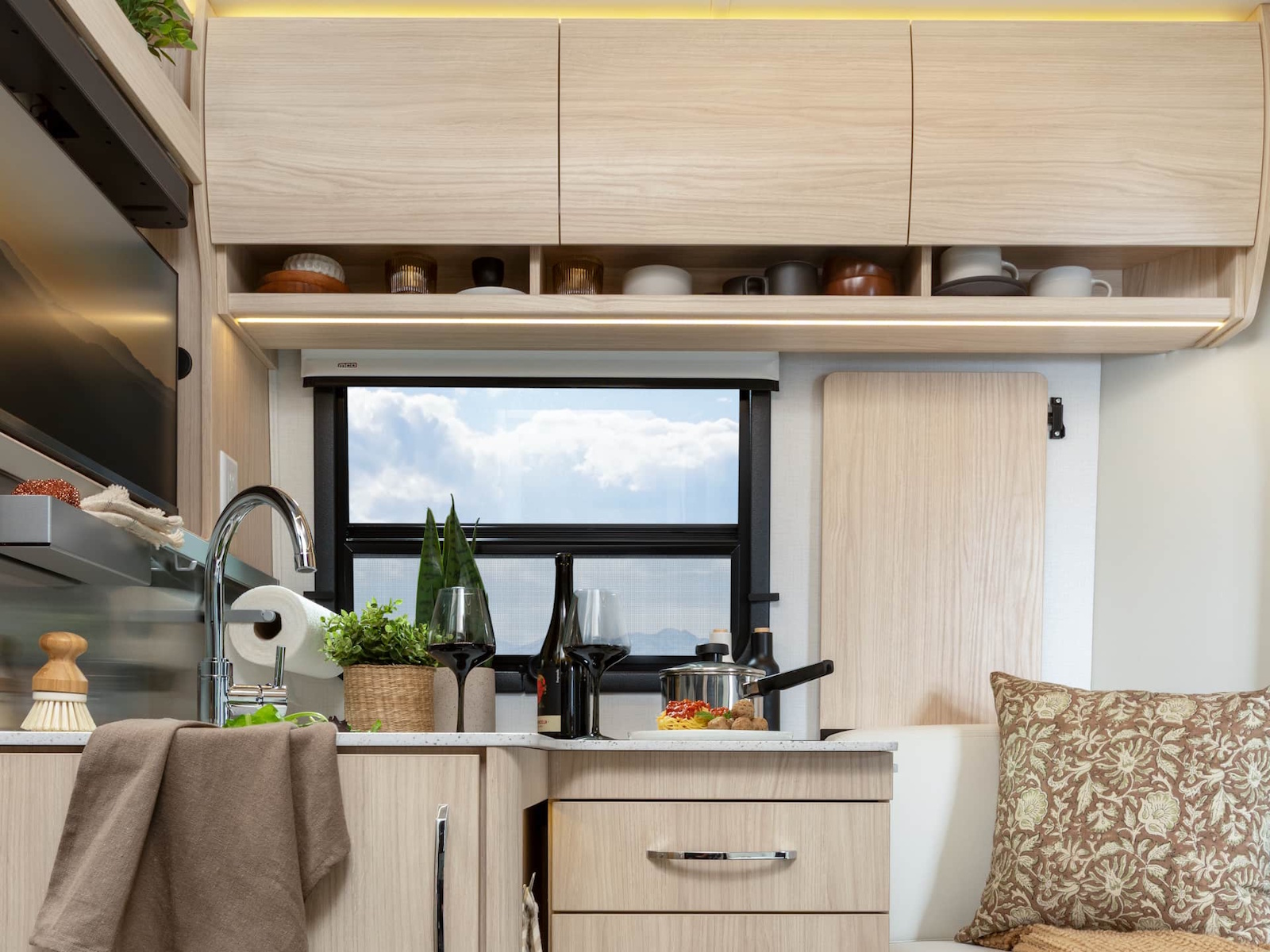

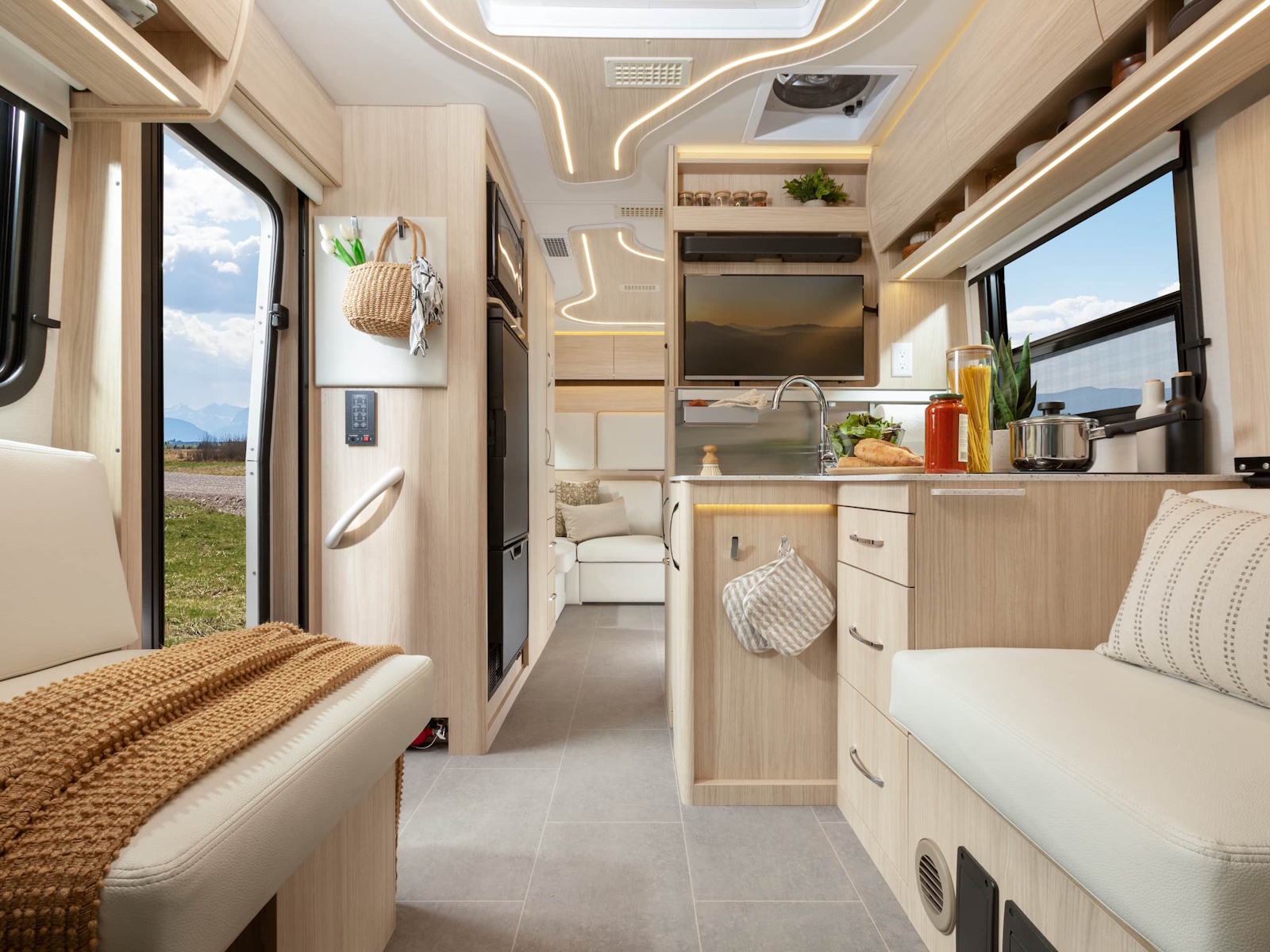

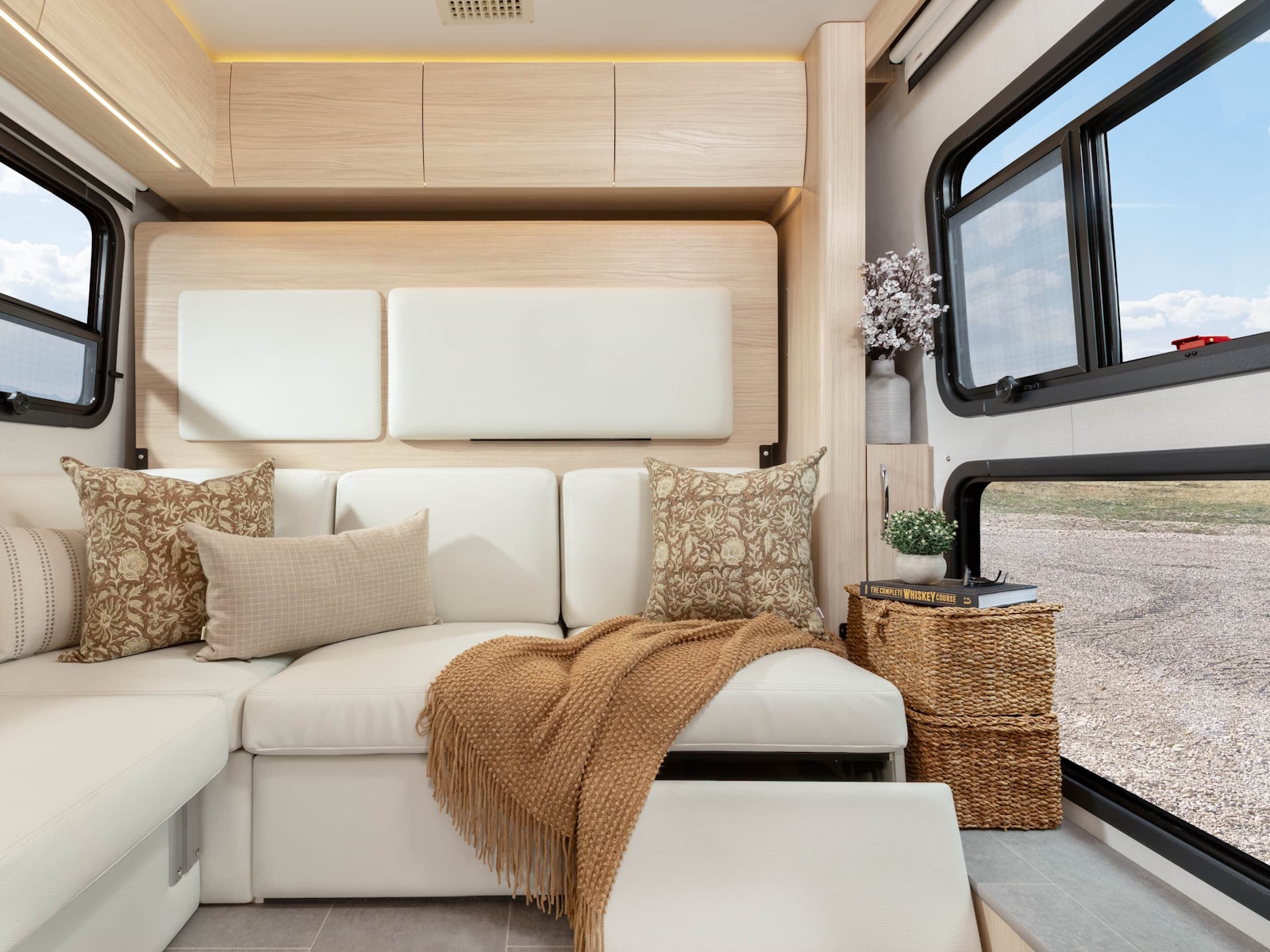

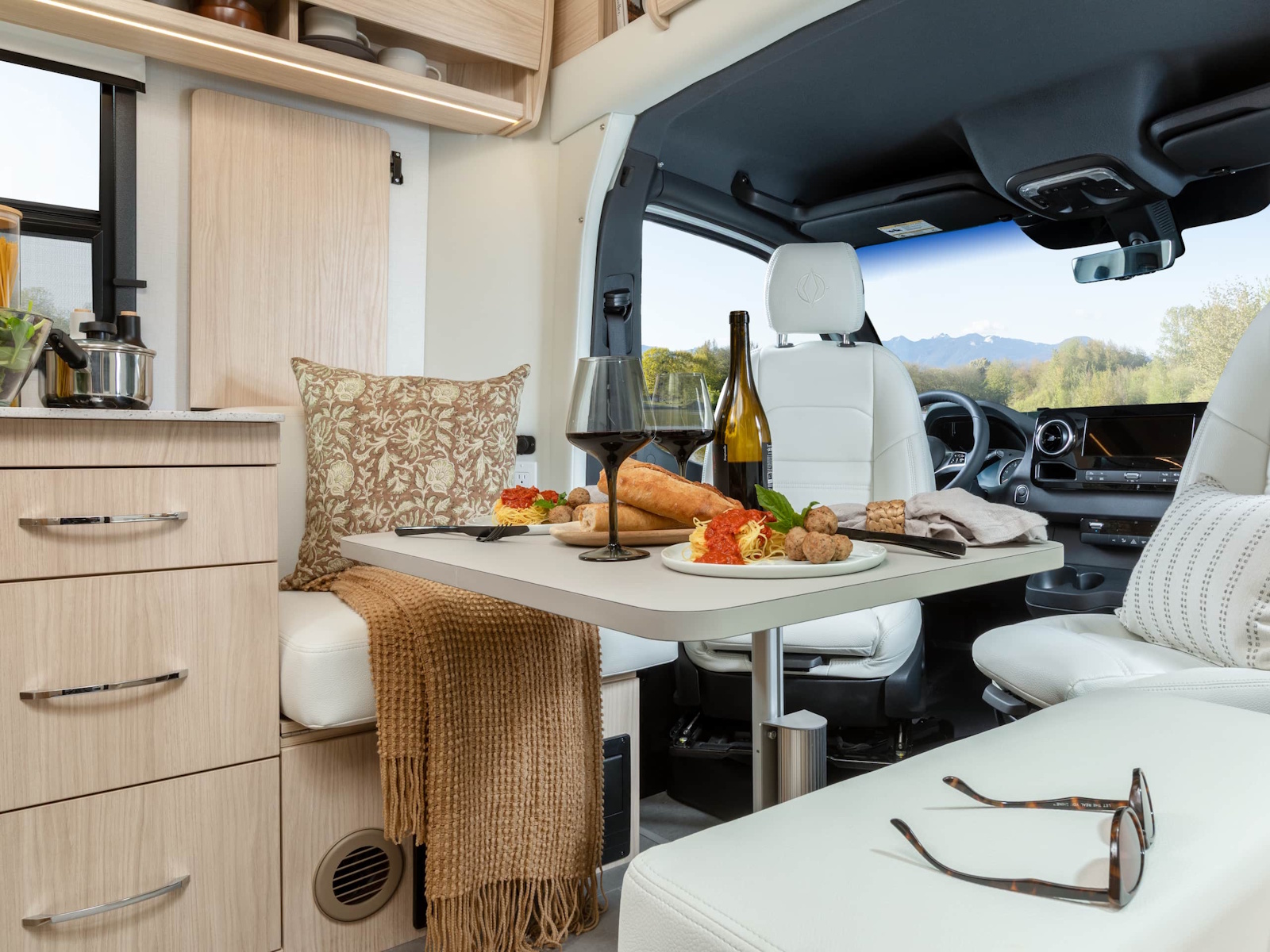

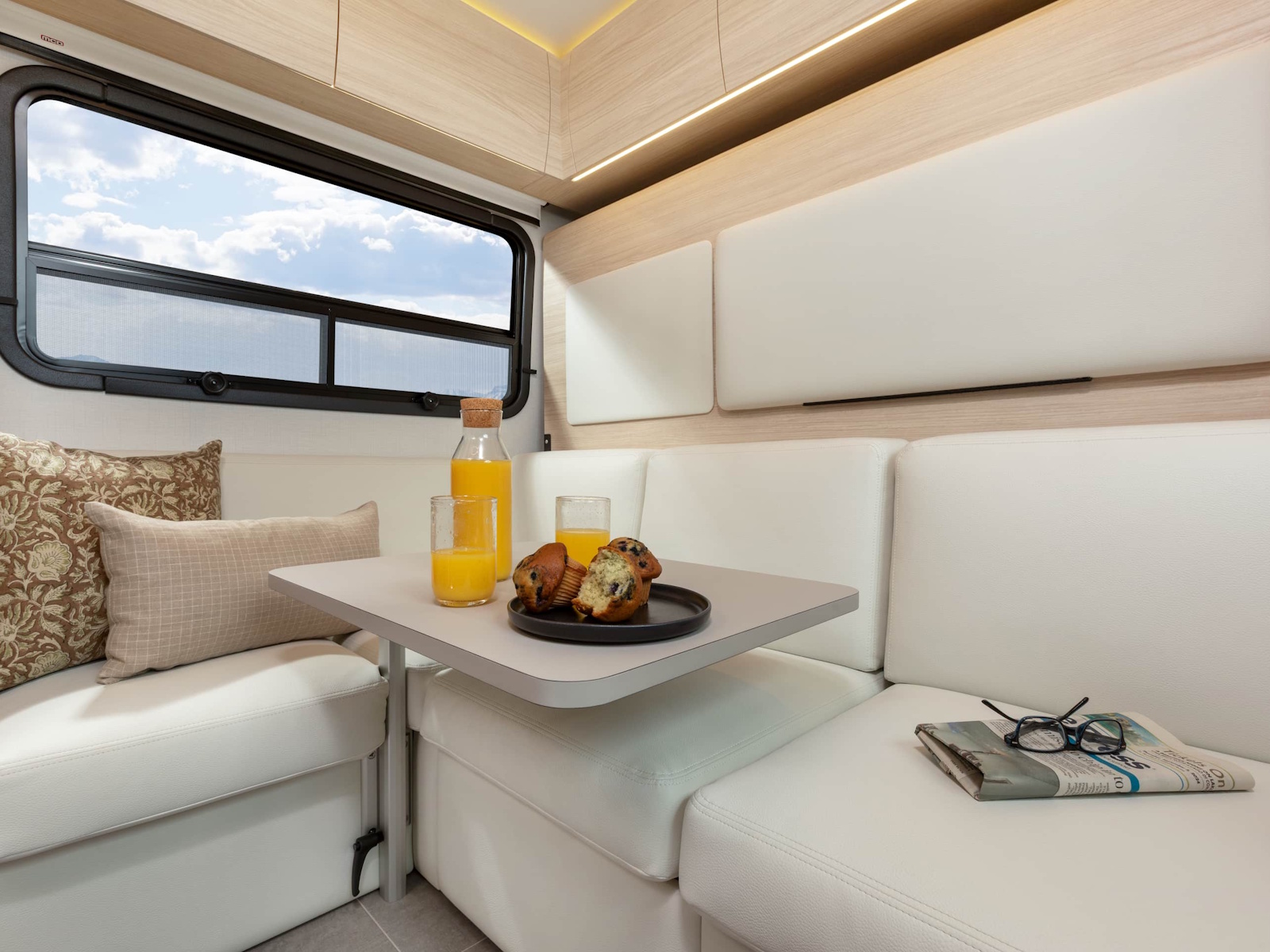

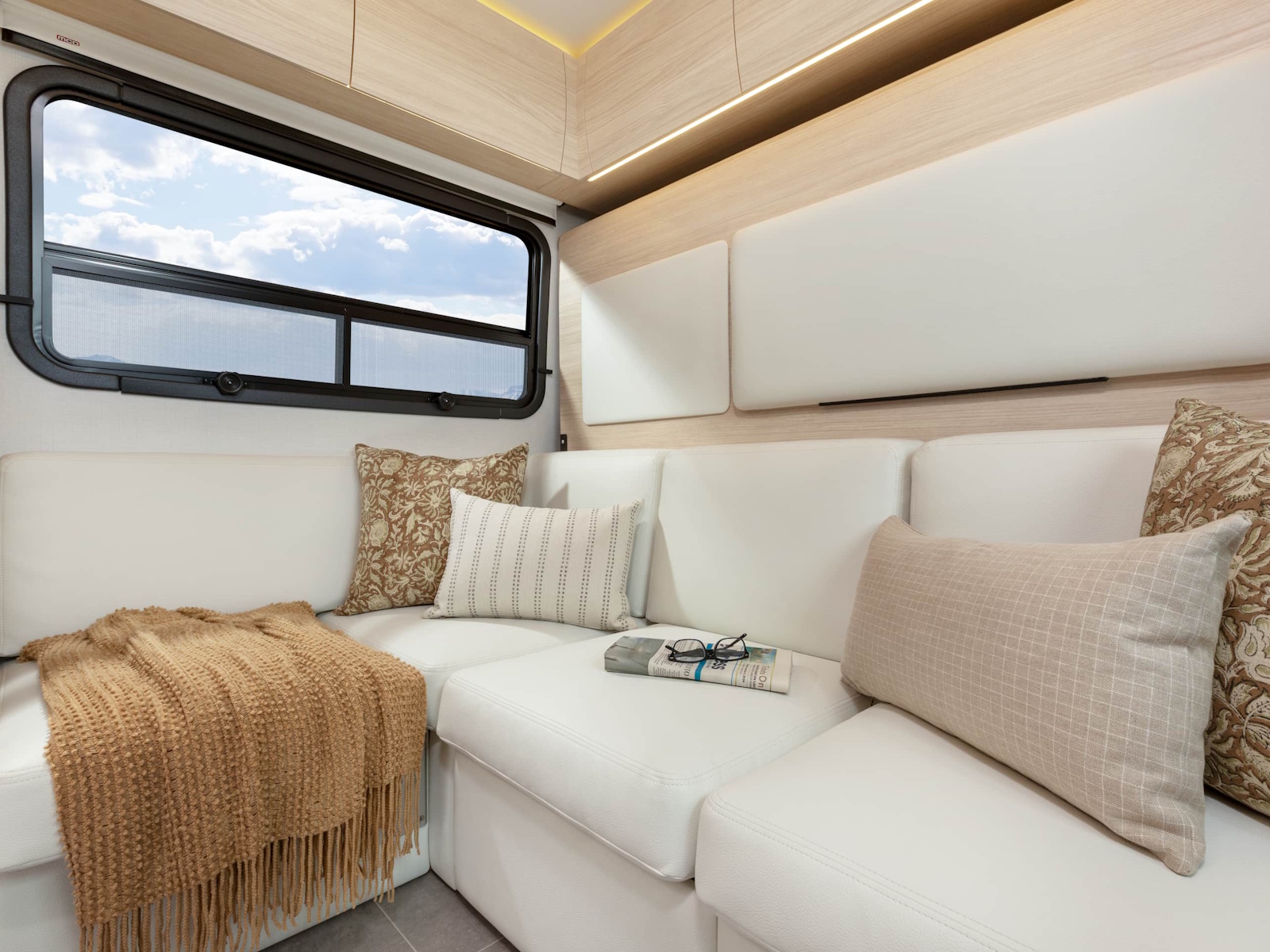

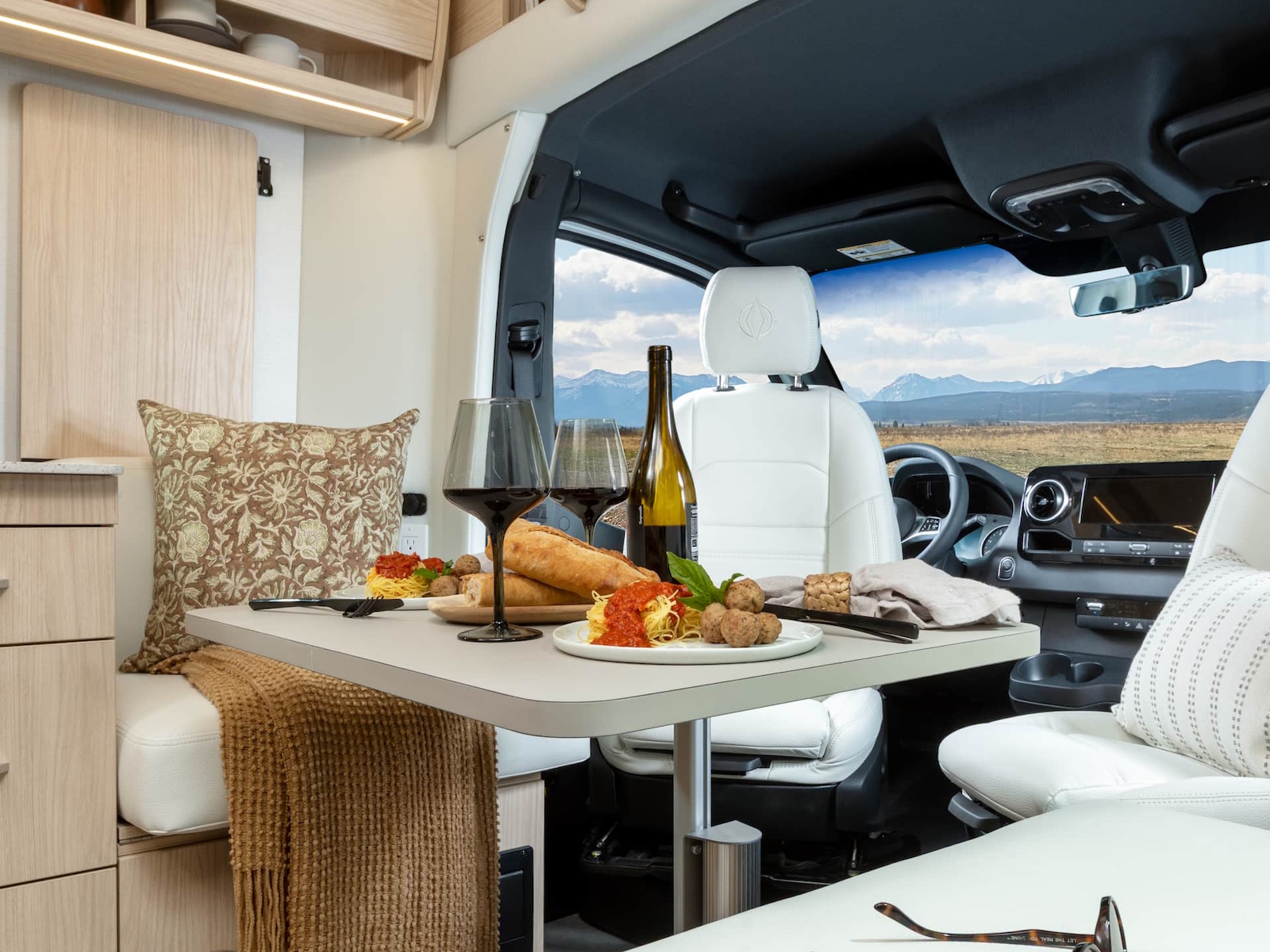

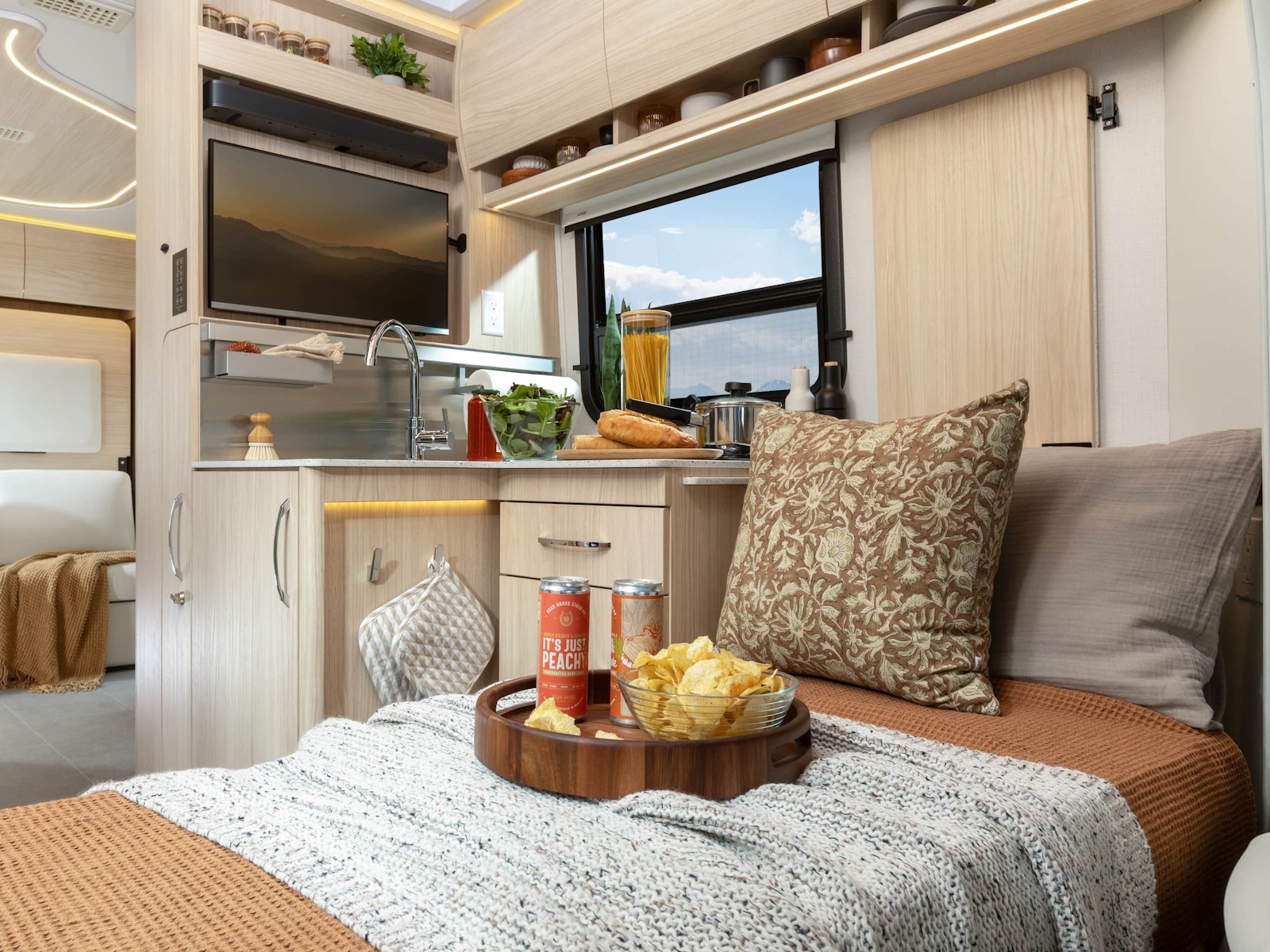

The Unity Rear Lounge features an innovative layout with two unique multi-purpose living spaces, creating a coach that easily adapts to your lifestyle and needs. Adjacent to the generous galley, find a removable front dinette that comfortably seats four and easily converts to a second bed (optional) for overnight guests. At the rear, a residential-style sectional sofa with two built-in lounge chairs and near floor-to-ceiling windows transforms into a luxurious master bedroom, thanks to a modern Murphy bed system.

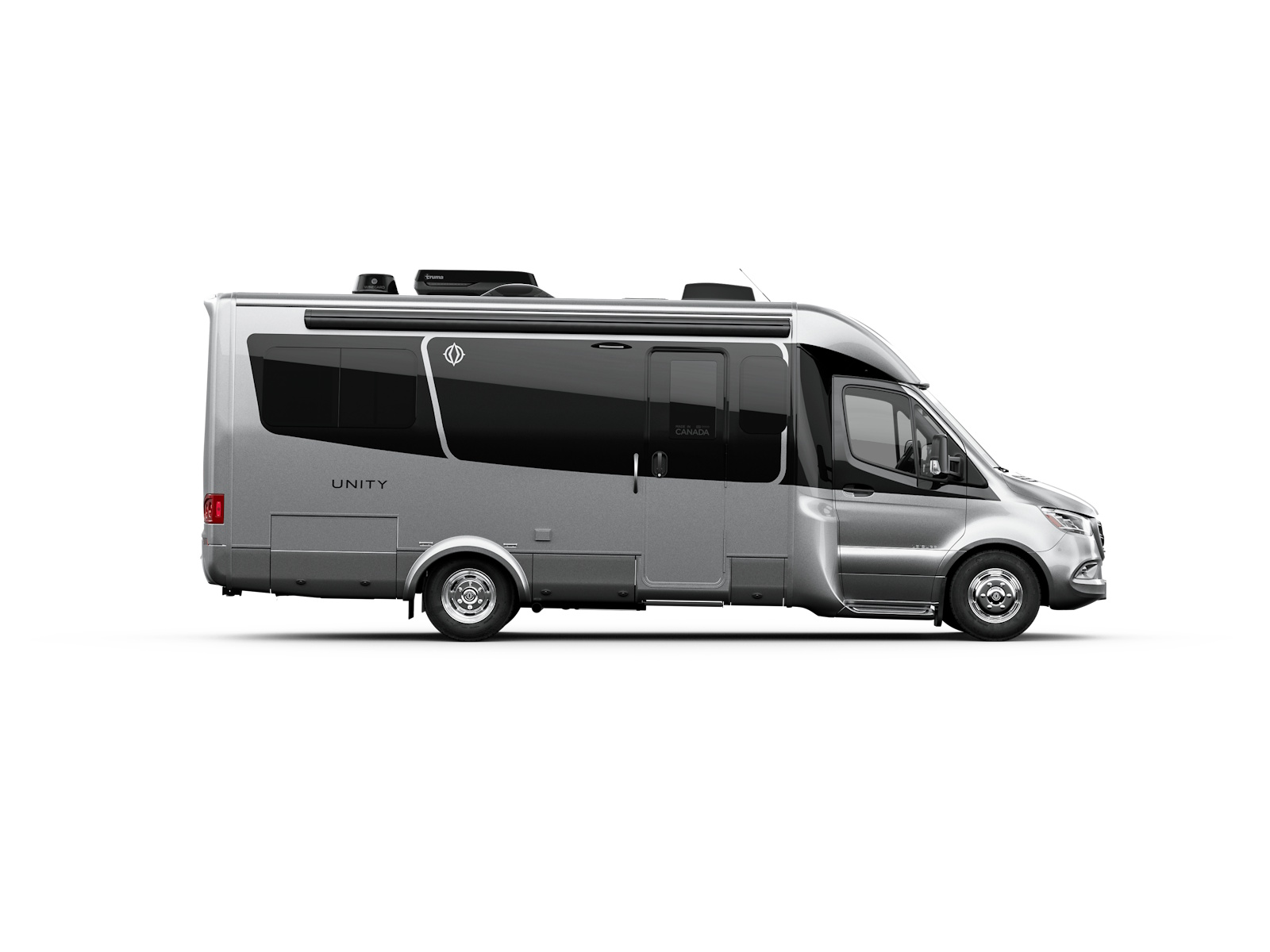

The Unity is available in ten stunning, European-inspired full-body paint options. Each Unity is painted using our five coat process, ensuring your Leisure Travel Van will look great for years to come.
Optional Features May Include:
- Alcoa Dura-Bright® Aluminum ® Wheels (6) – Outer 4 Dura-Bright Finished
- Battery Upgrade – Additional 270-Ah 12-V Smart Lithium Battery (540-Ah total)
- Black Accent Package – Black Exterior Badging & Assist Handle, Black Interior Fixtures & Hardware
- Exterior Ladder
- Exterior Table
- Exterior Entertainment Package (MBL)
- Front Dinette Inflatable Mattress Kit (RL, TB)
- Generator – 4.0 kW RVMP LP Generator with Auto Start and Auto Changeover Switch
- Jacks – 4 Point Leveling System
- Macerator – Termination with Manual Disconnect
- Overhead Cabinet Door Upgrade – Crystal White (Matte Finish)
- Removable Table between Captain’s Chairs (MBL, FX, CB)
- Safe
- Satellite – Auto Acquisition Winegard Road Trip 4 (DirectSD, DishHD, BellHD)
- Solar Panels – 440 W Rigid Low Profile
- Ultrafabrics® Leisure Lounge System Dinette with Power Reclining Chairs, Flexible Seating and Dining Arrangements (CB)
Info
Industry
RV
Make
Leisure Travel Vans
Model
Unity Rear Lounge
Trim
Carbon
Year
2026
MSRP
N/A
Category
Motorhome
Subcategory
Class C
Specs
GVWR
11030 lbs
Wheelbase
170 in
Fuel Capacity
24.5 gal
Fuel Type
Gas
Safety Features
Active Brake Assist | Active Distance Assist Distronic | Active Lane Keeping Assist | Attention Assist | Crosswind Assist | Digital Rearview Mirror | Emergency Call System Ready | Hill Start Assist | HOLD Function | Load-Adaptive Electronic Stability Program (ESP) | Traffic Sign Assist | Tire Pressure Monitoring System (TPMS) | Dry Chemical Fire Extinguisher | Smoke, LP, and CO Detectors
Width (Ext)
7 ft 11 in
Height (Ext)
10 ft 6 in
Length
25 ft 1 in
Interior
Height: 6 ft 4 in
Fresh Water
25.6 gal
Grey Water
35 gal
Black Water
35 gal
Propane (LP)
Liquid Propane Tank | Capacity: 15.8 gal
Beds
Manual Murphy Bed (58 in × 74 in Sleeping Area)
TVs

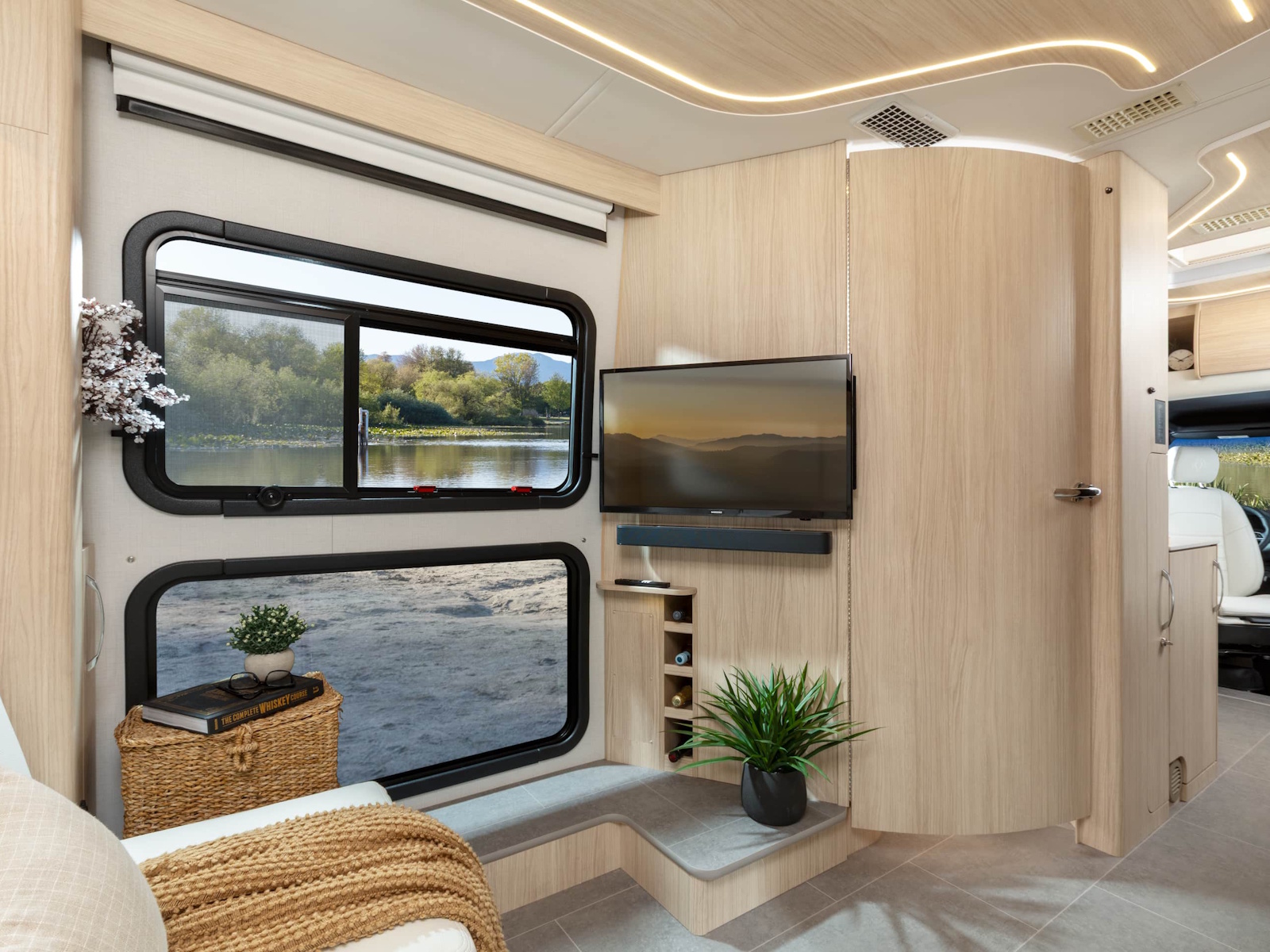

32 in Smart TV with Sound Bar | 27 in Smart TV with Sound Bar
Storage
Exterior: 23 cu ft
Chassis
Mercedes-Benz Sprinter 3500 Dual Rear Wheel Chassis
Frame
Vacuum Bonded Aluminum-Framed Insulated Contoured Sidewalls with Fiberglass Exterior
Refrigerator
Compressor Refrigerator Freezer – Double Door, 6.2 cu ft

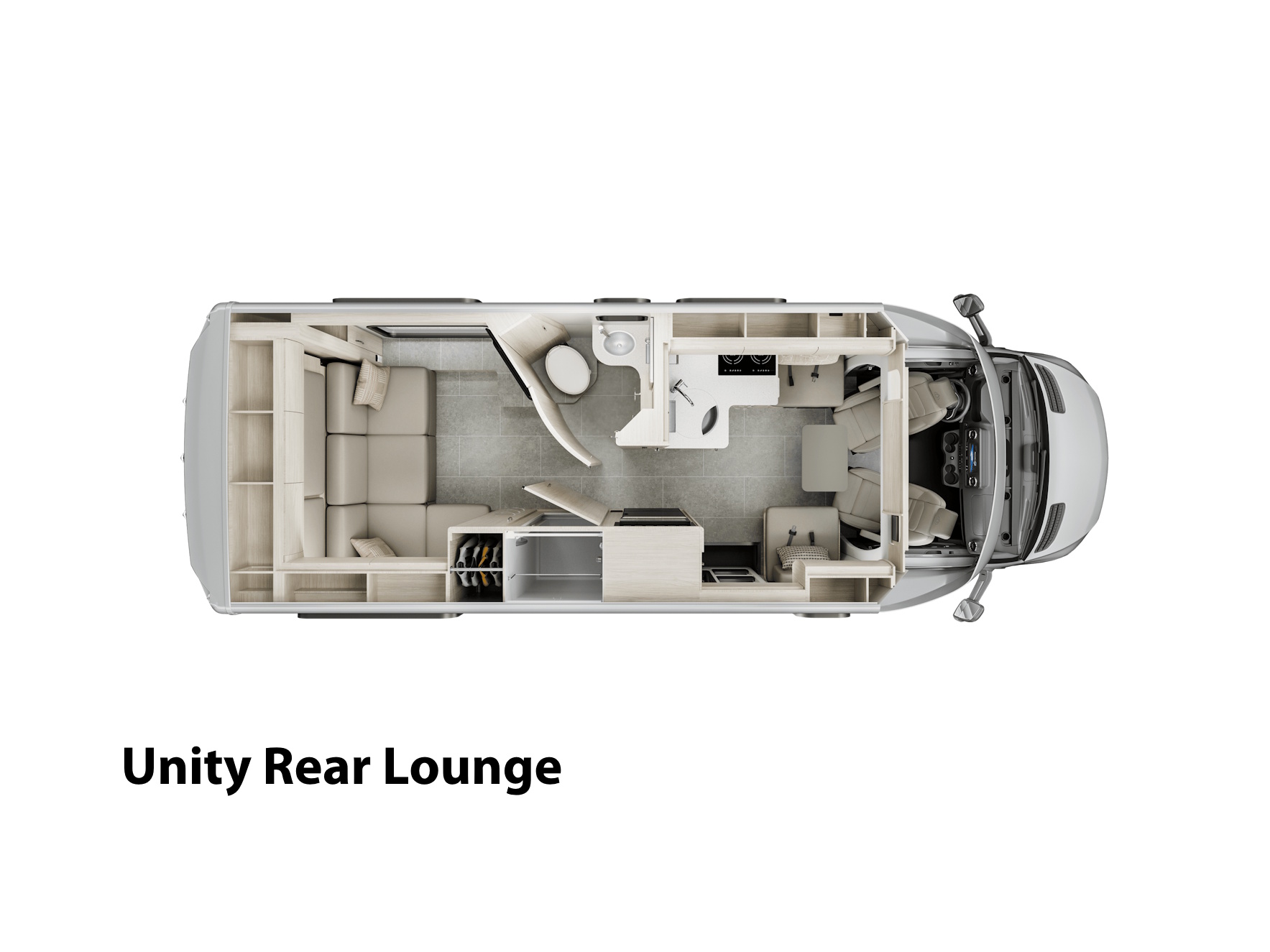

Floorplan
Rear Lounge
Cooktop
Induction Cooktop – 2-Burner
Shower

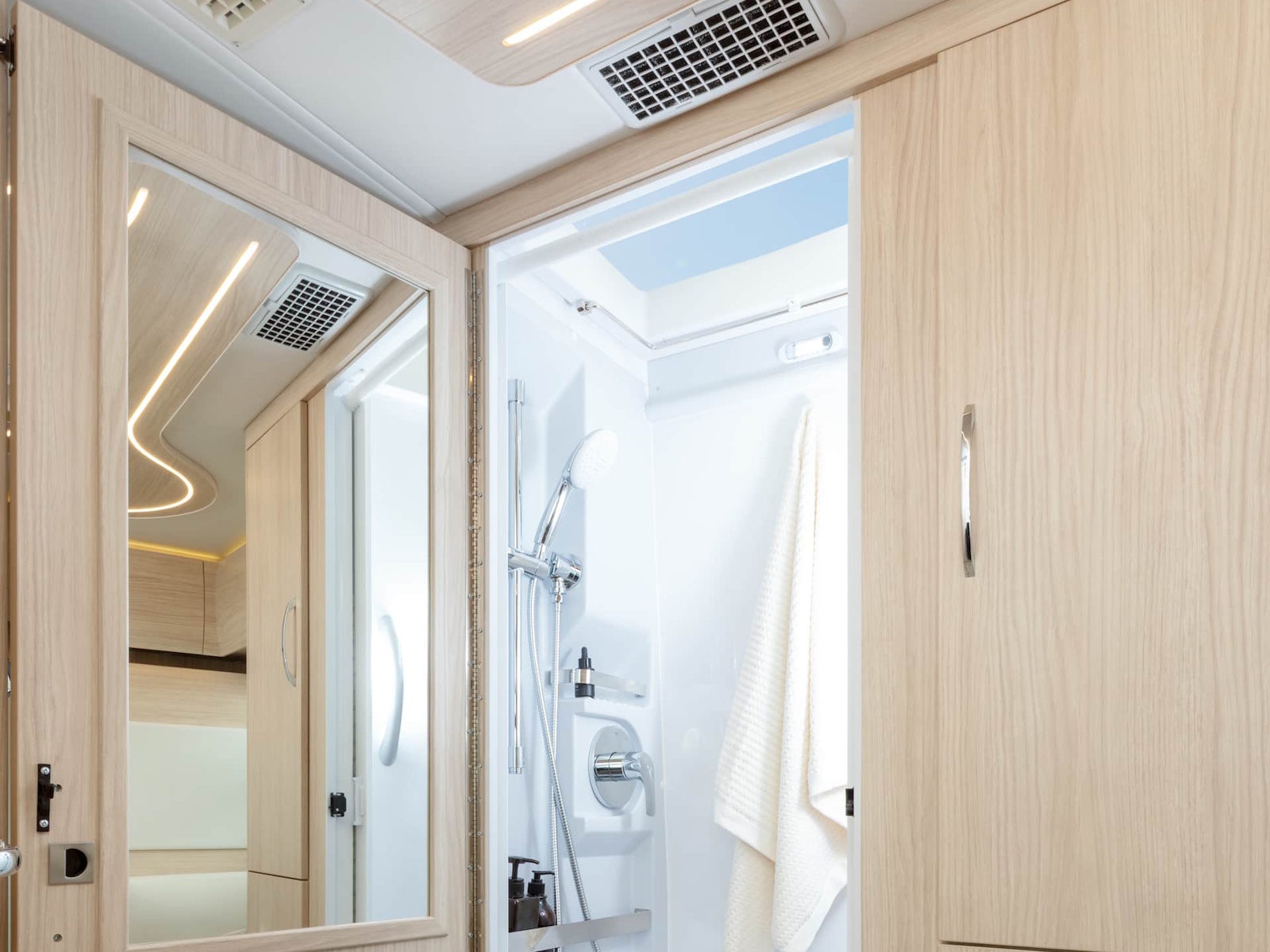

Shower with Integrated Storage | Exterior Shower | Shower Skylight |Robe Hook in Shower | Retractable Self Cleaning Shower Screen | Grab Handle in Shower | Flip Down Towel Bar in Shower | Curved Glass Shower Door
Air Conditioner
Air Conditioner – Truma Aventa Eco 13,500 BTU Ducted with Soft Start and Heat Pump |
Furnace
Furnace – 19,000 BTU
Power Inverter
3000-W Pure Sine Inverter with 150-A Battery Charger
Water Heater
Water Filtration System Water Heater Bypass Valve
Awnings
Powered Legless Box Awning with Wind Sensor and LED Lights
Warranty
Mercedes-Benz – Basic Limited, 3 Years/60,000 km (36,000 miles) | Mercedes-Benz Engine – Powertrain Limited, 5 Years/160,000 km (100,000 miles) | Triple E RV – 2 Year Limited Coverage, 40,000 km (24,000 miles)
