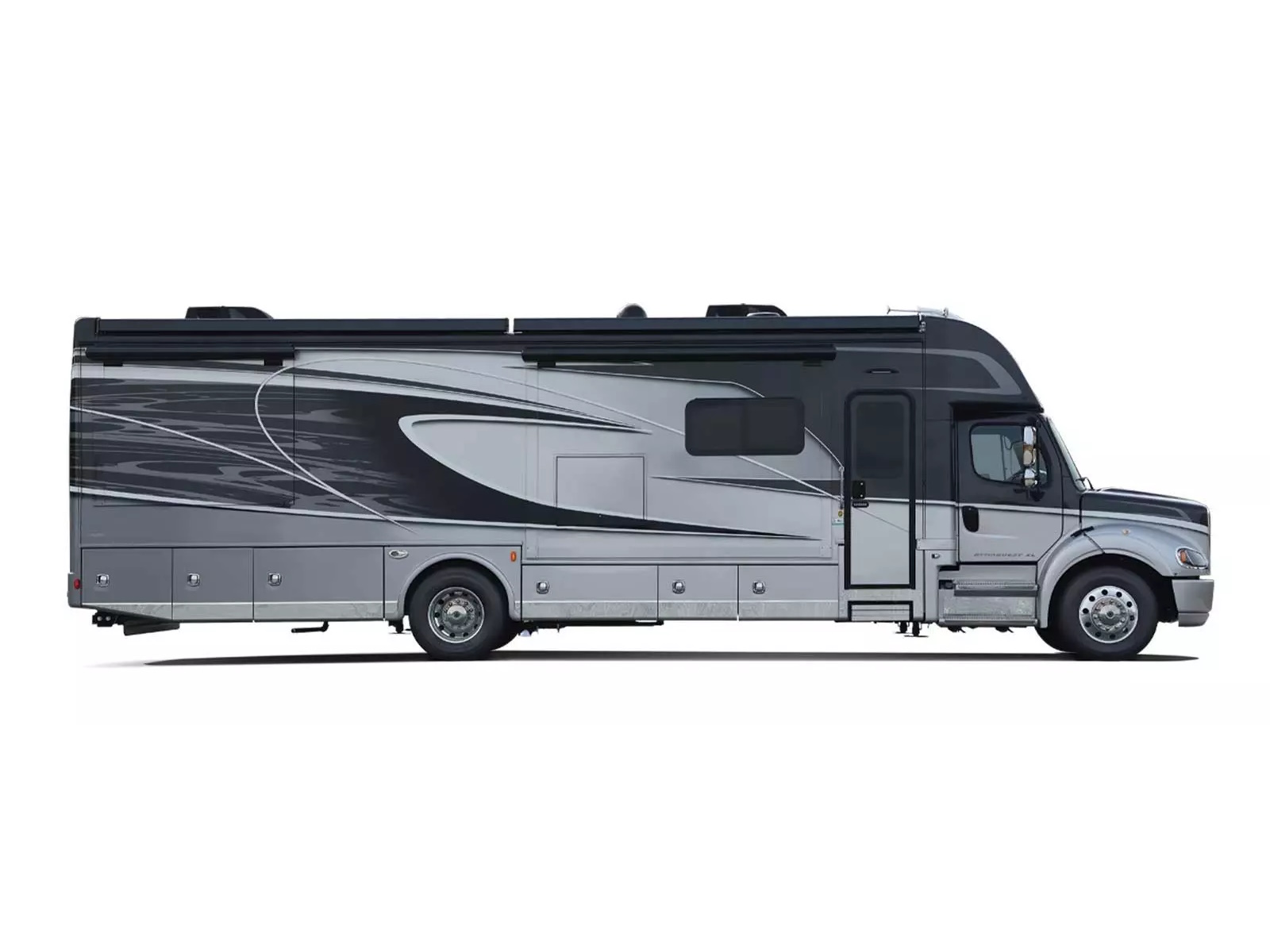

2026 Dynamax DynaQuest XL 3801TS Titanium

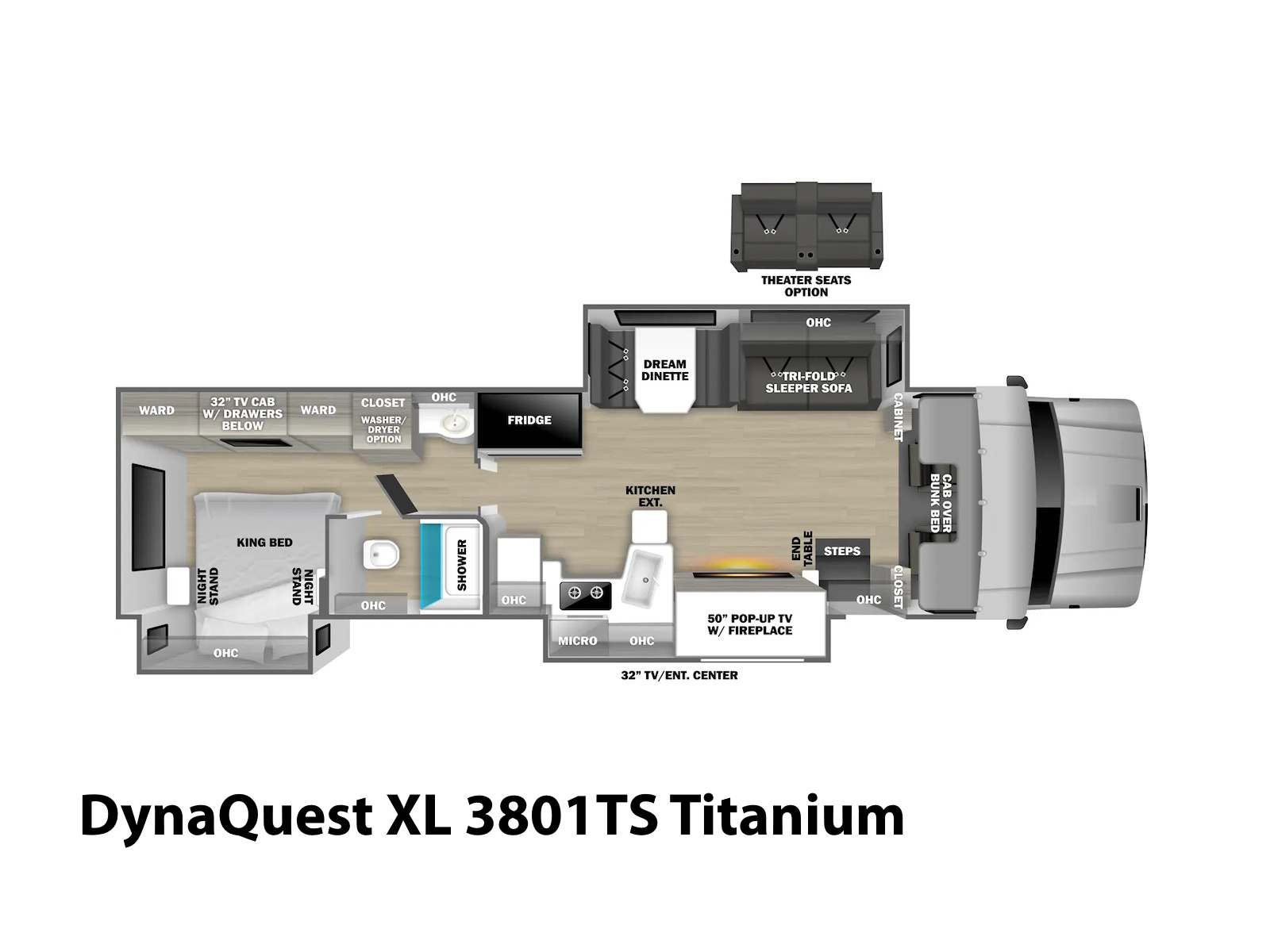

This 39'8" triple slide floorplan features the most spacious living area of the DynaQuest XL floorplans. This floorplan features opposing living area slides. The passenger side slide contains a pop-up TV and a fully equipped kitchen, while the driver's side slide out contains a standard booth dinette and sofa. This floorplan also features a midship split bathroom and a rear master bedroom with king bed.

Features may include:

• Freightliner M2 112 PLUS Chassis (33,000-lbs. GVWR / 54,000-lbs. GCWR)
• Cummins L9 Turbo Diesel Engine (450hp / 1,250 lb-ft. of Torque)
• Allison 3200 TRV Six-Speed Automatic Transmission
• 4.78 Rear Axle Ratio
• Trailer Hitch (20,000 Tow lbs. / 2,000 Tongue lbs.) with 7-Way Round Tow Connection
• 100-Gallon Fuel Capacity (Twin 50-Gallon Aluminum Fuel Tanks) with Equiflo Inboard Fuel System
• 6-Gallon Diesel Exhaust Fluid Tank
• 275-Amp Alternator
• Air Brakes with 4-Wheel ABS
• Fuel Filter/Water Separator with Primer Pump
• C-Brake by Jacobs with High/Low Settings
• Brake Controller
• Airliner 21,000-lb. Rear Air Suspension
• Manual Air Suspension Dump Valve Switch on the Dash
• Rear Locking Differential
• Active Brake Assist
• Front Collision Warning
• Lane Departure Warning
• Cruise Control
• Steel-Reinforced, Aluminum Cab
• Chrome Grille
• LED Headlights
• Fog Lights
• Daytime Running Lights
• Tinted Door Glass and Wing Windows
• Front and Rear Tires: 275/80R22.5 (14 Ply Radials)
• Single Front Wheels: Alcoa Aluminum (22.5" x 8.25") *Outside Rims are Polished
• Dual Rear Wheels: Alcoa Aluminum (22.5" x 8.25") *Outside Rims are Polished
• Valve Extensions
• Tire Pressure Monitoring System
• Quick Disconnect Fitting with Tire Inflation Kit
• Engine Block Heater
• Leatherette Driver and Passenger Air Ride Seats with Air Lumbar Controls
• Quad-View Camera System (Right Side, Left Side, Hitch, and Rear Horizon Views)
• Sony 10.1" HD Touch Screen Dash Infotainment System with AM/FM, Bluetooth, Sirius/XM (tuner and antenna), Wired and Wireless Apple CarPlay / Android Auto Connectivity, USB-C Port, and High-Resolution Audio
• JBL Premium Cab Sound System - JBL full range/tweeter coaxial speakers, dual voice coil subwoofer, and a high-efficiency, high-performing, 4-channel DSP amplifier, all "Tuned" specifically for the Freightliner M2
• 12V Accessory Ports
• Chassis Battery Shut Off Switch in Cab
• Dual Air Horns
• One Valve Parking Brake System with Warning Indicator
• Engine After-Treatment Device, Automatic Over-the-Road Regeneration, and Dash-Mounted Regeneration Switch
• Momentary Battery Booster Switch for Connecting Chassis and House Batteries
• Marker Lights with Separate Interrupter Switch
• Low Air Pressure Light and Buzzer
• Adjustable Steering Column
• 18" Leather-Wrapped Steering Wheel
• Power and Heated Exterior Mirrors
• Power Windows and Locks
• 3-Point Seat Belts
