2025 DRV MS 40KSSB4 Capetown Veil

Features May Include:

Top Selling Features

• 15″ Triple Stacked Box Tube Frame
• 3″ Thick Floor
• 3 1/4″ Thick Walls/Slides
• 1/4″ Thick Gelcoat Azdel Fiberglass w/Wood Backer
• 1/4″ Monsanto® Fome-Cor Vapor Barrier (Eliminates Condensation)
• Seamless, 1-Piece Rubber Roof
• Custom Painted Exterior w/Clear Coat
• Frameless Tinted Safety Glass Windows
• Residential 5 Duct Heating System w/6″ Ducting
• 17 1/2″ H-Rated Tires

Framing/Running Gear

• 17 1/2″ H-Rated Tires
• Heavy Duty Grease Bolt Shackles w/Bronze Bushing
• Kodiak® Automotive Disc Brakes
• Heavy Duty Axles
• Commercial Grade E-Z Lube® Hubs
• 15″ Triple Stacked Box Tube Frame
• 101″ Wide Body
• Industrial Hydraulic System for Jacks & Lower Level Slides
• Electric Bedroom Slide
• Slide Outs w/Select Push Button Controls
• Pinless Hydraulic Front Landing Jacks at 5 Degree Outboard Angle

Construction - Floor

• 3″ Thick Floor
• 14″ O.C. Floor Aluminum Floor Joists
• Screwed & Glued Joist Construction
• 5/8″ Tongue & Groove Plywood Flooring
• Residential Perimeter Heating
• Residential Rated R29 Insulation

Construction - Walls/Slides

• 3 1/4″ Thick Walls/Slides
• 16″ O.C. Stud Spacing
• Screwed & Glued Aluminum Stud Construction
• 1/4″ Monsanto® Fome-Cor Vapor Barrier (Eliminates Condensation)
• 1/4″ Thick Gelcoat Azdel Fiberglass w/Wood Backer
• Residential Rated R16 Insulation

Construction - Roof

• 16″ O.C. Rafter Spacing
• Residential Rated R25 Insulation
• 1/2″ Plywood Roof Overlayment
• Seamless, 1-Piece Rubber Roof
• Soft-Touch Vinyl Ceiling, Including Interior Slide-Out Ceilings

Exterior Features

• Straight Roof Line w/8′ Tall Interior Slide Out Height
• High Density Insulation
• Custom Painted Exterior w/Clear Coat
• Gelcoat Fiberglass Molded Caps
• Frameless Tinted Safety Glass Windows
• Five Exterior Security Lights
• Commercial LED Exterior Clearance Lights
• Amber LED Front Cap Turn Signal
• LED Docking Lights
• 78″ Entry Door
• Metal Slam Door Compartment Latches
• Extra Thick Compartment Doors w/Gas Struts
• Motion Sensor LED Light Switches for Basement
• Washable Storage Compartment Liner
• Custom Enlarged Control Center w/LED Lighting
• Lend-a-Hand Exterior Grab Handle
• Power Awning w/LED Lights & Aluminum Weather Shield
• Water Pump Switch at Outside Hookup Center

Systems/Tanks

• 50 Amp Service w/Detachable Cord
• 80 Amp 12 VDC Converter
• 100 Gal. Fresh Water Tank
• 75 Gal. Grey Water Tank w/Power Flush
• 50 Gal. Black Water Tank w/Power Flush
• SeeLevel Tank Monitoring System on All Tanks
• Residential Type 1/2″ Water Lines
• Exclusive Copper Water Manifold w/Individual Shut-Off Valves
• Whole House Water Filtration System
• Multi-Switch Water Bypass System
• Slide Out Propane Tray w/Dual 40 Lb. Tanks
• 12 VDC Battery on Pull Out Tray
• 40,000 BTU Furnace w/Custom Plenum
• Residential 5 Duct Heating System w/6″ Ducting
• Forced Heat Ducting to Tanks/Water System
• Fully Ducted A/C System w/Cold Air Return
• 15,000 BTU Low-Profile Main A/C
• Wired & Ducted Bedroom A/C w/Cold Air Return
• Third A/C Prep (All Tandem Axles)
• Double 15,000 BTU Low-Profile A/Cs (Triple 15,000 BTU Low Profile A/Cs on MSEX)
• Solar Prep
• HD Roof Satellite Prep for Dual DVR Receivers
• HD Ground Satellite & Cable Prep
• Power HD TV Antenna

Interior - Living Room/Dinette

• Hand Laid Vinyl Plank Tile
• Residential Rebond Carpet Pad
• Plush Residential High Durability Carpet
• Toffee Grove /Chai Hickory/Italian White Solid Hardwood Cabinetry
• Solid Hardwood Fascia Trim Around Slide Outs w/LED Lights
• Solid Hardwood Cabinet Stiles (Pocket Drilled/Screwed)
• Concealed Cabinet Door Hinges
• Raised Panel Cabinetry
• Soft-Close Full Extension Metal Drawer Guides
• LED Interior Ceiling Lighting on Dimmer Switches
• Decorative Wall Clock (Most Models)
• Utility Closet w/Coat Storage & Centralized Control Station (Most Models)
• Interior Ceiling Fan (Most Models)

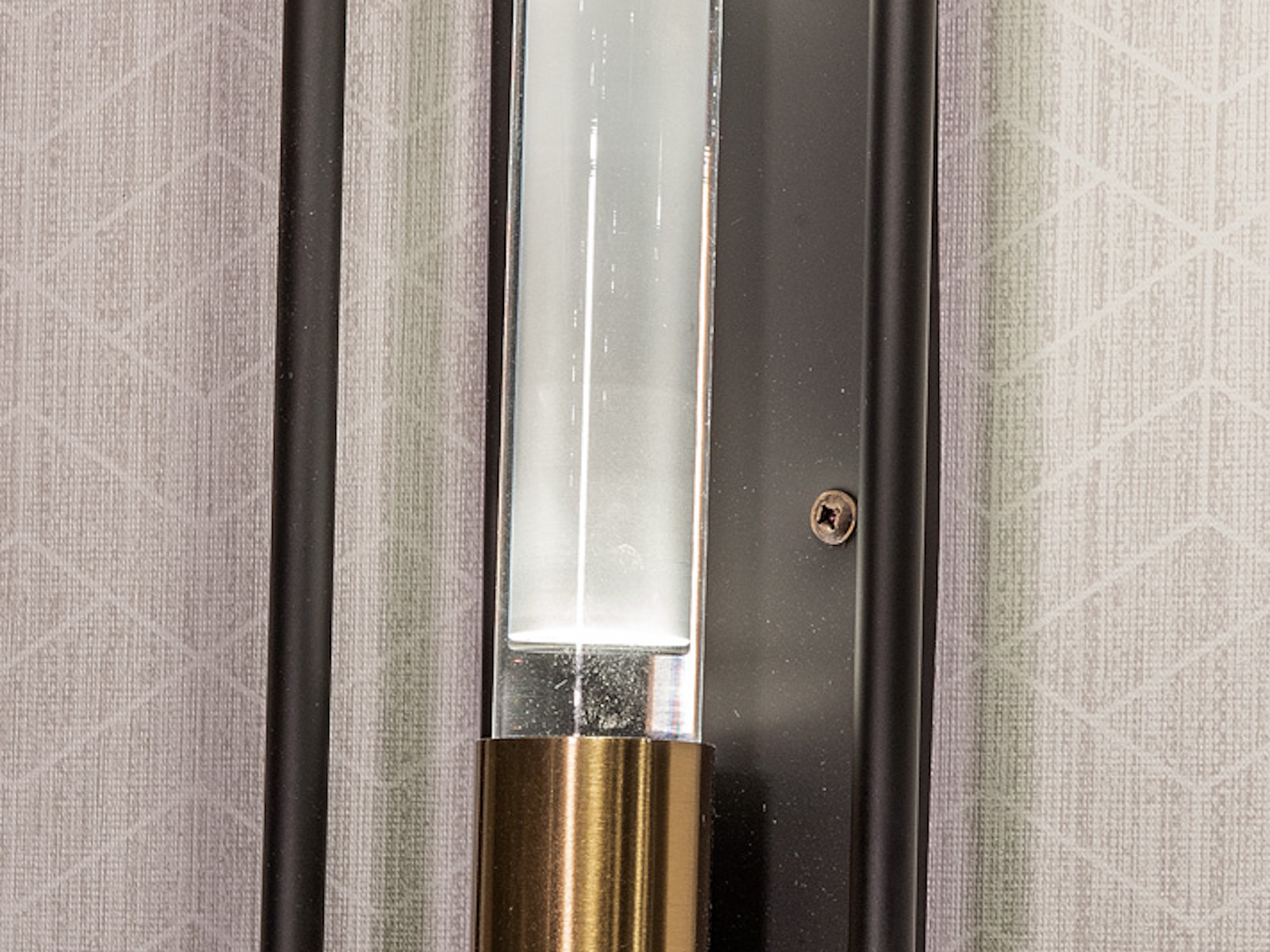

• Decorative 12V Light Sconces

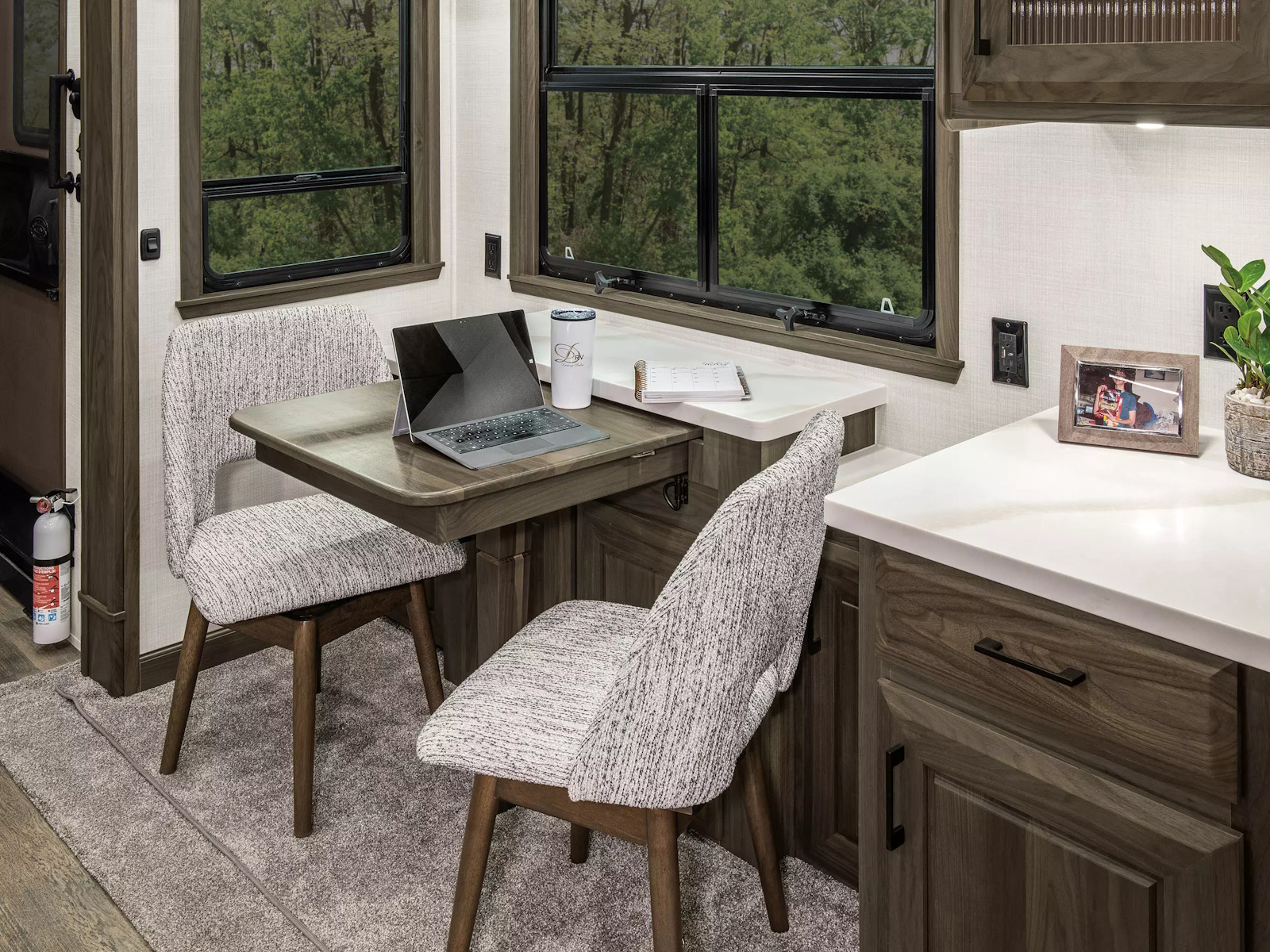

• Custom Hardwood Dinette Buffet w/Solid Surface Top
• Dinette Table w/Hidden Leaf Extension
• (2) Hardwood Dinette Chairs w/Fabric Accent
• Crown Molding Throughout
• HD Wiring Throughout
• Residential Sofa w/Hide-a-Bed (Most Models)
• Residential Theatre Seating w/Center Console (Side Entertainment Models)
• Residential Recliners (Rear Entertainment Models)

Interior - Gourmet Kitchen

• 20 Cu. Ft. Residential Stainless Steel French Door Refrigerator
• Stainless Steel Convection/Microwave
• Stainless Steel Residential Style Gas Oven
• Stainless Steel Residential Dishwasher
• Pull-Out 13 Gal. Garbage Can (Most Models)
• Deep Double Bowl Stainless Steel Sink w/Sink Covers
• Residential Kitchen Faucet
• Custom Hand Laid Tile Backsplash
• High Polished Solid Surface Countertops
• Custom Appliance Garage w/Pull-Out Tray (Most Models)
• Custom Over the Island Accent Light
• Lighted Pantries & Kitchen/Bathroom Toe Kicks

Interior - Master Bath/Hallway

• Hardwood Steps with Woven Inlay
• Hand Laid Vinyl Plank in Hallway/Bathroom
• No Carpet in Hallway
• Washer/Dryer Prep
• Heat & A/C Ducting in Bathroom
• Powered Fan in Bathroom (Exhaust Only)
• Sky-Light Over Shower w/LED Pot Light
• Porcelain Toilet w/Water Saver Spray
• Fiberglass Shower Pan w/Full Height Decorative Shower Walls
